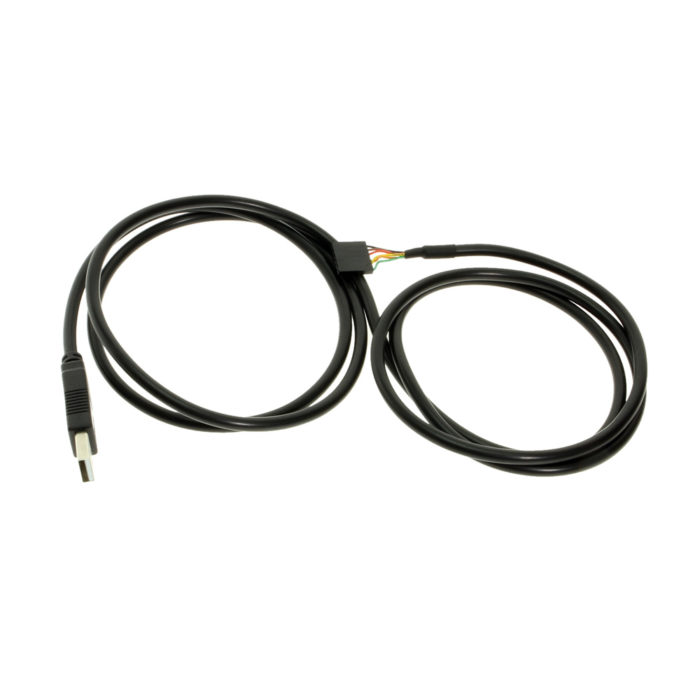

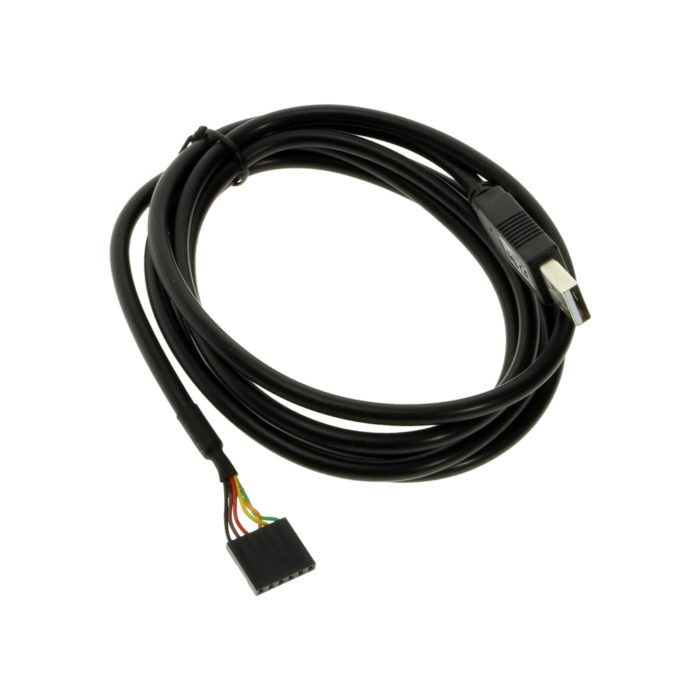

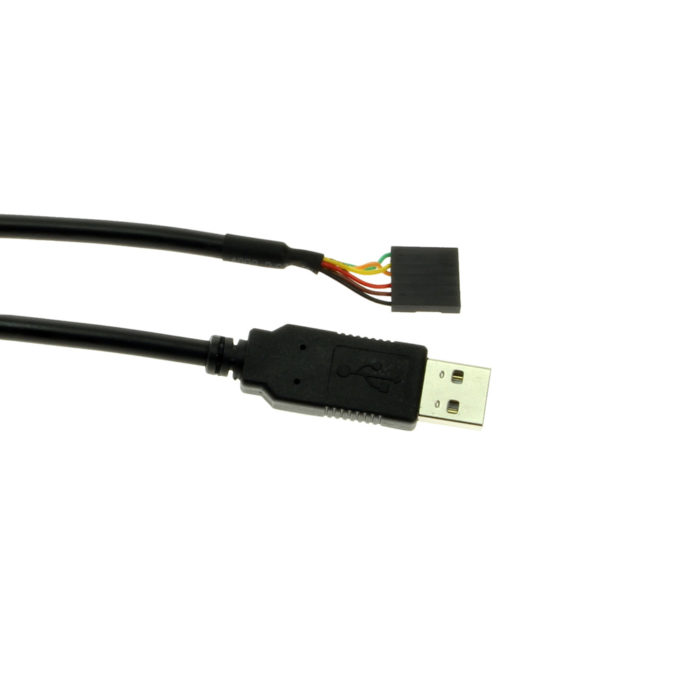

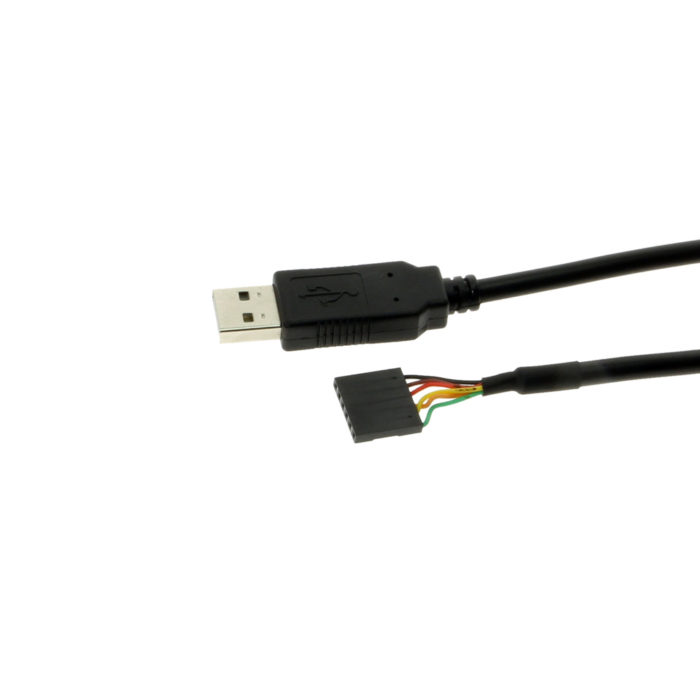

USB to TTL 5V converter cable with 6-Pin Header
USB to TTL 5V converter cable with a 6-pin header connector incorporates FTDI’s FT232RQ chip handling all signaling and protocols.
The cables 232R FTDI interface provides a simple and fast way to connector to devices with TTL level serial interfaces.
The converter cable’s electronics are molded into the USB end of the cable providing baud rate speeds from 300 baud to 3M baud and 3.3 volts power.
5V USB to TTL cable Features
- Incorporates FTDI FT232RQ chip set for signal and protocol processing
- 6ft. long cable length
- USB 2.0 compliant enabling 300 baud up to 3M baud
- 6-pin header connector providing 5 volts of power
- Provides standard TTL pin out: GND (Blk/1), CTS (Brown/2), VCC(red/3), TXD (orange/4), RXD (yellow/5),RTS (Green/6)
