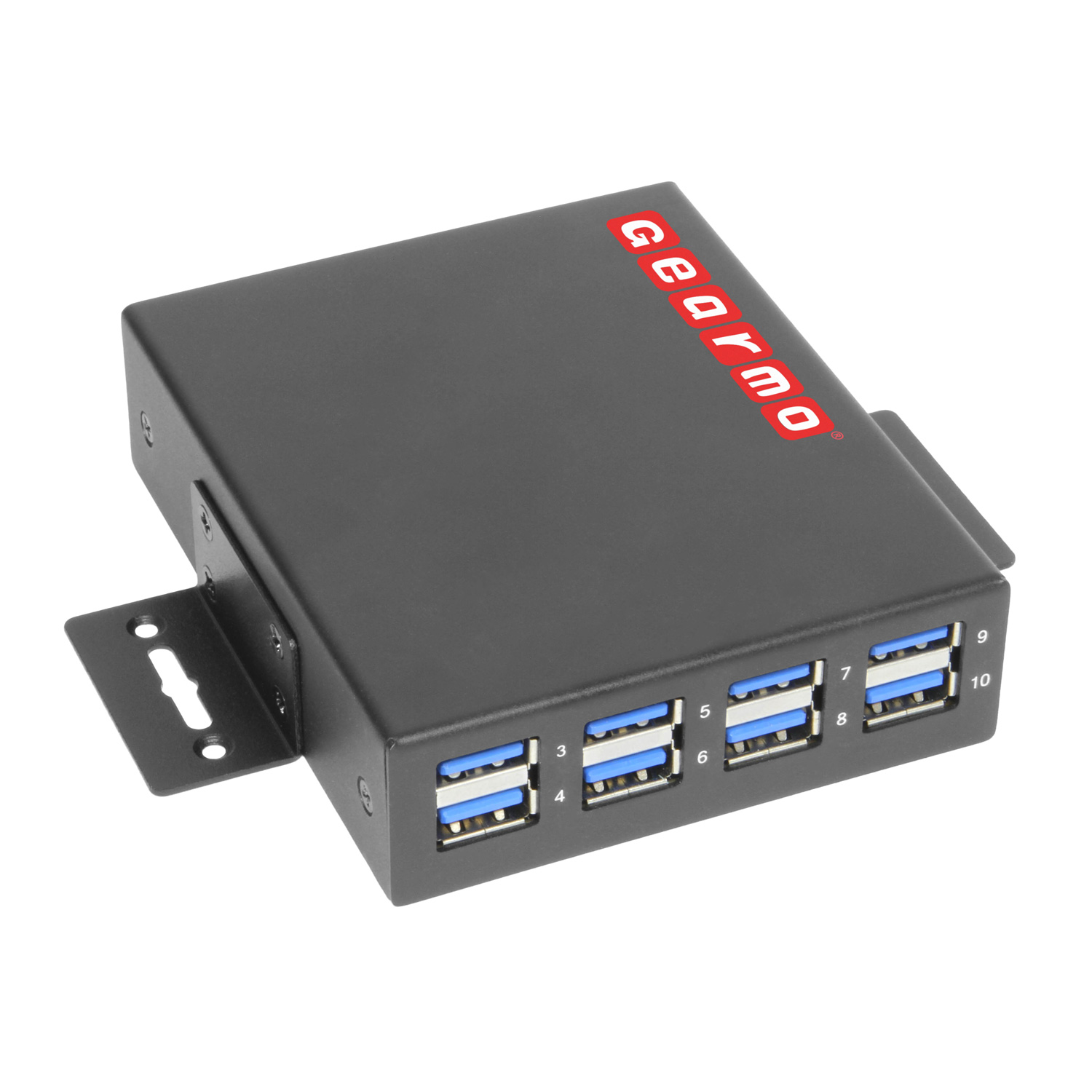

10-Port USB 3.2 Gen 1 Industrial Metal Hub w/15KV ESD Protection

Gearmo USB 3.2 Gen 1 10 Port Rugged Hub with Power Adapter

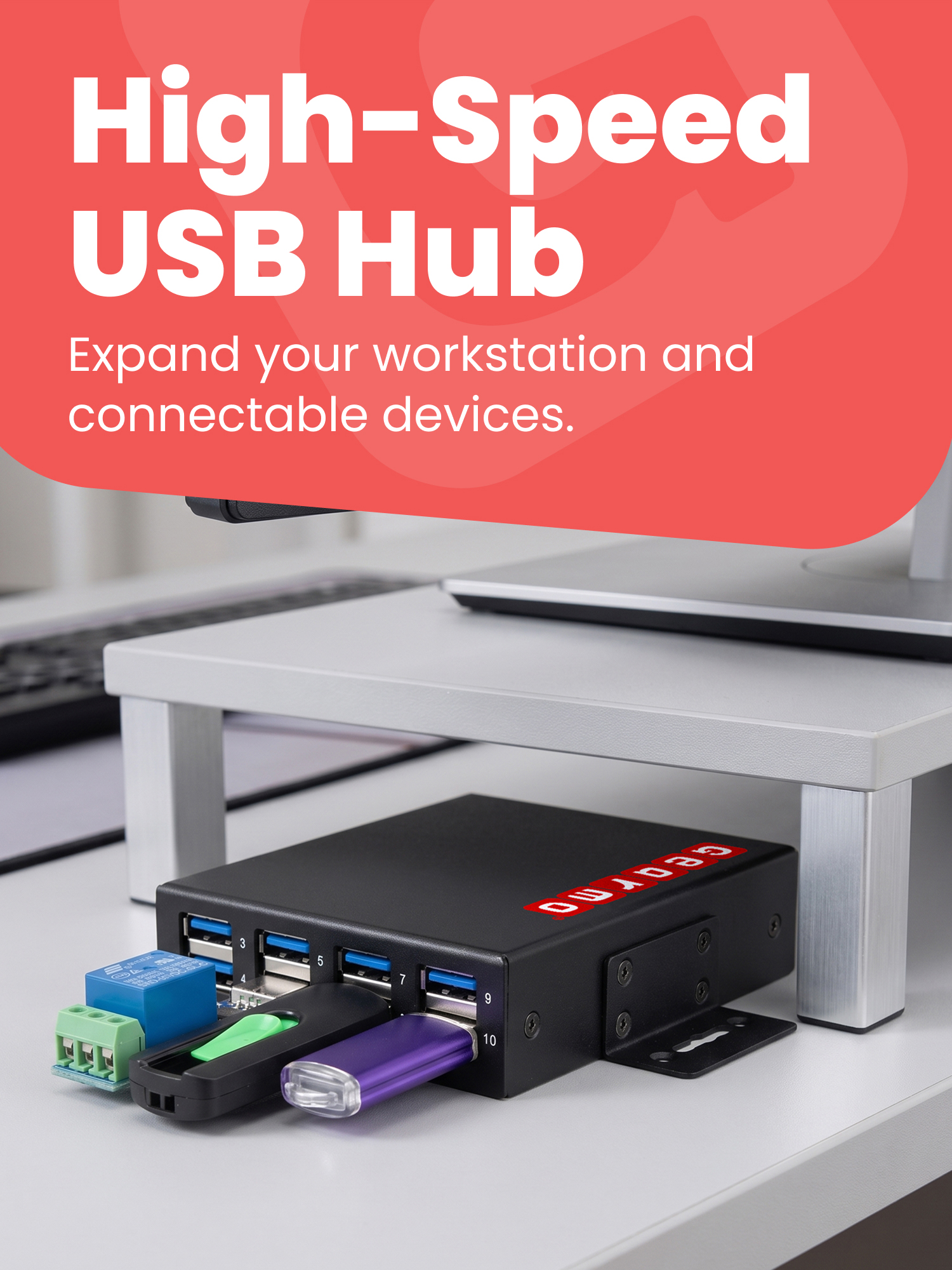

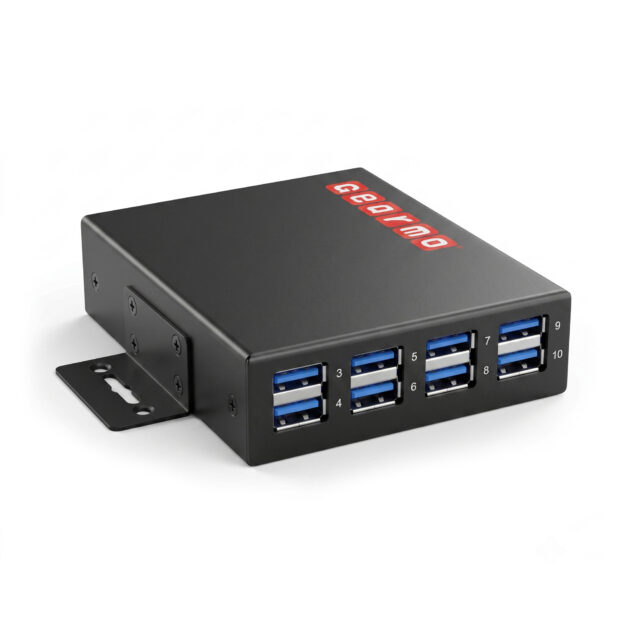

The GM-10AHU3-PE Gearmo USB 3.2 Gen 1 10 port hub is an industrial metal hub featuring eight data ports are conveniently located on the front facing panel. While 2 more downstream ports, terminal block, and DC barrel power connections are located on the rear. The GM-10AHU3-PE USB 3.2 Gen 1 10 port hub includes mounting option hardware for both surface and DIN-Rail mounting. It is compliant with USB 3.2 Gen 1 standards, data speeds up to 5Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.

The GM-10AHU3-PE includes a power adapter to handle the power needed for industrial applications. The USB 3.0 10 port Hub has multiple mounting options available depending on its usage and can be mounted via mounting brackets or Din Rail clip included. The GM-10AHU3-PE USB 3.0 hub includes all necessary hardware to securely mount it where its applications are needed.

Hub Features

• Compliant with Universal Serial Bus 3.2 Gen 1 Specifications
• Industrial-grade, rugged metal housing design
• Adds 10 USB 3.2 Gen 1 super-speed ports
• Redundant 9-24V DC power input

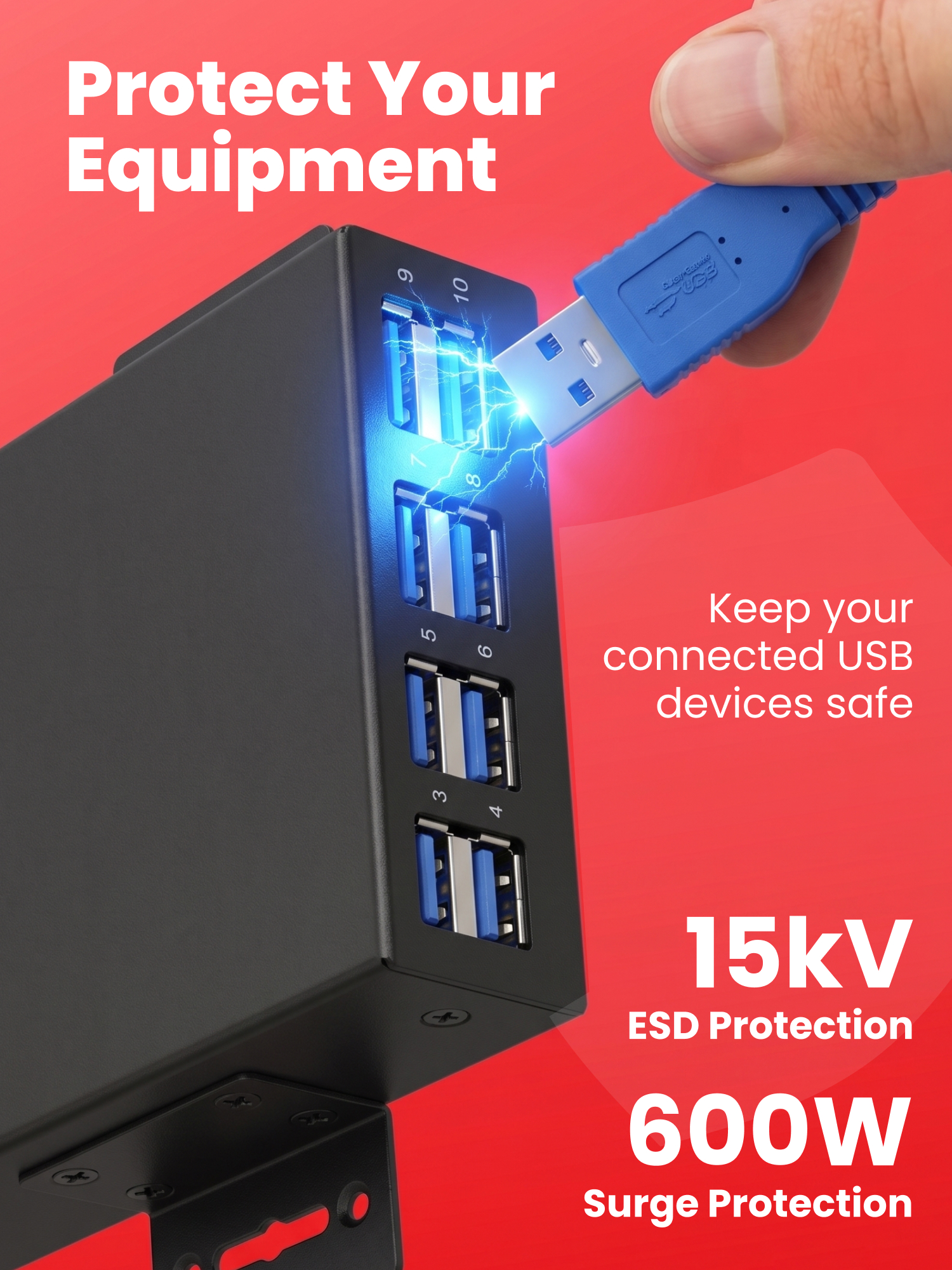

• 15KV ESD USB Interface protection
• Power input surge protection to 600W for each port
• Over-current detection and protection circuit design

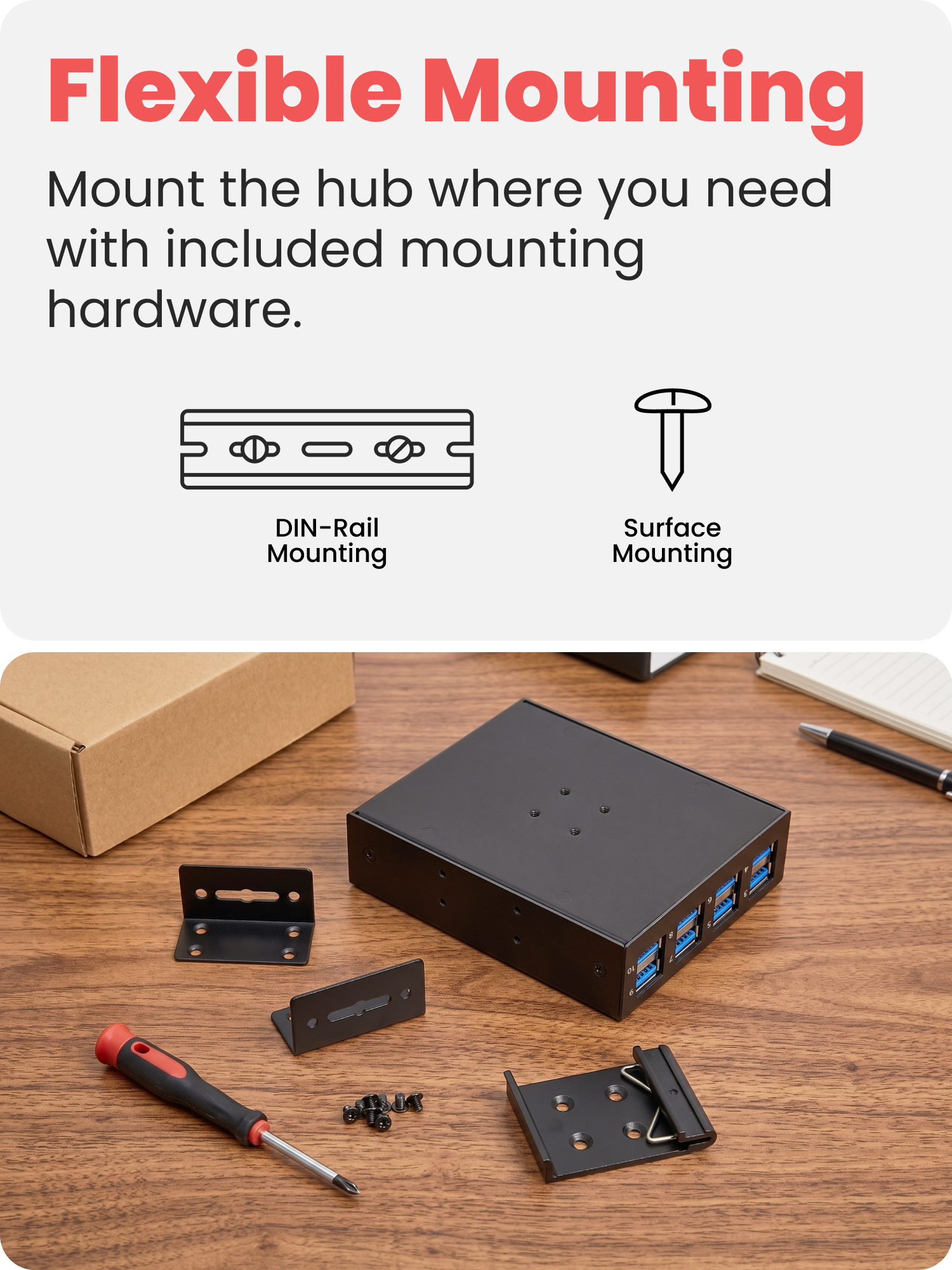

• Wall and DIN Rail mount support
• Item Dimensions: 4.1 x 3.4 x 1.1 in.

Technical Specifications

• Chipset: VL817-Q7S chipset
• Compliant with Universal Serial Bus 3.0 Specification
• Maximum data transfer rate: 5Gbps
• Surge Protection: 600W (max)
• Metal housing with mounting mechanism
• Charging Protocols: SDP, CDP, DCP, Apple 2.4A

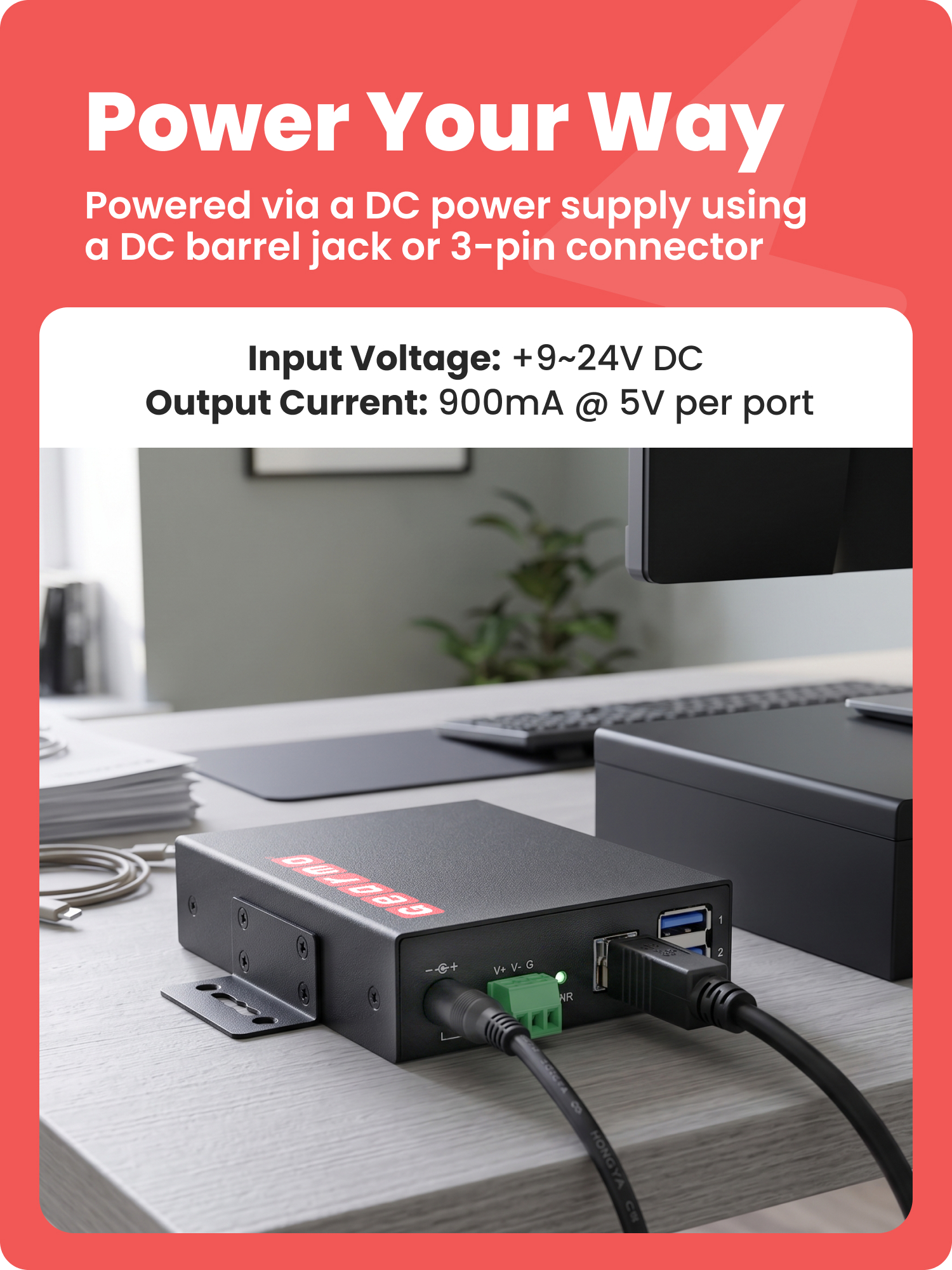

• Input Voltage: 9~24V DC
• Max Power: 57W
• Max Current: 2.4A

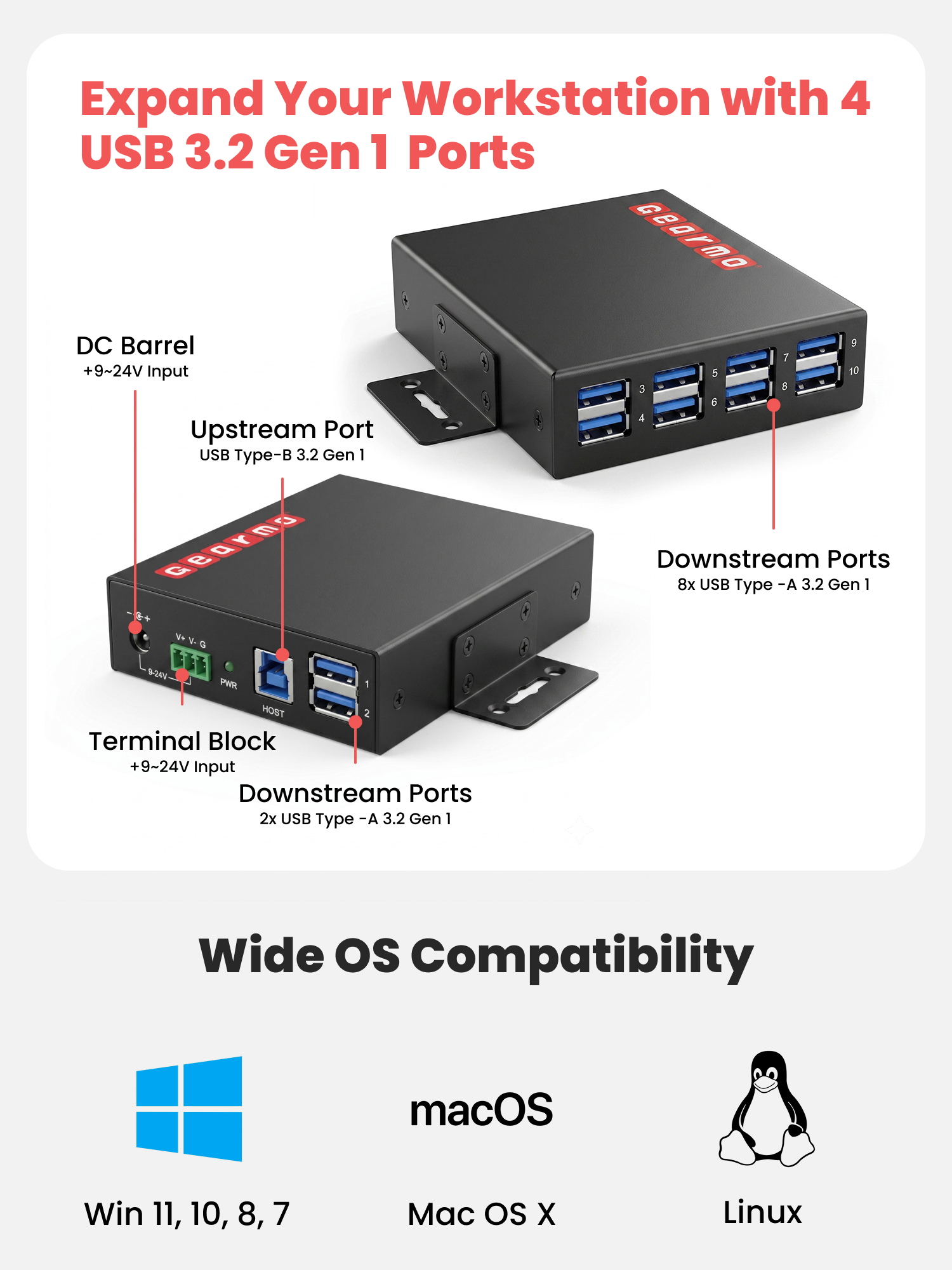

• Interfaces/Ports:
  • Input: 1, 9-pin, USB 3.0, Type B, Female
  • Input: 1, Terminal block (3-Wire), Power
  • Input: 1, DC Power Adapter Jack
  • Output: 10, 9-pin, USB 3.0, Type A, Female

OS Support

• Windows XP, Windows 7, Windows 8, Windows 10, Windows 11
• Mac OS X
• Linux

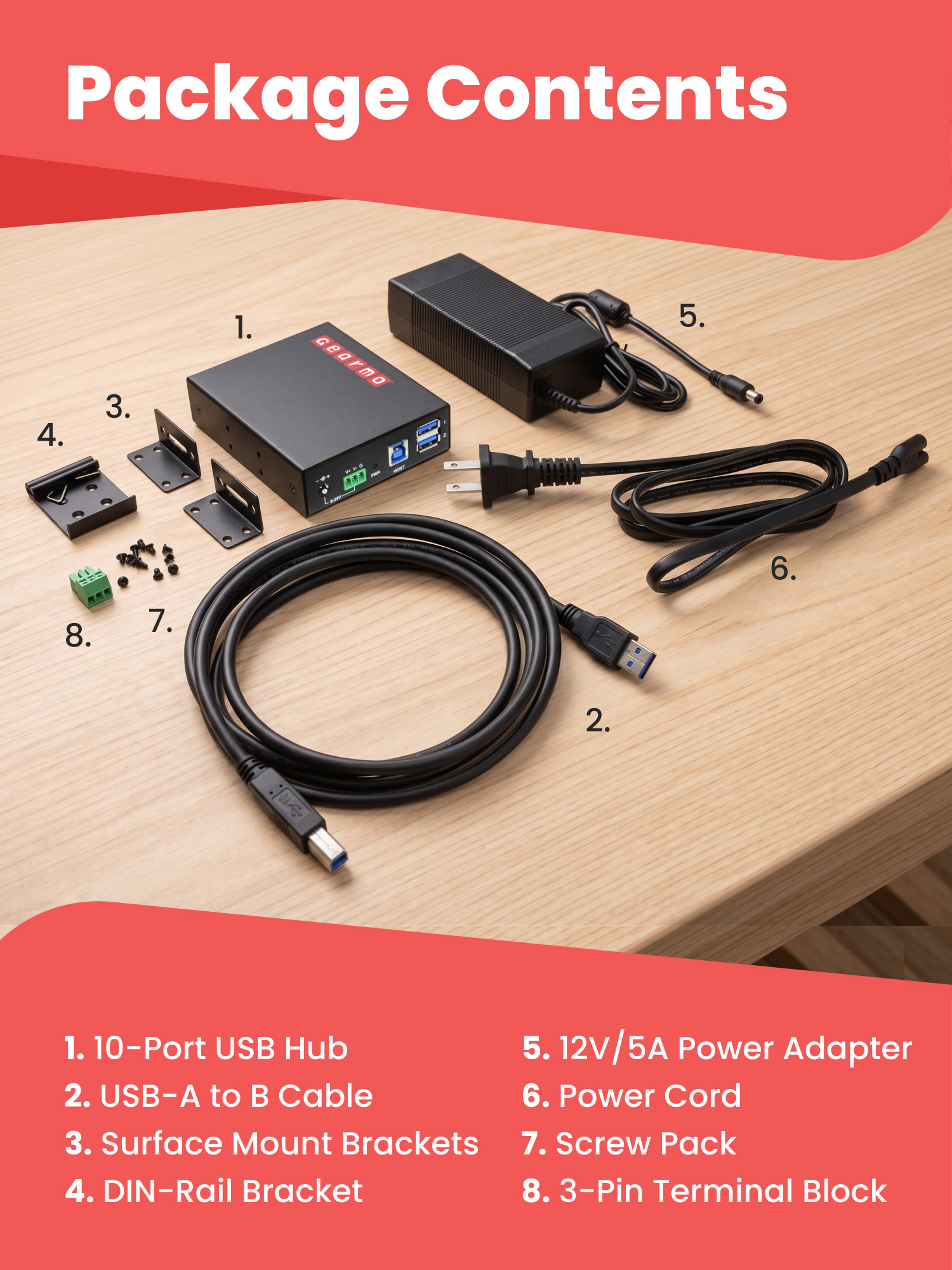

In the Box

• Gearmo USB 3.2 Gen 1 industrial 10 Port Hub
• 2m USB 3.2 Gen 1 A to B cable
• 12V / 5A Power Adapter and Cord
• Surface Mounting Brackets
• DIN Rail Clip
• Screw Pack
• 3-wire Terminal power connector
• User Manual
