4-Port USB 3.2 Gen 2 Type-C Slim Industrial Metal Hub w/15KV ESD Protection & Power Adapter Included
$99.95

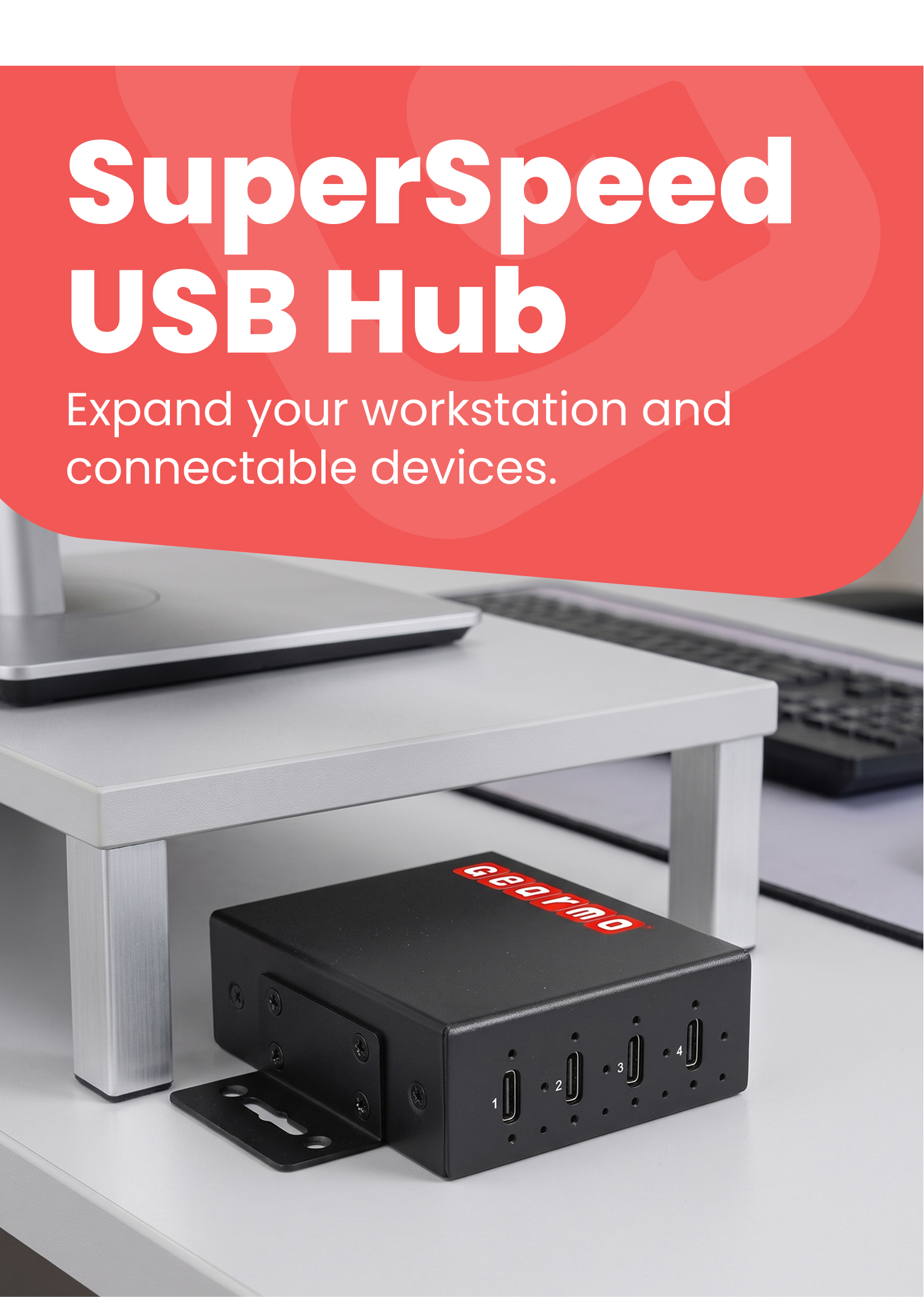

The new Gearmo 4 Port USB 3.2 Gen 2 Type-C slim hub is designed to be rugged and Mountable with its industrial-grade shell. All ports and connections are easily accessible on the front of the hub, making it easy to connect to your data.
- Adds 4 USB 3.2 Gen 2 10Gbps compliant USB-C ports
- Easily mounts to a DIN Rail or flat surface
- Rugged Industrial-grade chassis for harsh environments
- Clearly labeled ports numbers and power connections
Product Documents

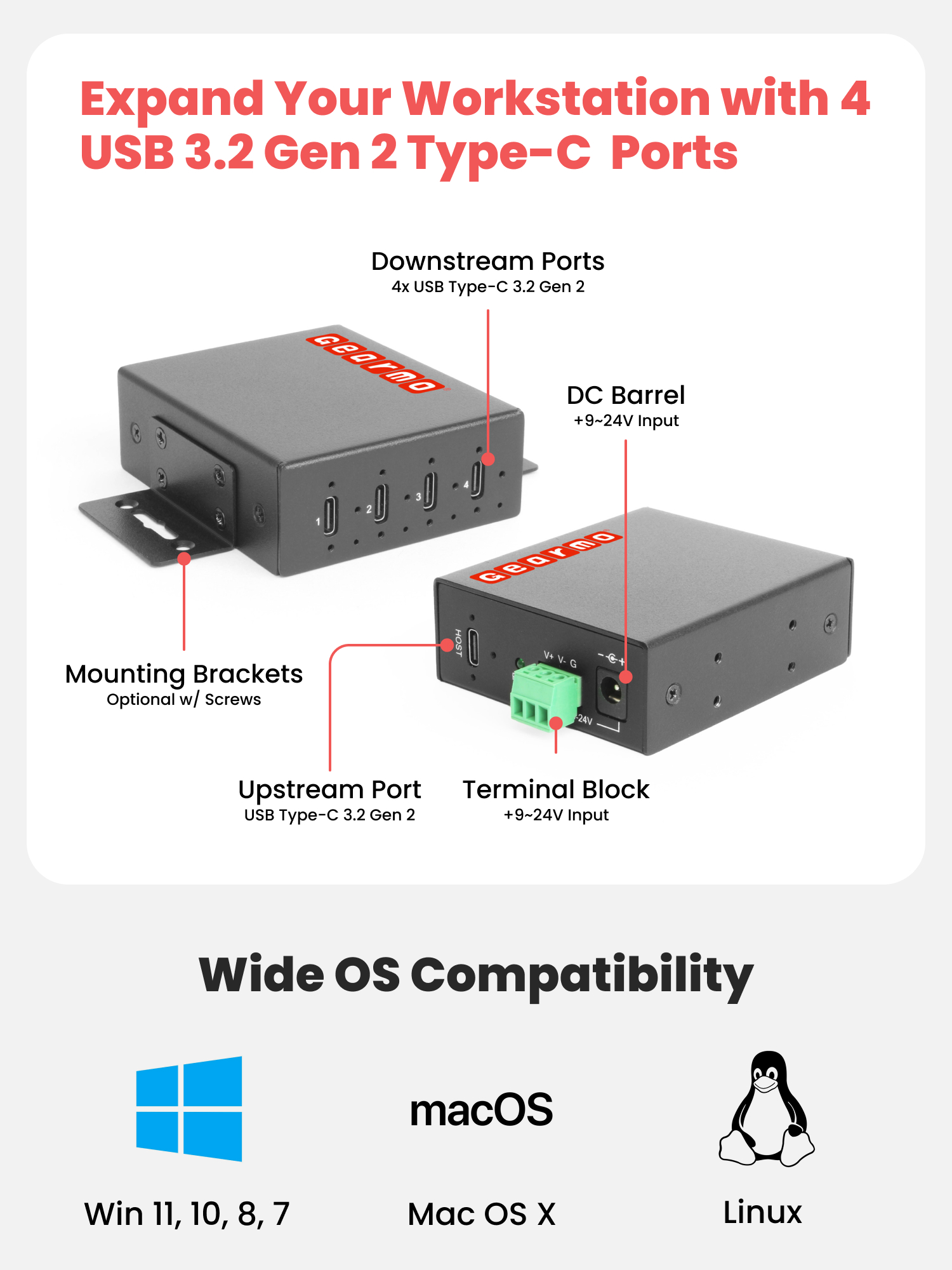

The GM-CC4XUH-M Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 4 downstream USB Type-C ports. All downstream ports are conveniently located on the front facing panel for ease-of-access. The GM-CC4XUH-M USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 3.0, 2.0 and 1.1. Its compact 1" tall footprint makes it easy to tuck into tight spaces, and the included power supply makes installation a breeze in just about any setup.
Gearmo USB 3.2 Gen 2 Slim Hub Features
- Compliant with Universal Serial Bus 3.2 Gen 2 Specifications
- Industrial-grade, rugged metal housing design

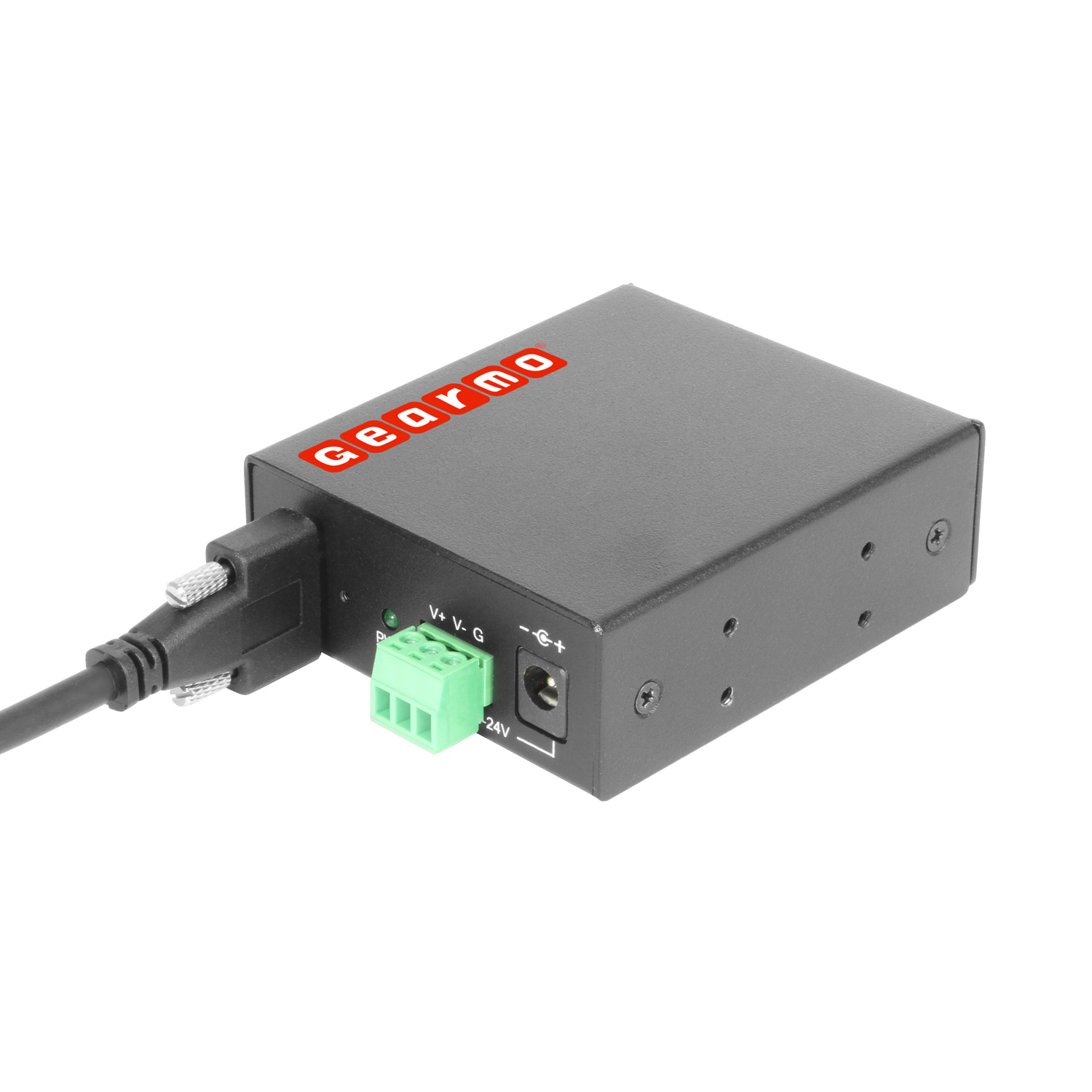

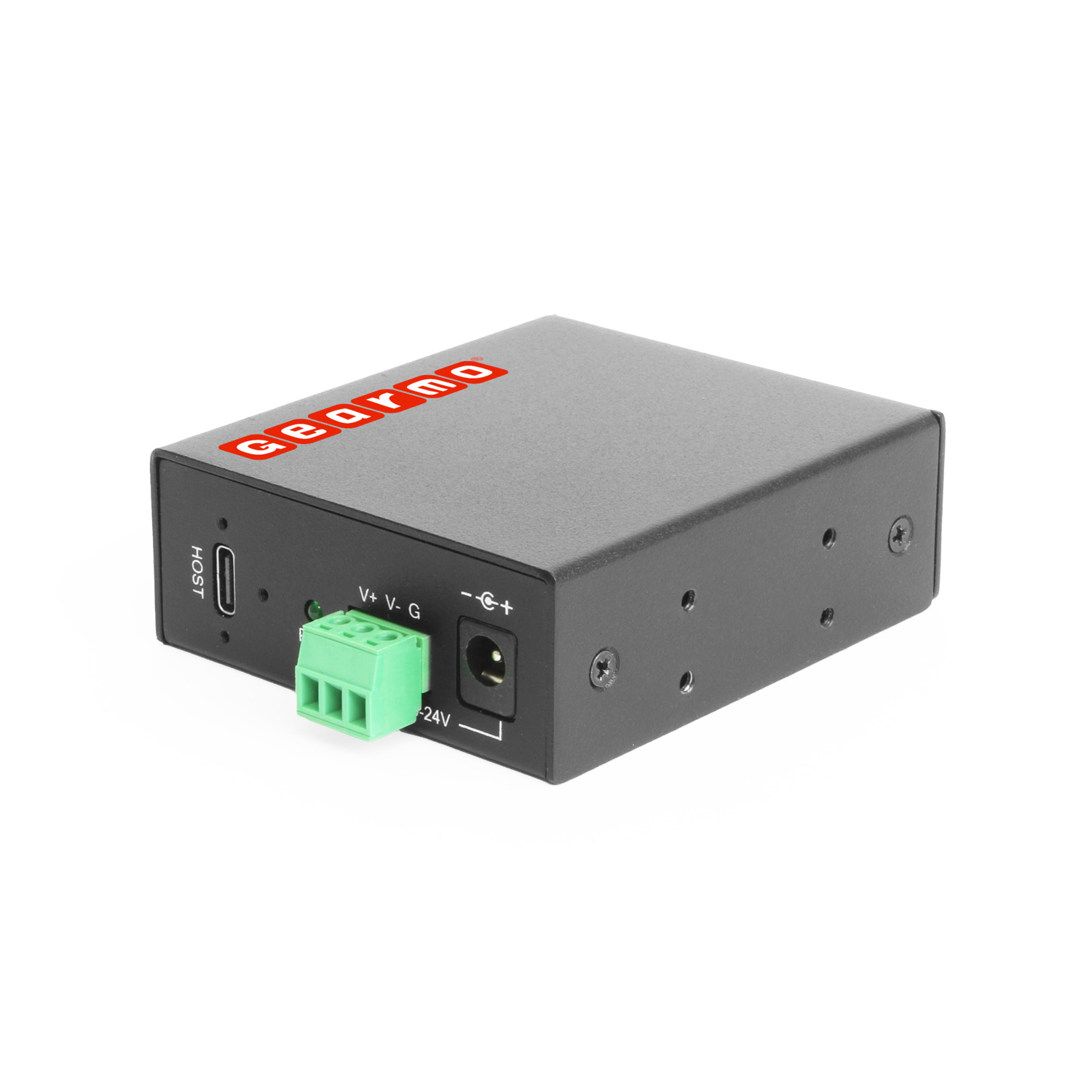

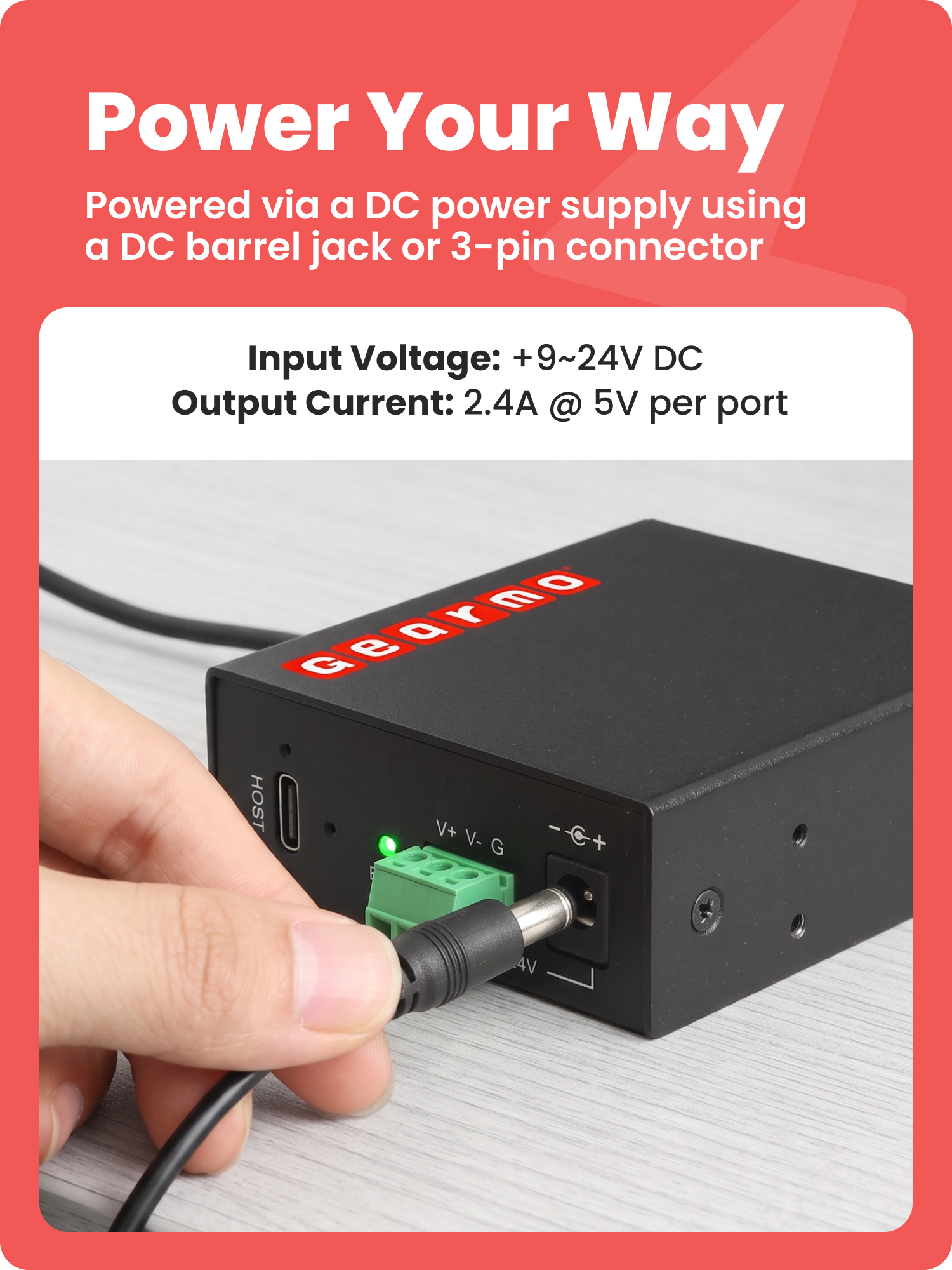

- Redundant 9-24V DC power input
- Included 12 Volt / 4 Amp power supply
- Output current: 2.4A per port (Max), total 48W max
- 15KV ESD USB Interface protection
- Power input surge protection to 600W for each port
- Over-current detection and protection circuit design
- Single and dual screw-lock compatible on all downstream and upstream ports

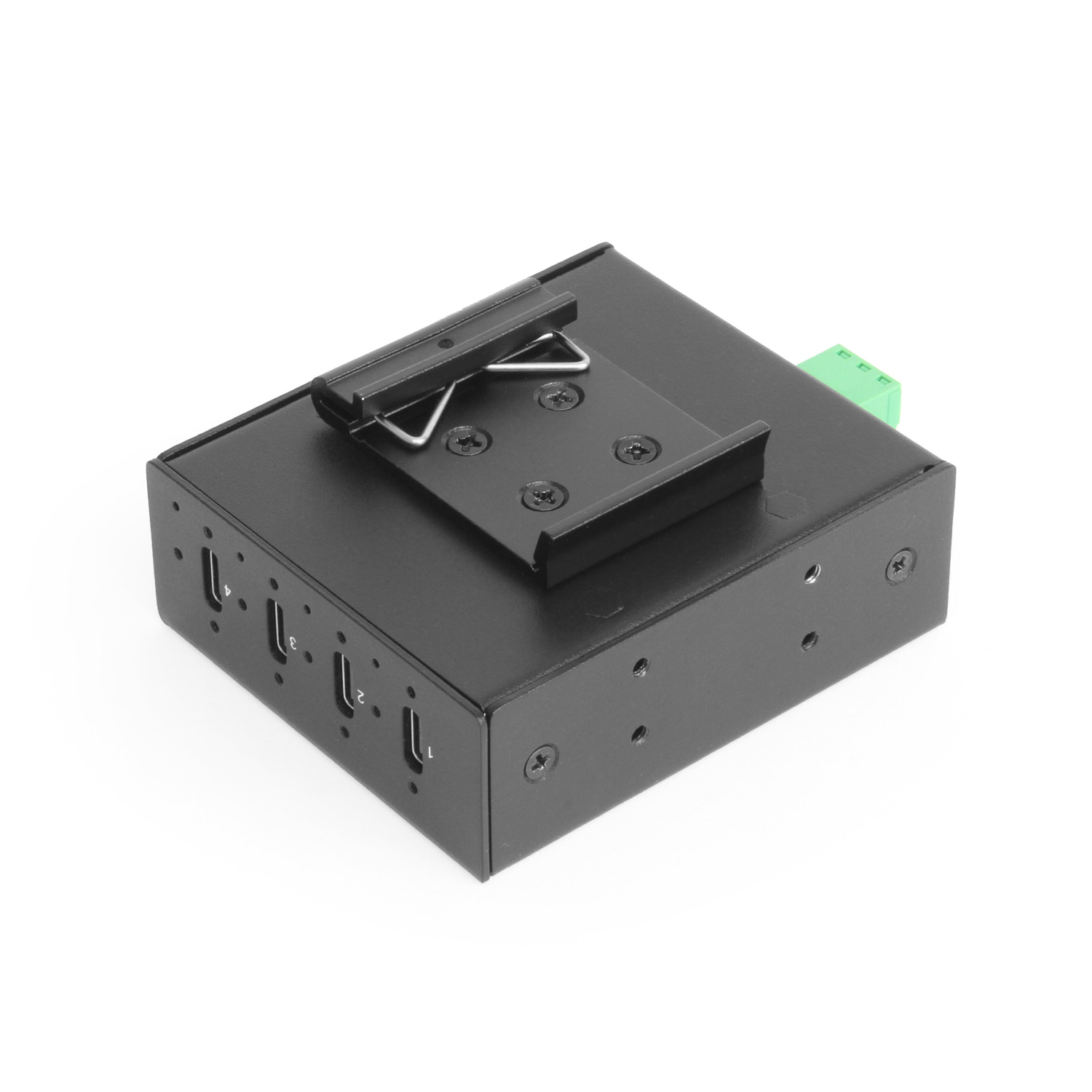

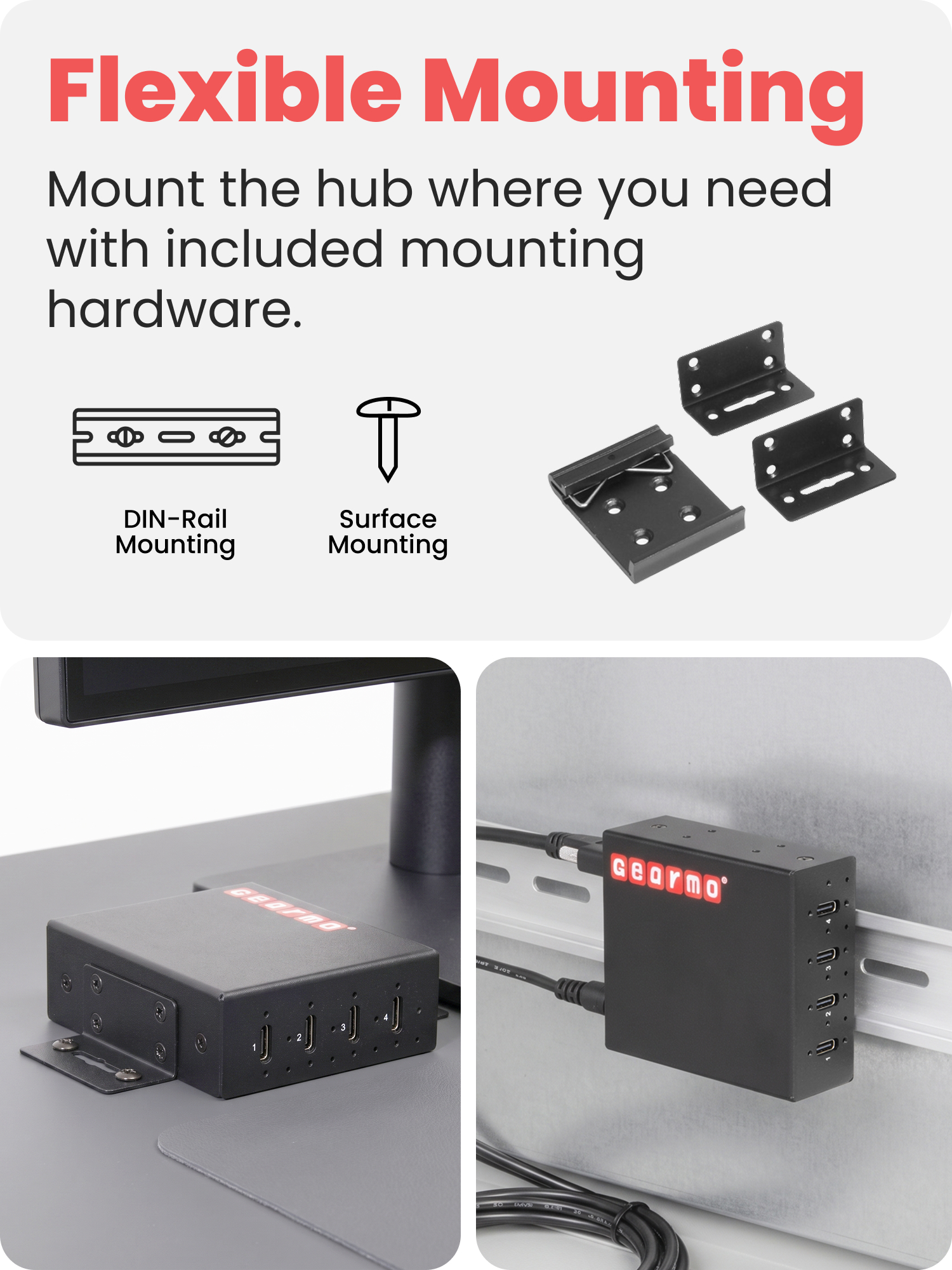

- Wall and DIN Rail mount support
- Chipset: VL822P-Q7

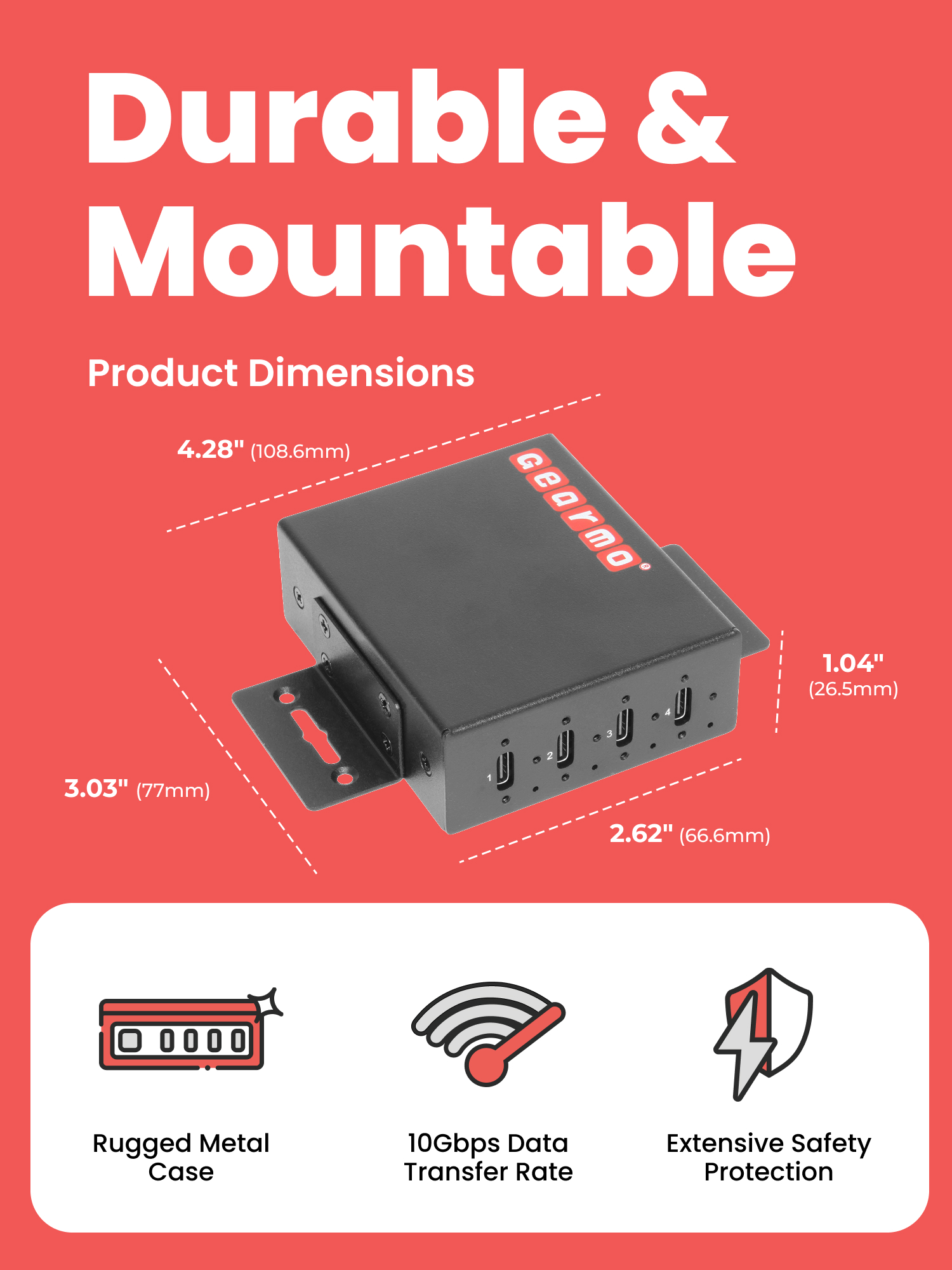

- Item Dimensions: 3.00 × 2.55 × 1.00 in.
- Approvals: CE, FCC, POP, REACH, RoHS
Operating system support
- Windows XP, Windows 7, Windows 8, Windows 10, Windows 11
- Mac OS X
- Linux

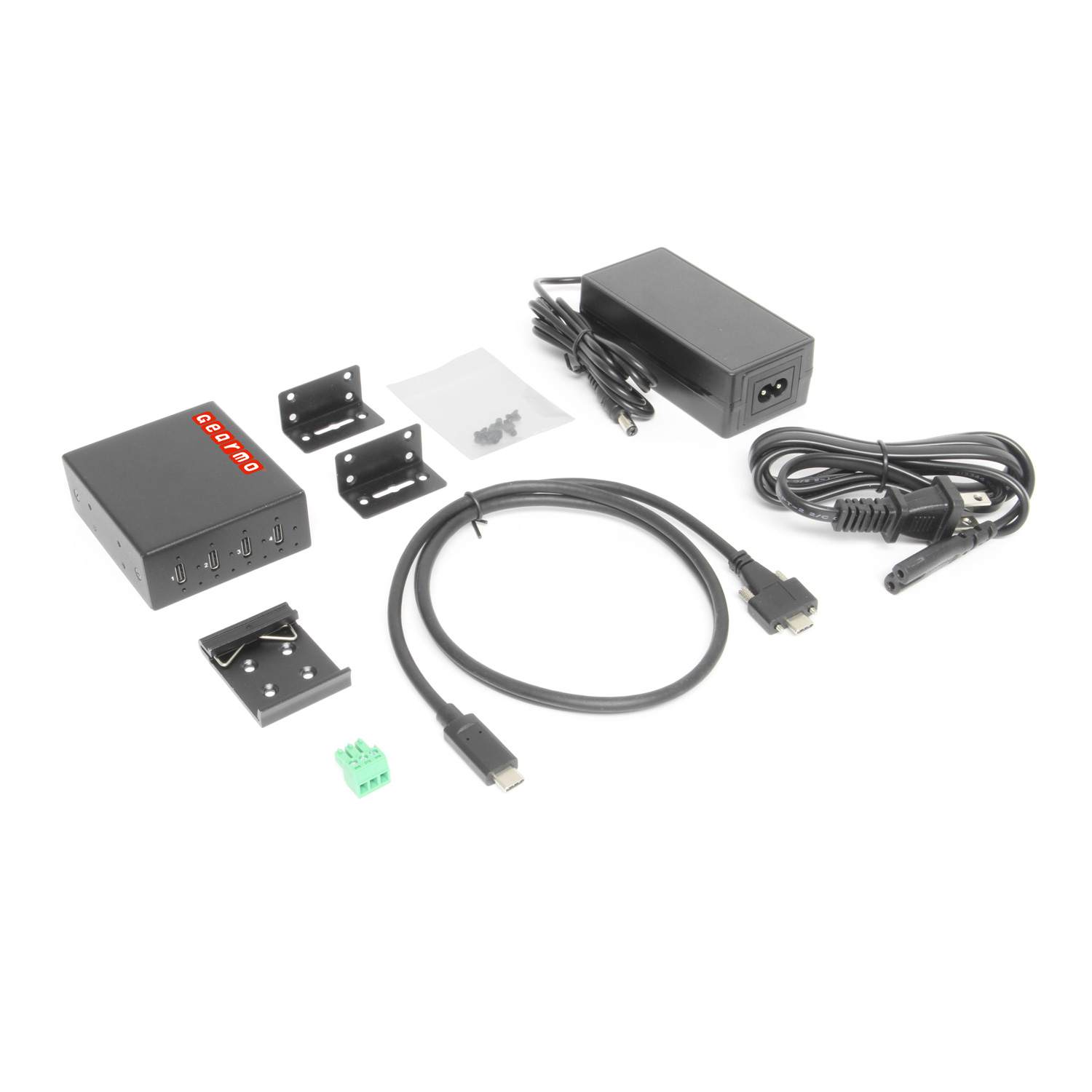

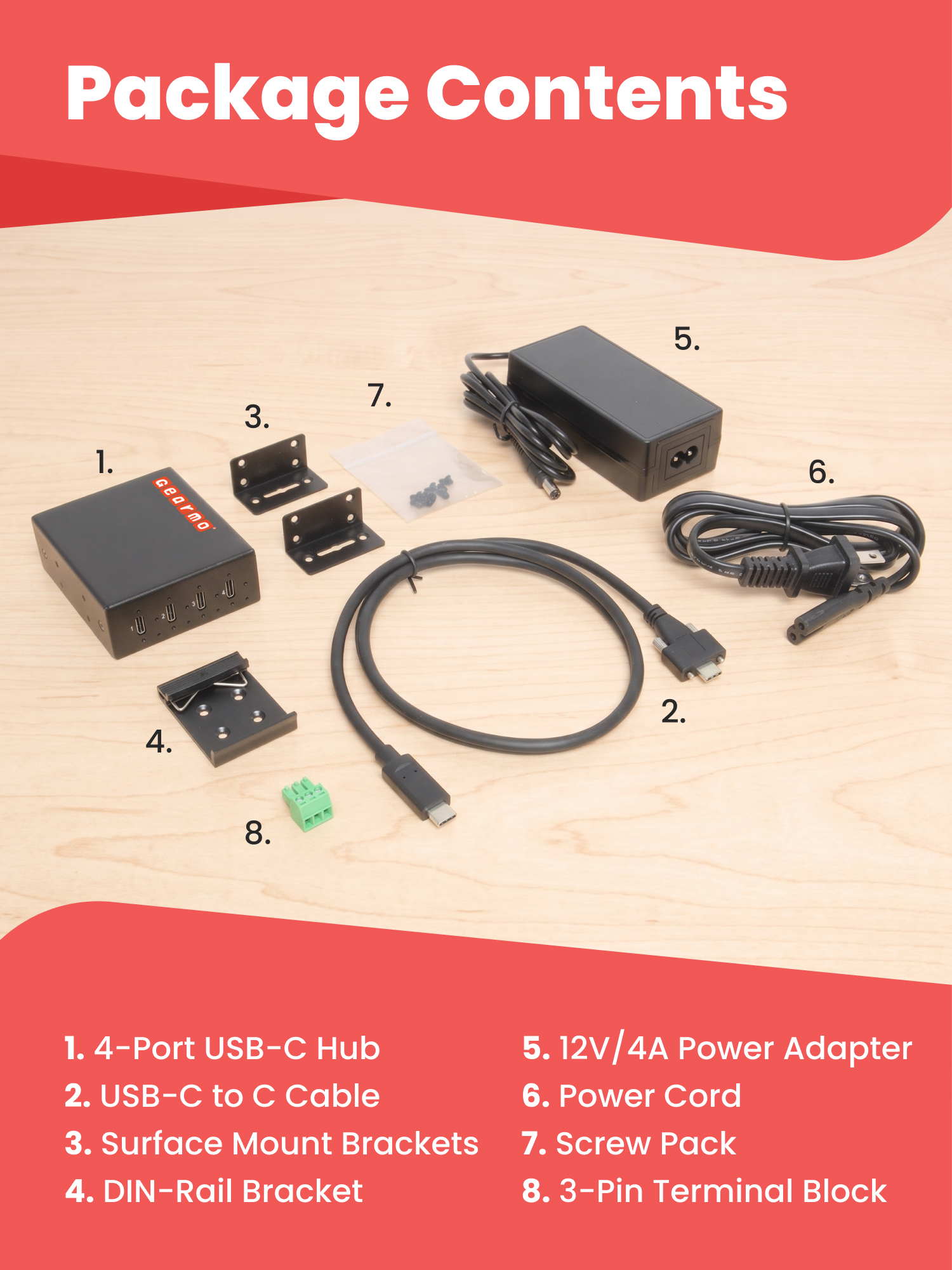

In the Box
- Gearmo USB 3.2 Gen 1 Industrial 4 Port Type-C Hub
- 12V/4A Power Supply & Cord
- DIN Rail Clip
- Surface Mounting Brackets
- Mounting Screws
- 3-pin Terminal Power Connector
- 6ft. USB 3.2 Gen 2 Type-C to C Dual Screw Lock Cable
Safety & Compliance Certifications
The GM-CC4XUH-M has been rigorously tested to meet the highest international safety standards. Our comprehensive testing ensures you can rely on the device in even the most demanding automotive, industrial, and commercial applications.
| Standard | Status | Remarks |
|---|---|---|
 * |
✓ Compliant | EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
 |
✓ Compliant | EC/1907/2006 – 250 SVHC List 06/25/2025 |
 |
✓ Compliant | Conforms to RoHS Legislation 2011/65/EU + (EU) 2015/863 |
*Passing a test report does not constitute certification, listing, or product registration. Test Report Available – Certification Required for End Product
Additional information
| Weight | 1.34 lbs |
|---|---|
| Dimensions | 7.25 × 5.75 × 2.00 in |
| UPC | 045079165267 |
| Material | Steel |
| Interface | USB 3.0 |
| Color | Black |
| Operating Temperature | 0 – 50°C (32 – 122°F) |
| Supported OS | |
| Downstream Ports | 4 USB Type-C Ports |
| ESD Protection | 15kV |
| Item Dimensions | 3.00 × 2.55 × 1.00 in. |
| Chip Set | |
| Certifications | CE, FCC, POP, REACH, RoHS |
| Country of Origin | China |
| Input Voltage | 9~24V DC |
| LED Indicators | Power |
| USB Specification | USB 3.2 Gen 2 |
| Power Source | 3-Pin Terminal Block, DC Barrel |
