USB C PD 50W Power Dock for Notebooks w/Built-In HDMI Output

$87.95

50W Notebook Power Dock Adapter with Multi-Port Functions

Power your USB-C notebook with this new Gearmo 50W Notebook power adapter. The USB-C PD adapter is a multi-function device that supports powering notebooks, 2 port USB-A 3.1 data hub, USB-C battery charger, and HDMI video output. Replace your older USB-C charging block with this smaller, versatile USB-C PD notebook adapter!

  • 100/240VAC Universal AC input
  • HDMI 1.4 / HDMI A type receptacle, Supports up to 192kHz audio frame rate and up to 24-bit audio
  • (up-stream) USB 3.1 Gen1, type C, PD – 5 output voltage levels supported
  • (down-stream) USB3.1 Gen1, type A x 2, USB 3.1 Gen1 type C x 1, with individual output 5V/1.5A, and USB IF BC1.2 fast charging supported

Product Documents

In stock

Purchase from Retailer

Model #: GM-PDU31CNA Categories: , , , , ,

Didn't Find What You Were Looking For? Support

Description

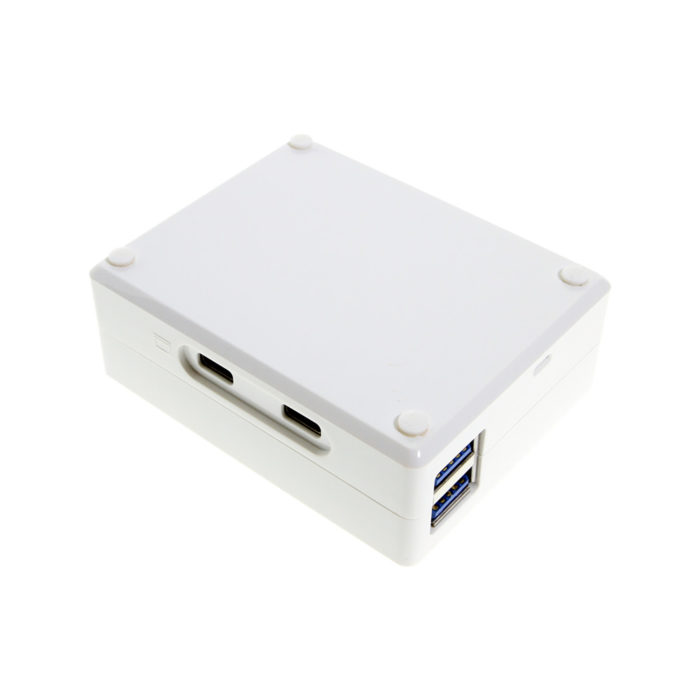

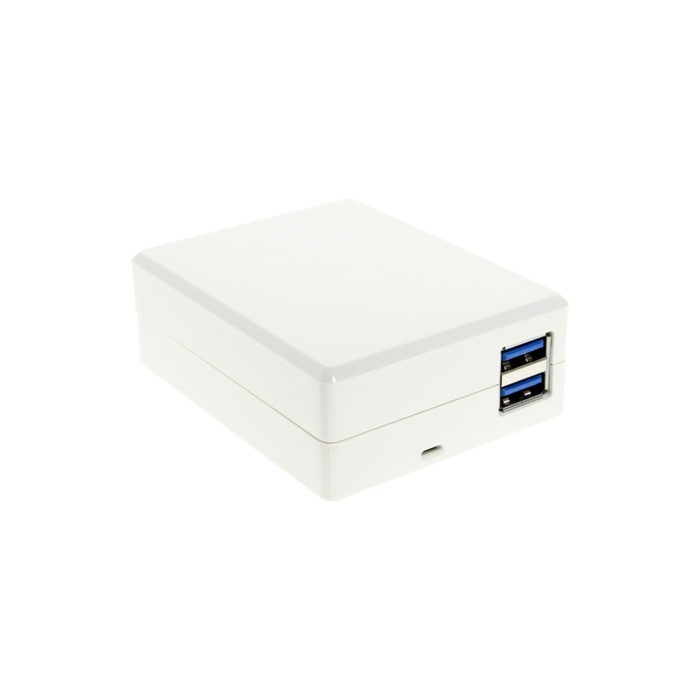

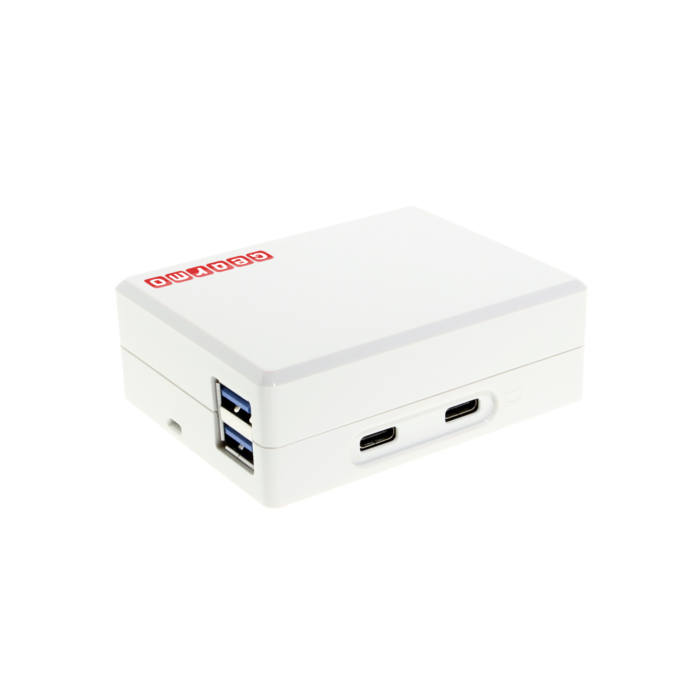

USB-C PD 50W Notebook Portable Power Dock Adapter/Charger

Gearmo’s USB-C PD Notebook Power Dock adapter replaces your existing bulky power block for your notebook computer. It works with any notebook that uses a type-C port connection for its power delivery method.

This USB-C PD notebook power dock is a multi functional adapter with charging capability. It can be used as a USB 3.1 Gen1 two port hub through its USB-A ports, and a USB 3.1 Gen1 Type-C port. All with up to 5Gbps data transmission. The adapter also allows for an HDMI connection through its HDMI A Type output port. Power is supplied from a 100V~240V AC wall outlet.

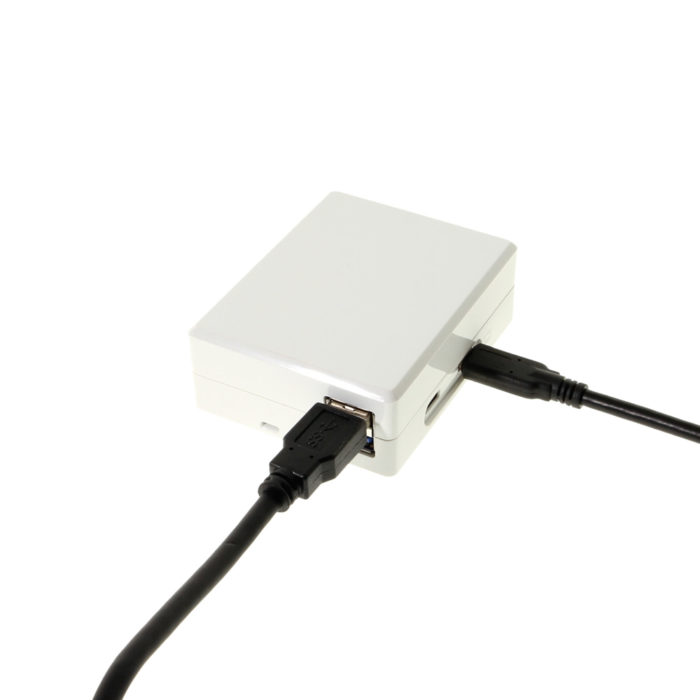

There are several ways in which to use the USB-C 50W Notebook power adapter, see below:

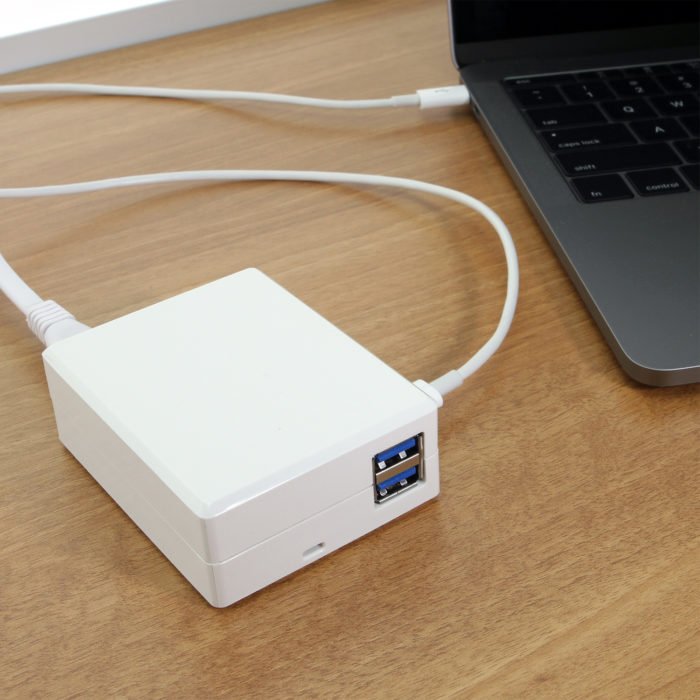

Charge laptop and portable devices at the same time, as well as transferring data; simultaneously playing movies stored on a connected external drive displaying High-Def video output.

Portable USB-C power dock

Works as a BUS POWERED USB 3.1 GEN1 Hub + HDMI PORT

USB Hub with HDMI

Using as a UNIVERSAL USB POWER CHARGER or a UNIVERSAL NOTEBOOK TYPE C POWER ADAPTER

Universal AC USB Type-C Charger or Notebook Type-C Adapter


50W USB-C Portable Notebook Power Dock Adapter Features

  • 100/240VAC Universal AC input supported
  • (up-stream) USB3.1 Gen1, type C, PD – 5 voltage levels supported (5V/9V/12V/15V/20V)
  • (down-stream) USB3.1 Gen1, type A x 2, USB 3.1 Gen1 type C x 1, 5V/3A
  • Type A ports support USB Battery Charging Specification 1.2. USB Charging Modes – SDP, CDP, DCP, with dead battery support.
  • Supports Apple, Samsung Galaxy fast charging on Type-C PD port.
  • HDMI A type port.
  • Supports up to 192kHz audio frame rate and up to 24-bit audio sample size

Specifications

50W rated NoteBook adapter with:

  • 100/240VAC Universal AC input supported
  • (up-stream) USB 3.1 Gen1, type C, PD – 5 output voltage levels supported
  • (down-stream) USB3.1 Gen1, type A x 2, USB 3.1 Gen1 type C x 1, with individual output 5V/1.5A, and USB IF BC1.2 fast charging supported.

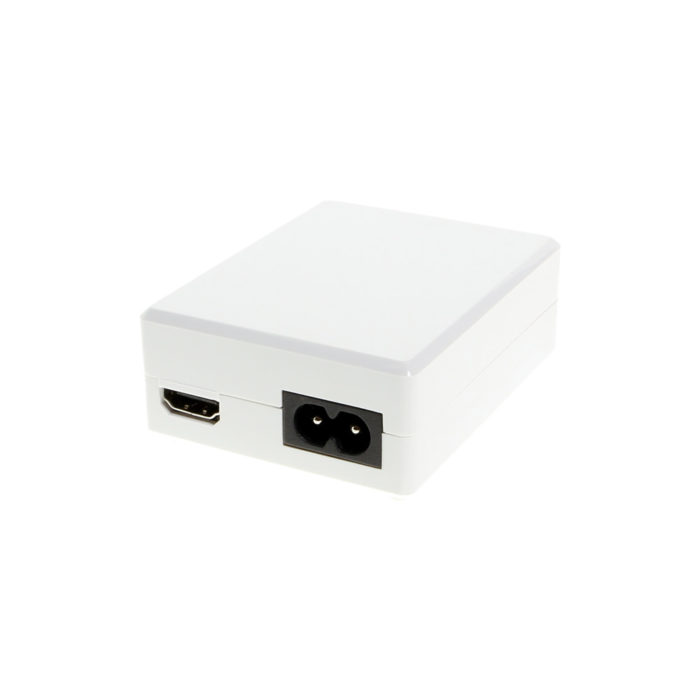

  • HDMI type A receptacle
  • AC/DC Power board is integrated inside the product, no external AC Adapter
  • 80mm x 61mm x 26mm external dimension
  • Item Weight: 7.7 oz (.48 lbs)

Protection

  • Over Current Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • Over Power Protection

HDMI 1.4 Supported / HDMI A type receptacle

  • Supports up to 192kHz audio frame rate and up to 24-bit audio sample size

Package Contents

  • USB C PD 50W Portable Power Dock Adapter
  • 1.5m AC Power Cord
  • 45cm C – C Cable

Additional information

Weight 1.075 lbs
Dimensions 9.00 × 6.25 × 1.75 in
Cable Length

Color

Beige

Interface

USB Type-C

Material

Plastic

UPC

045079159570
