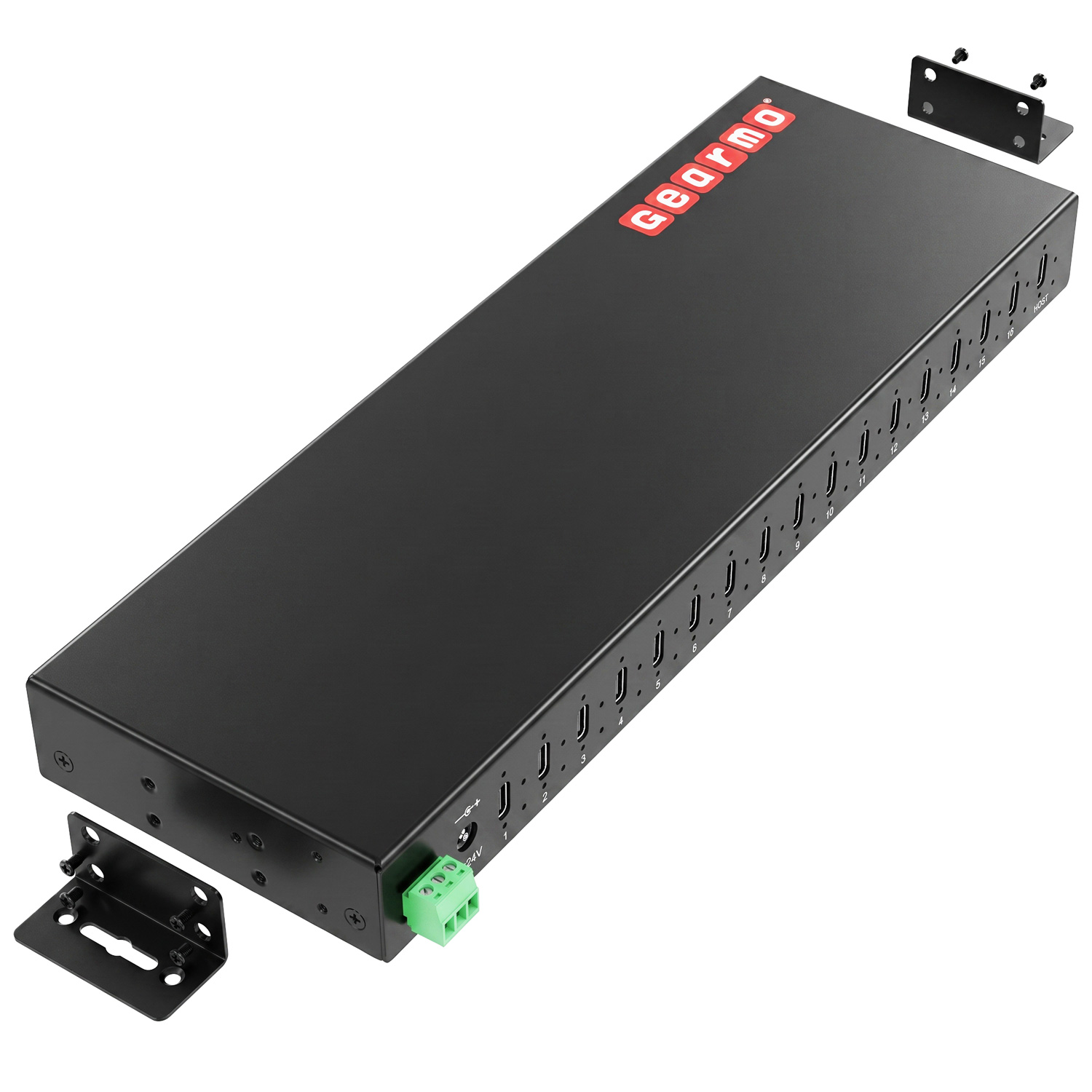

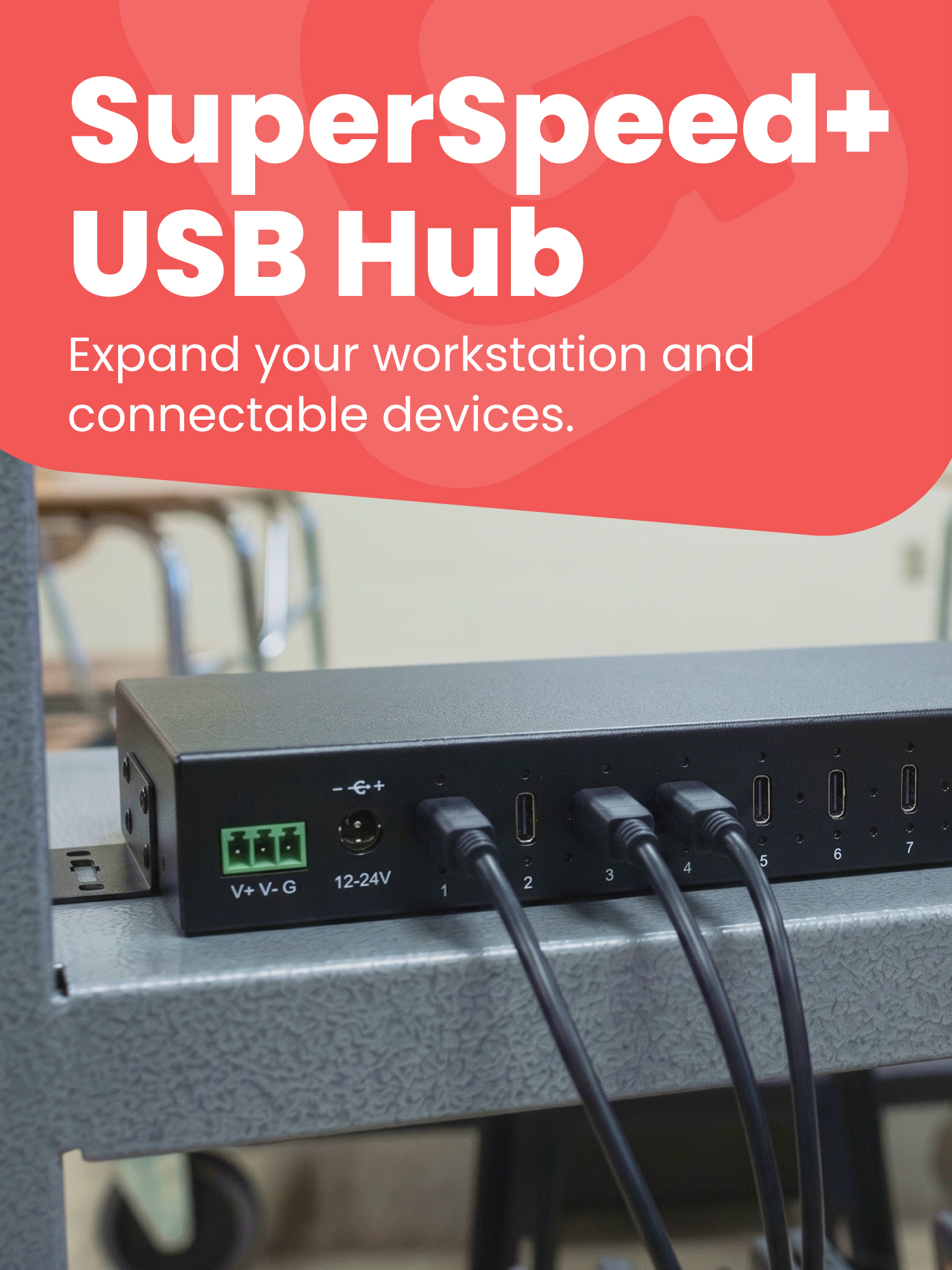

16-Port USB 3.2 Gen 2 Type-C Industrial Rack Mount Compatible Hub w/ ESD Surge Protection

$229.95

Extensive Connections: Expand your host system’s peripheral capabilities with 16 USB Type-C 3.2 Gen 2 ports, offering transfer speeds of up to 10Gbps.

Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. 15kV ESD and 600W surge protection for all ports. Housed in a steel metal chassis with screw-locking ports, this hub is ready to tackle harsh industrial environments.

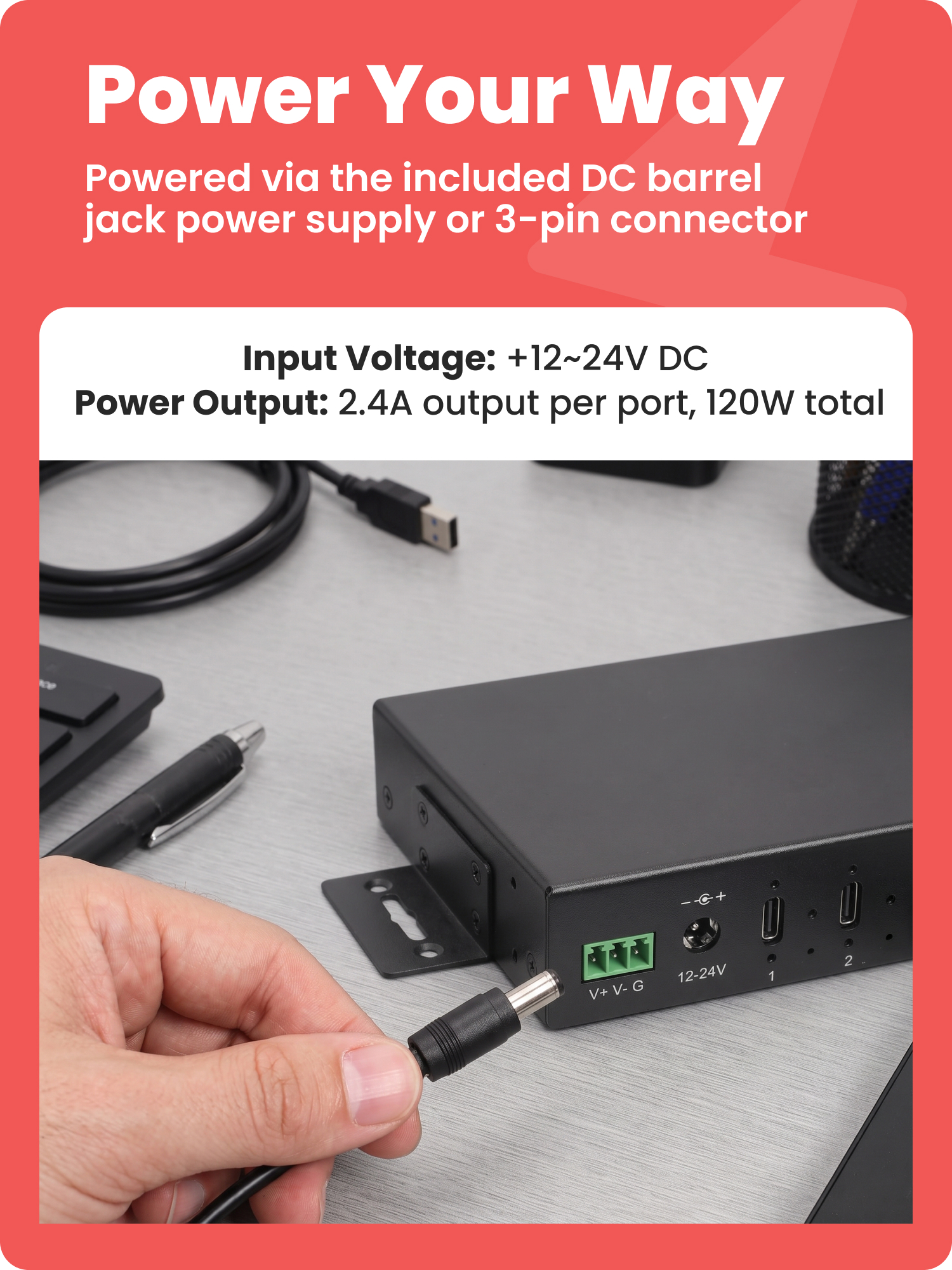

Flexible Power: Power your way with a wide input voltage range of 12~24V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.

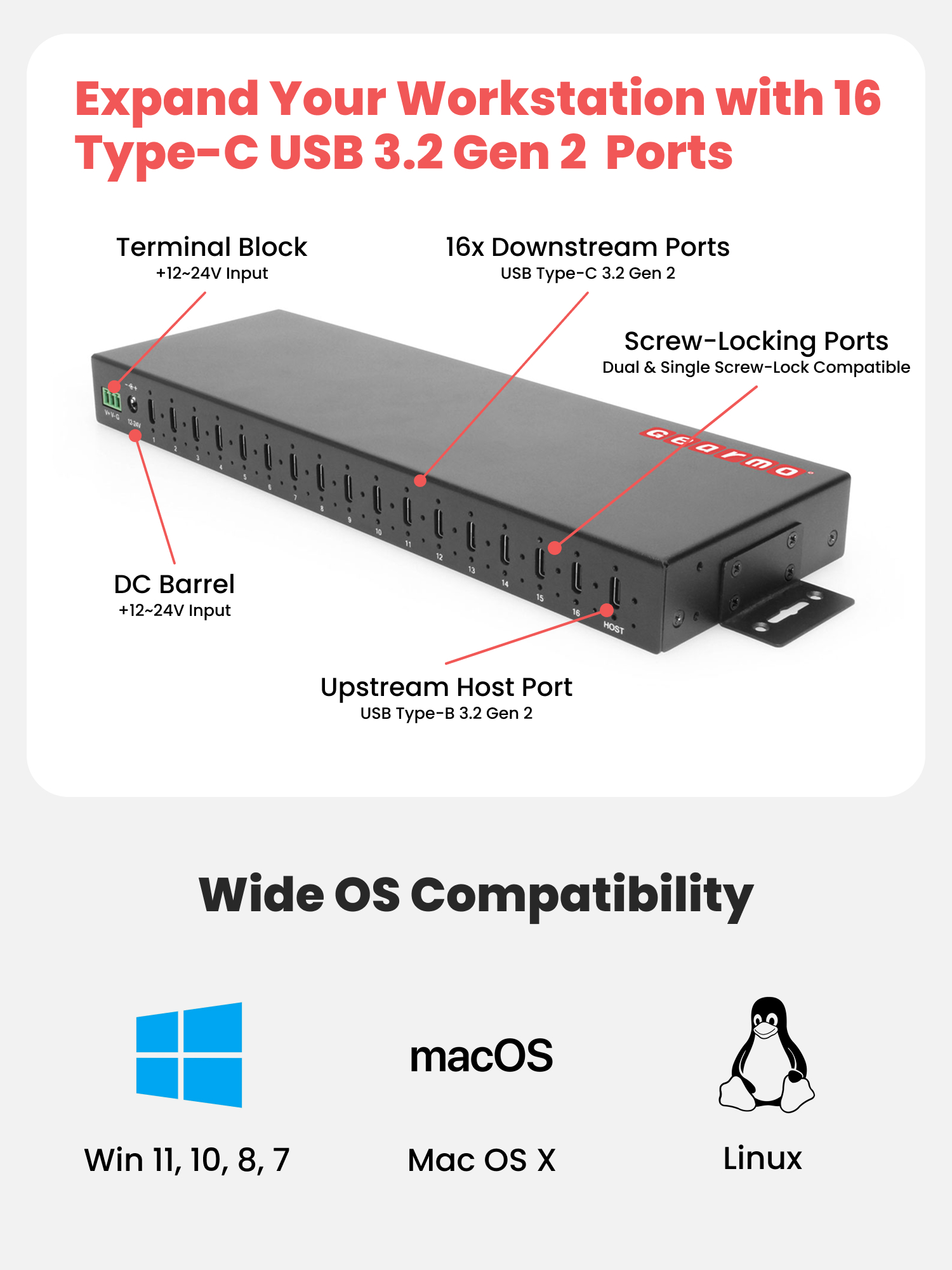

Upstream: USB Type-C

Downstream: 16x USB Type-C

Power Input: 3-Pin Terminal Block, DC Barrel

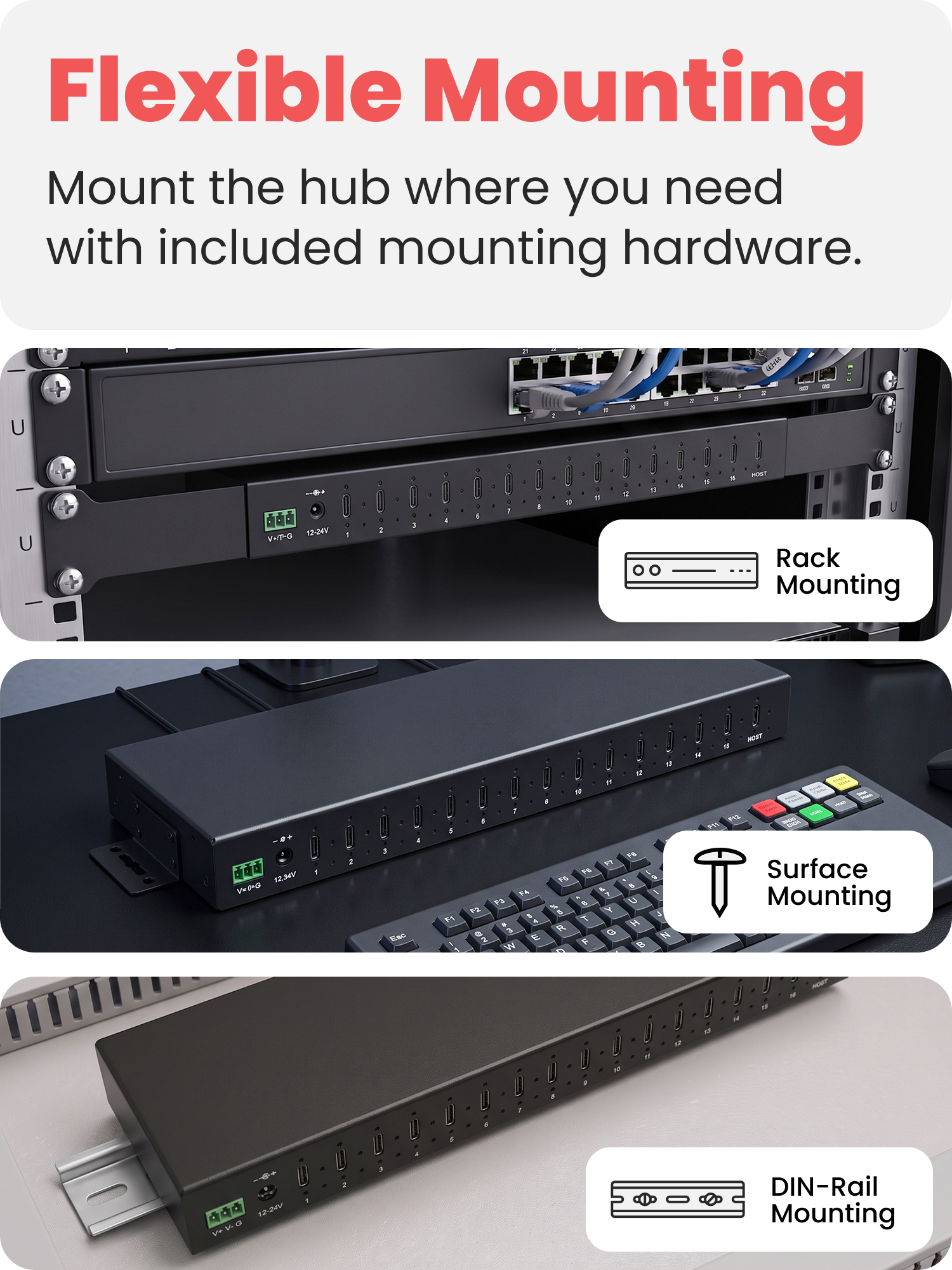

Mounting Styles: Rack, Surface/Wall, and DIN-Rail



Product Documents

Available on backorder

Tiered Pricing

1 - 19 pieces
$229.95
20 - 39 pieces
$225.35 (2% off)
40 - 79 pieces
$219.60 (4% off)
80 - 99 pieces
$216.15 (6% off)
100+ pieces
$211.55 (8% off)
x
Model #: GM-HU316C-RM Categories: , ,

Didn't Find What You Were Looking For? Support

Description

The GM-HU316C-RM is a high-performance rack-mountable USB hub designed for professionals, tech enthusiasts, and more. Featuring 16 USB 3.2 Gen 2 ports, it allows you to connect multiple devices seamlessly, offering data transfer speeds of up to 10Gbps for fast and reliable performance. With robust mounting options and built-in protections, this hub is built to handle demanding environments.

Equipped with versatile power input options (12-24V DC) and independent over-current detection for each port, the GM-HU316C-RM ensures safe and consistent operation. LED indicators provide clear status updates for power and data activity, while its redundant power input design offers an extra layer of reliability.

This hub also supports USB Battery Charging v1.2, delivering up to 2.4A per port and a total of 120W. Whether you’re charging devices, transferring data, or expanding your workstation’s connectivity, this hub provides unmatched efficiency and flexibility.

Features

  • Adds 16 USB 3.2 Gen 2 ports with 10Gbps data transfer speed
  • Versatile mounting support for rack, wall, desk, and DIN rail installations
  • Built-in 15kV ESD protection and 600W surge protection for all ports
  • Independent over-current detection and protection circuit design
  • Redundant 12-24V DC power input for reliable operation
  • USB Battery Charging v1.2 support with up to 2.4A output per port, 120W total
  • Charges devices without requiring a host PC connection
  • LED indicators for power and data activity monitoring

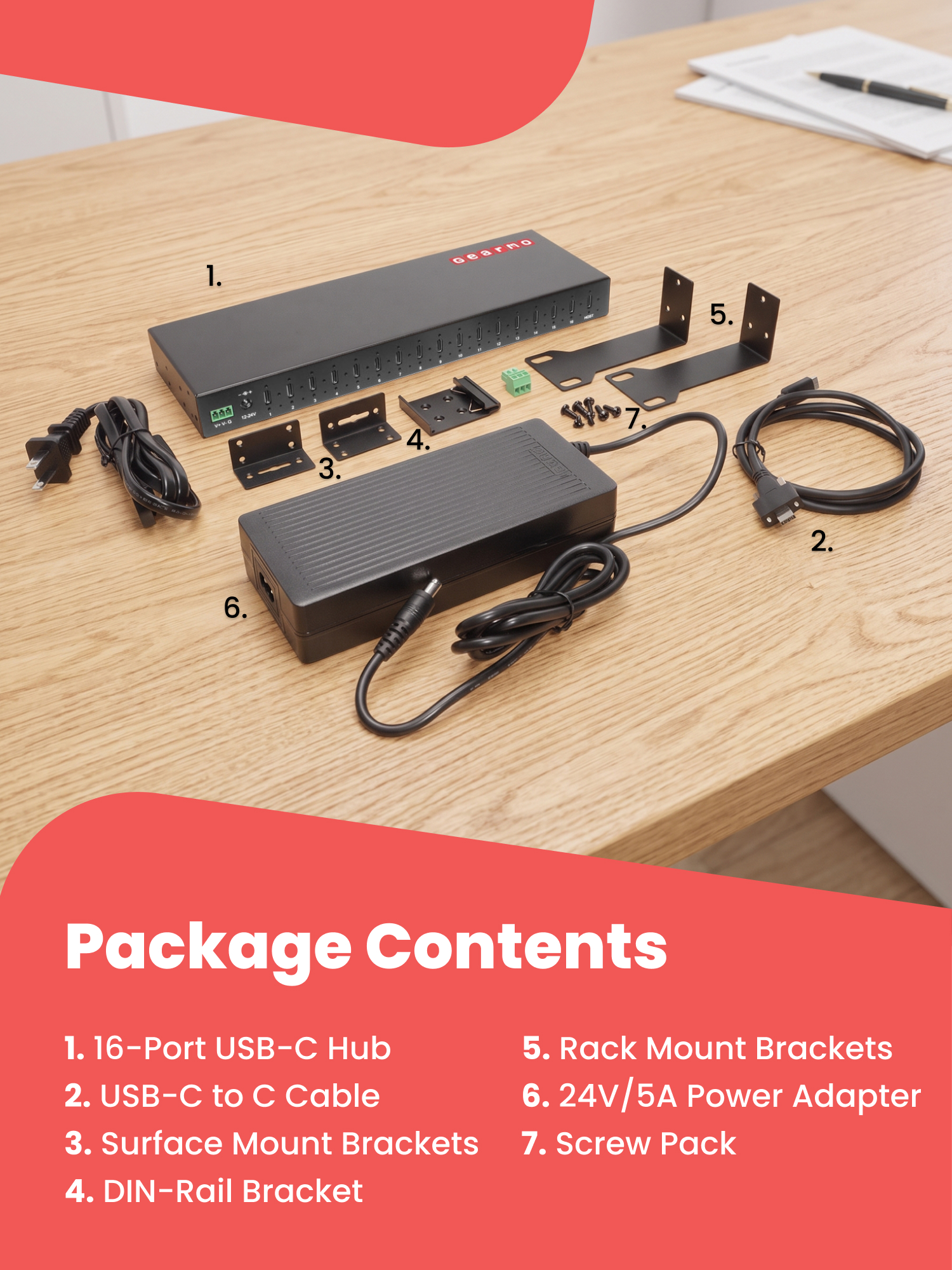

Package Contents

  • GM-HU316C-RM 16-Port USB 3.2 Gen 2 Rack-Mount Hub
  • User Manual
  • DC Power Adapter
  • USB Type-C to Type-C Screw-Locking Cable
  • Mounting Kit (Rack, Wall/Surface, and DIN Rail)
  • Screw Package for Secure Installations



Additional information

Weight 3.49 lbs

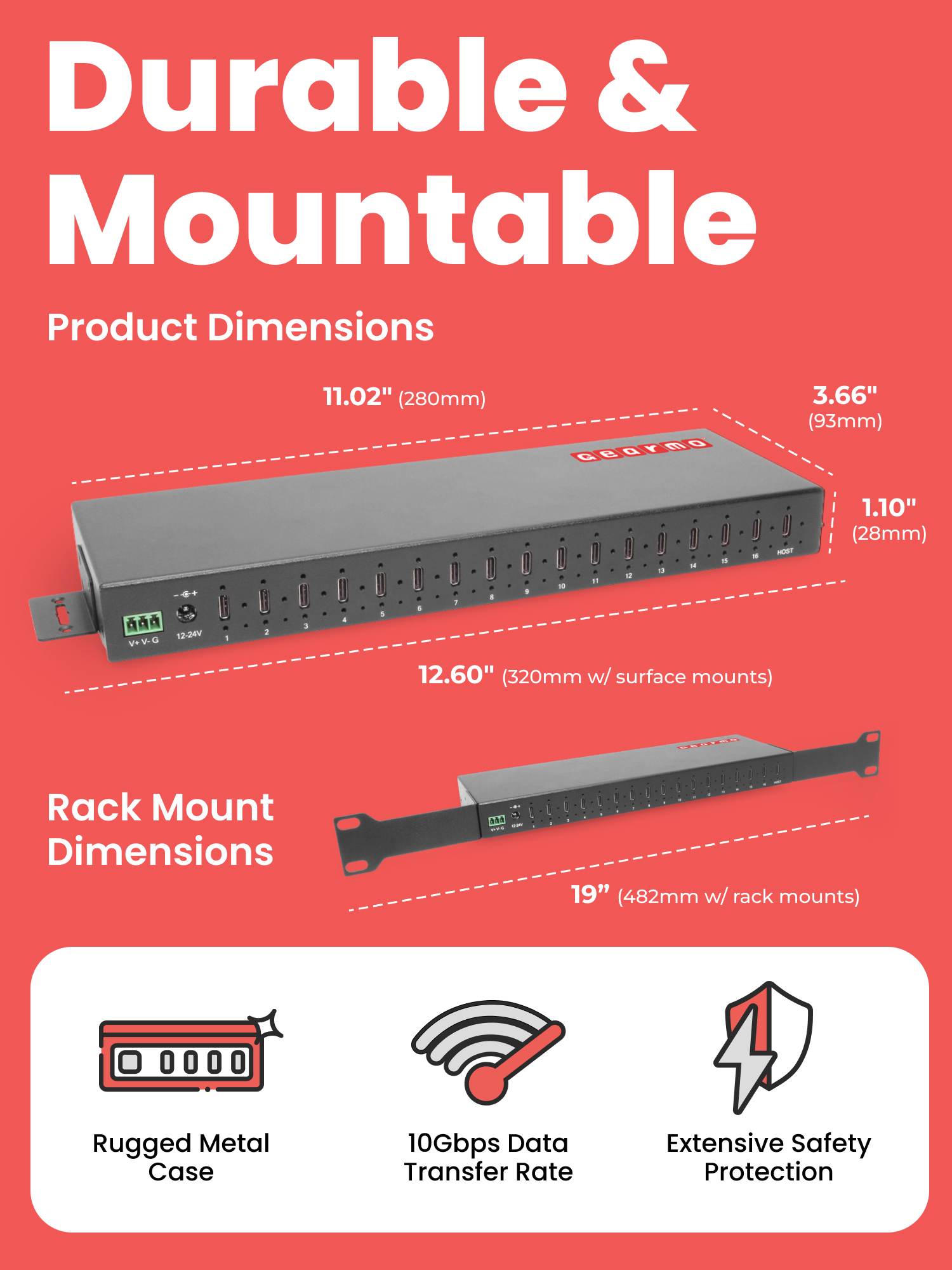

Dimensions 12.50 × 6.50 × 3.25 in
UPC

045079164758

Color

Black

ESD Protection

15kV

Input Voltage

12~24V DC

LED Indicators

Port Status, Power

Upstream Ports

1x USB Type-C

Downstream Ports

16x USB Type-C

USB Specification

USB 3.2 Gen 2

Material

Steel

Power Source

3-Pin Terminal Block, DC Barrel

Item Dimensions

11.00 × 3.75 × 1.00 in.

Item Weight

1.61 lbs.

Chip Set

Charging Protocols

BC 1.2
