7-Port USB 3.2 Gen 2 Type-C Industrial Surface & DIN-Rail Mount Hub w/ ESD Surge Protection

7-Port Mountable USB-C Hub

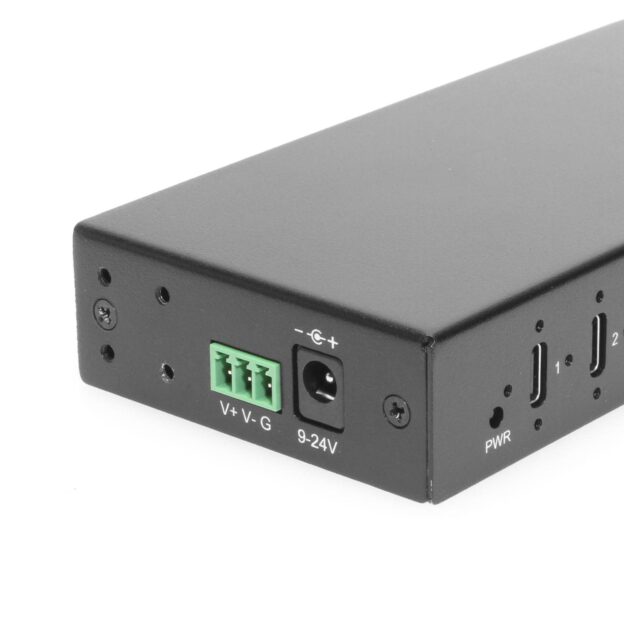

The GM-HU37C-DW Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 7 downstream USB Type-C ports. All ports, both downstream and upstream are conveniently located on the front facing panel along with the Terminal and barrel power connections. The GM-HU37C-DW USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.

Features:

• Adds 7 3.2 Gen 2 compliant USB Type-C ports supporting up to 10Gbps
• Output: 7x USB-C with each 2.4A, total 57W max

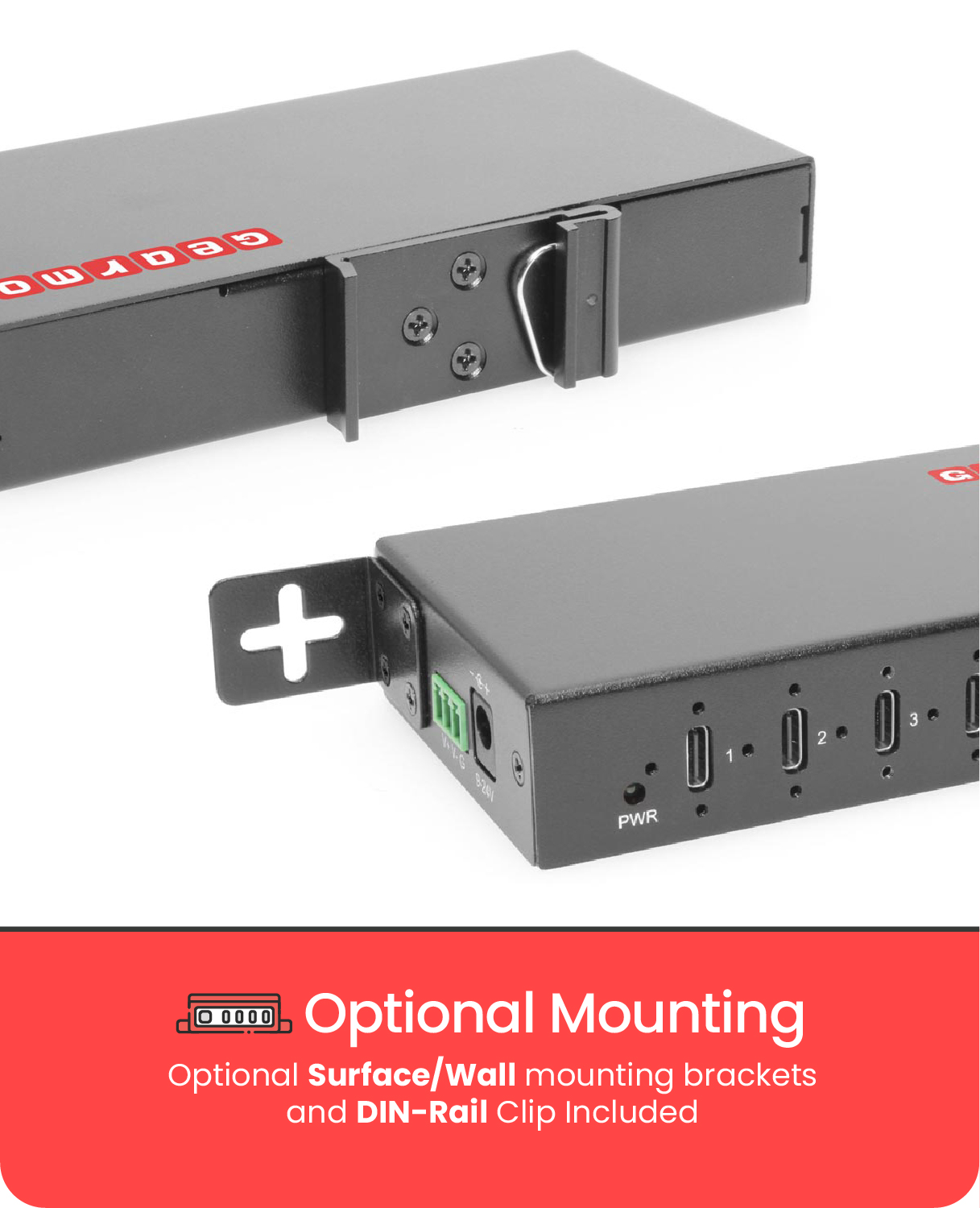

• Rugged metal chassis with surface & DIN Rail mount support

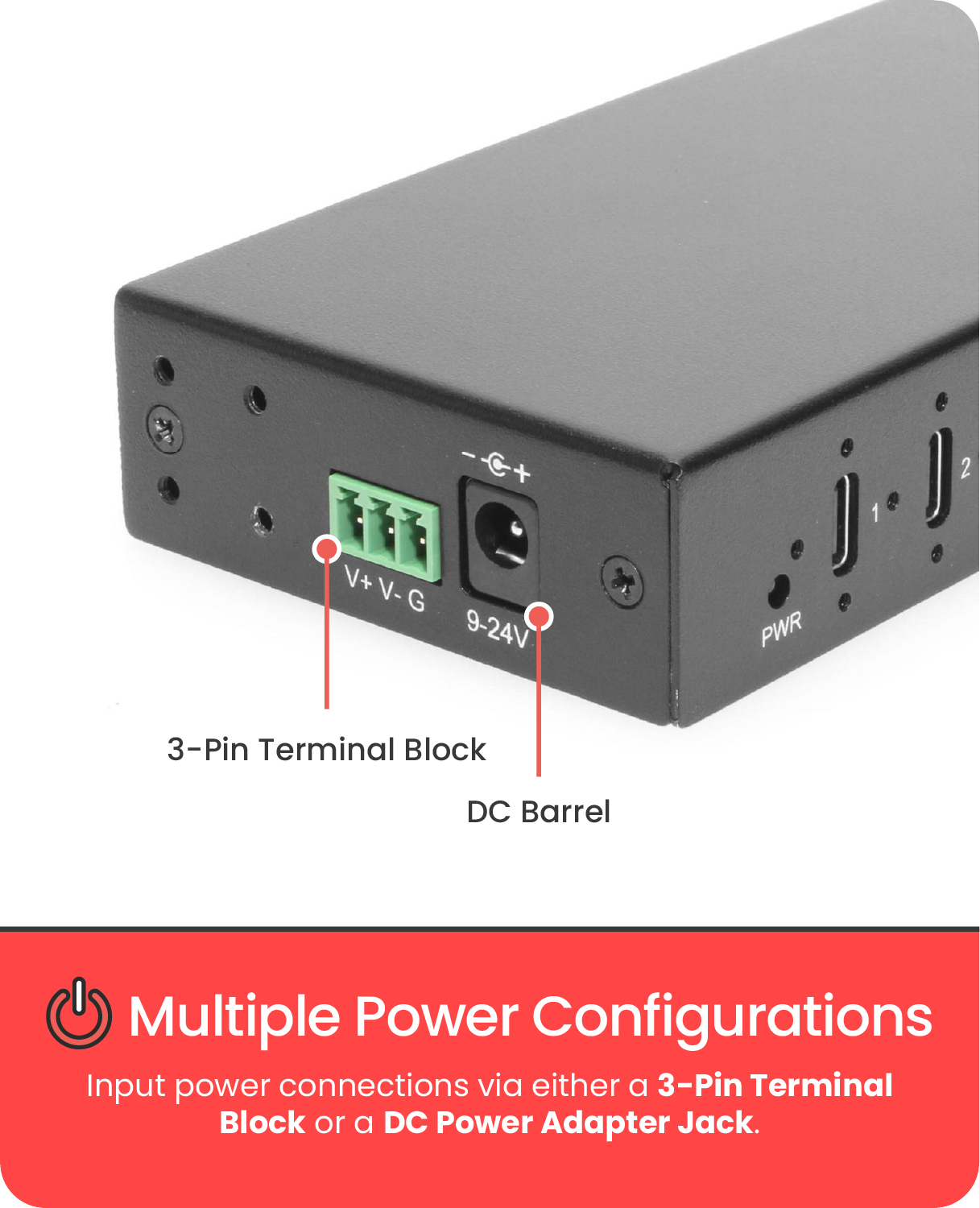

• 9~24V DC power input with an included DC Barrel power supply
• LED indicators for each port to show connection confirmation
• Screw-locking ports
• Upstream USB Type-C port

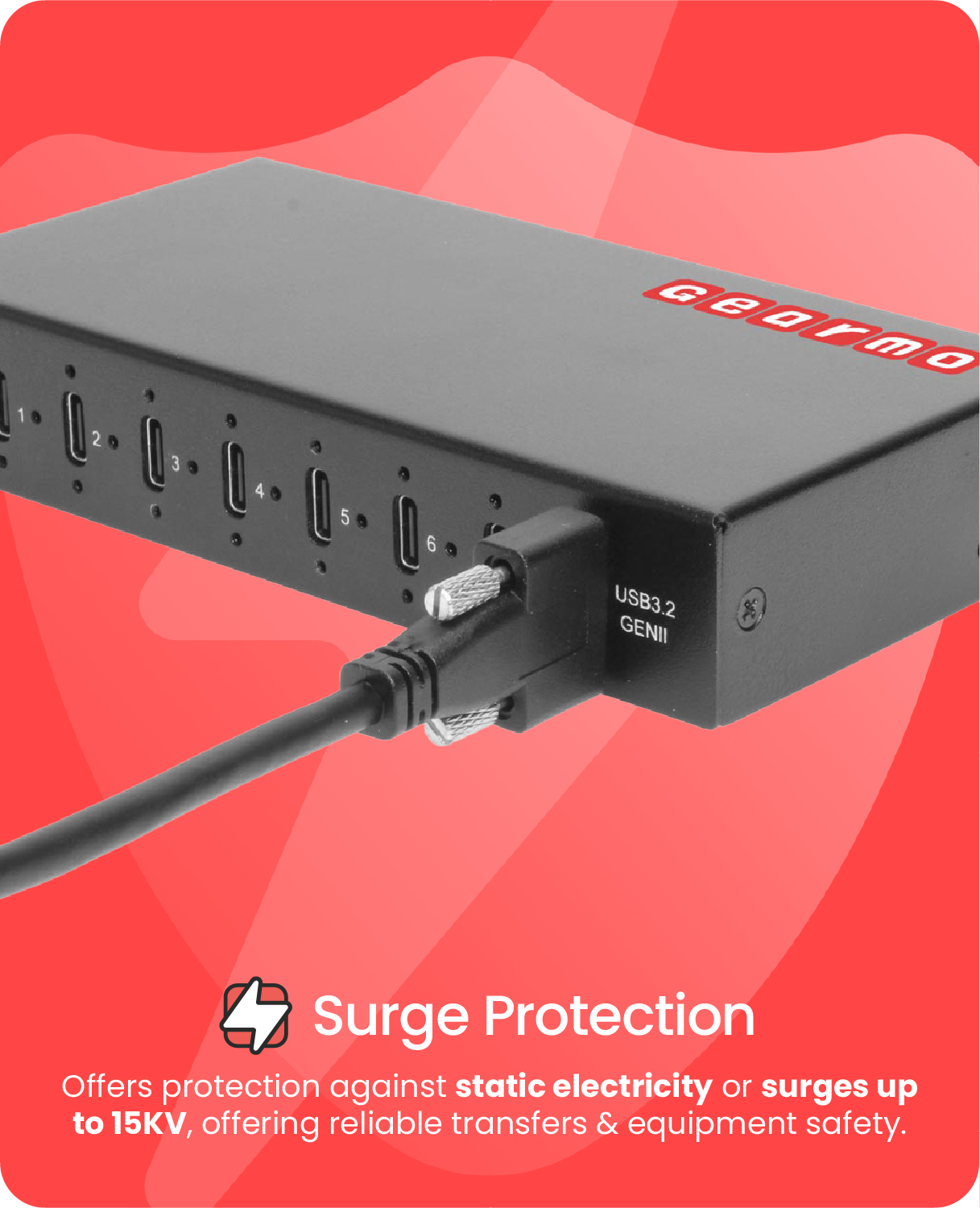

• 15kV ESD protection for all USB ports

OS Support:

• Windows 7, Windows 8, Windows 10, Windows 11
• Mac OS X
• Linux

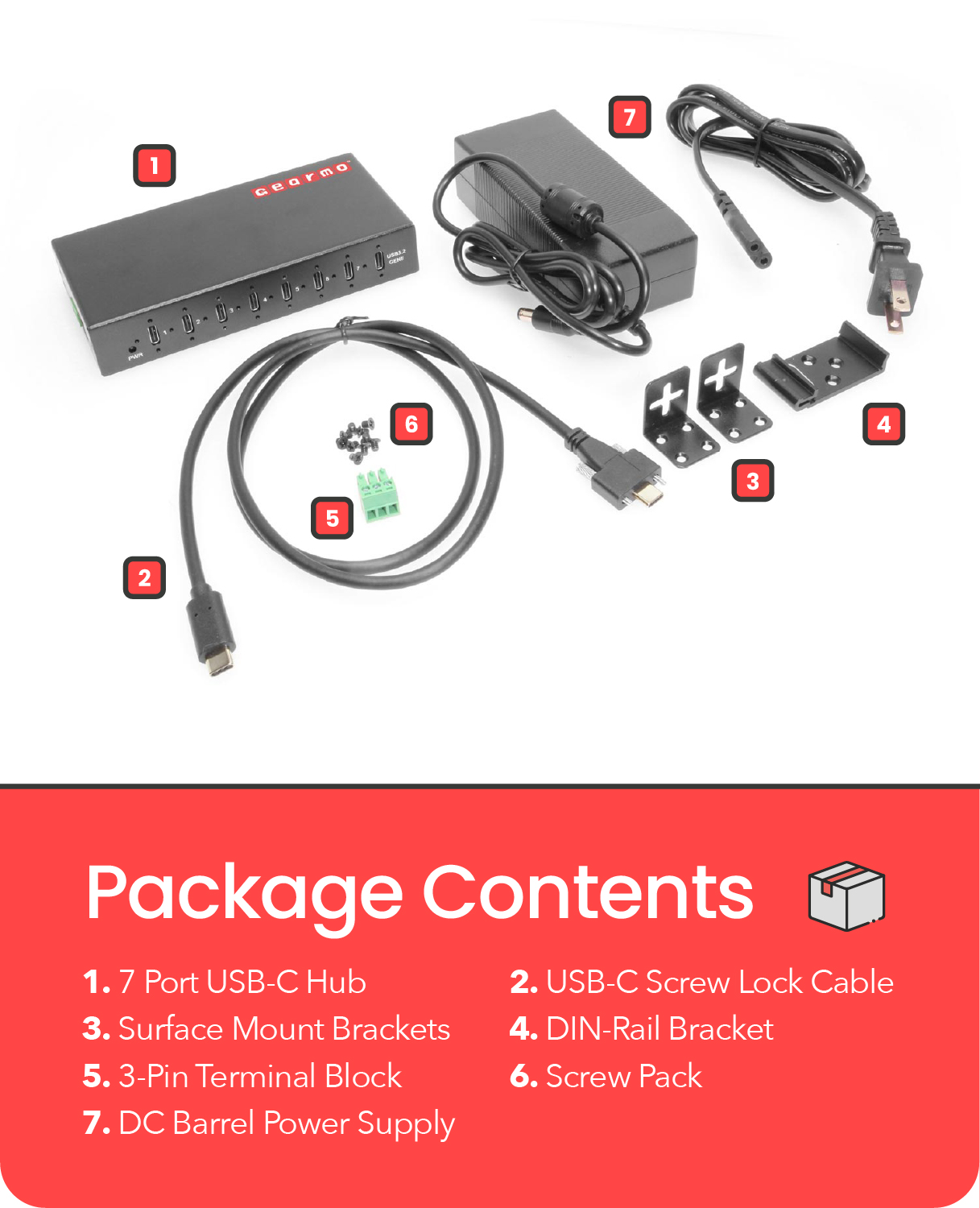

Package Contents:

• Industrial 7-Port USB 3.2 Gen 2 Type-C Industrial Hub
• User Manual
• Power Adapter with DC Barrel Connector
• USB Type-C to Type-C Screw-Locking Cable
• DIN-Rail & Wall Mounting Kit
• 3-Pin Terminal Block
• Screw Package

Safety & Compliance Certifications

The GM-HU37C-DW has been rigorously tested to meet the highest international safety standards. Our comprehensive testing ensures you can rely on the device in even the most demanding automotive, industrial, and commercial applications.

Standard	Status	Remarks
*	✓ Compliant	General Product Safety Regulation: (EU) 2023/988 EMC Directive: 2014/30/EU EU PoP: (EU) 2019/1021
	✓ Compliant	FCC Part 15 Subpart B, ANSI C63.4:2019
	✓ Compliant	EC/1907/2006 – 250 SVHC List 06/25/2025
	✓ Compliant	Conforms to RoHS Legislation 2011/65/EU + (EU) 2015/863

*Passing a test report does not constitute certification, listing, or product registration. Test Report Available – Certification Required for End Product
