USB 3.0 4 Port Rugged Industrial Din Rail Mount Hub w/Power Adapter

$76.95

New USB 3.0 DIN Rail mountable 4 port hub with a rugged metal chassis includes both DIN-Rail clip, mounting brackets, and power adapter. The USB 3.0 Hub is supported by Windows 10 operating system or earlier, and Mac OS x and Linux.



  • Supported by Windows 10 OS
  • DIN Rail mountable
  • 15KV ESD USB interface protection
  • Super-speed transfer rates up to 5Gbps

In stock

Model #: GM-HU34-PS Categories: , ,

Didn't Find What You Were Looking For? Support

Description

GearMo® USB 3.0 Rugged 4 Port Hub with Power Adapter

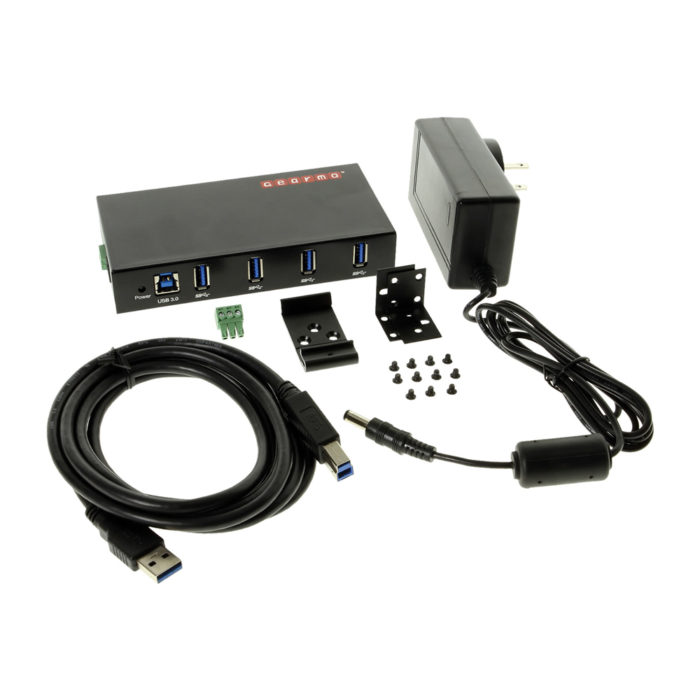

The (GM-HU34-PS) Super-Speed USB 3.0 4 Port Hub is designed as a rugged industrial hub. It includes mounting brackets, DIN-Rail clip, and a power adapter. GearMo’s USB 3.0 Super-Speed metal Hub supports 4 USB 3.0 upstream port connections and 1 USB 3.0 Type “A” to “B” Downstream from the host computer. This GearMo hub supports UASP function (with Windows 8 native USB 3.0 Host driver only)

UASP is an acronym for “USB Attached SCSI Protocol”, this protocol is used to move data to and from USB storage devices including HDD, Thumb Drives, and Solid-State drives, and it uses the standard SCSI command set.

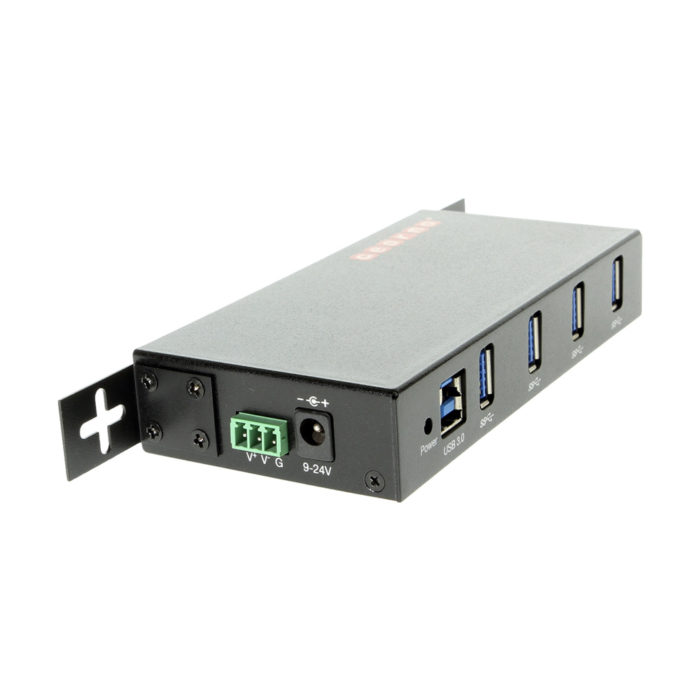

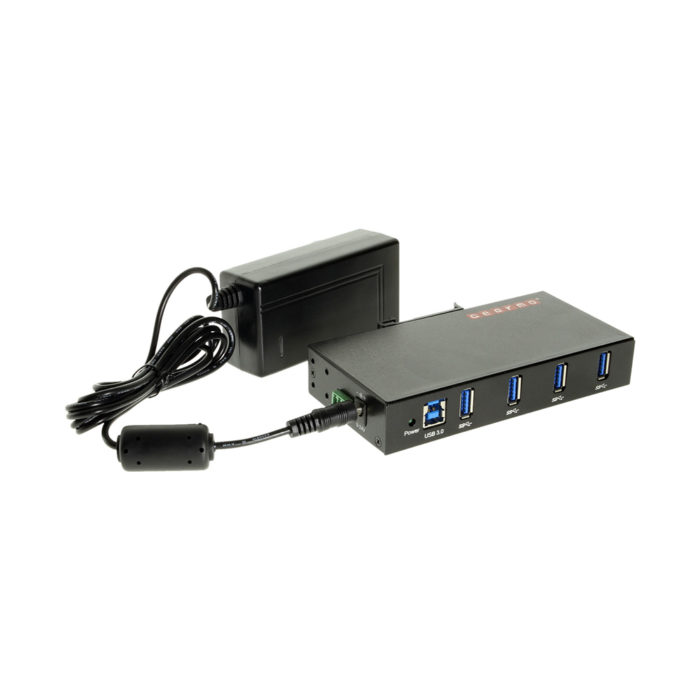

The USB 3.0 4-Port Hub includes an optional 9-24V power jack receptacle for power consuming devices and separate 3-wire power connector for use with DIN-Rail mounted operations. This GearMo 4 port USB 3.0 industrial Hub includes independent over-current detection and, circuit protection, and Power input surge protection of 600W each port.

USB 3.0 4 Port Hub Mounting

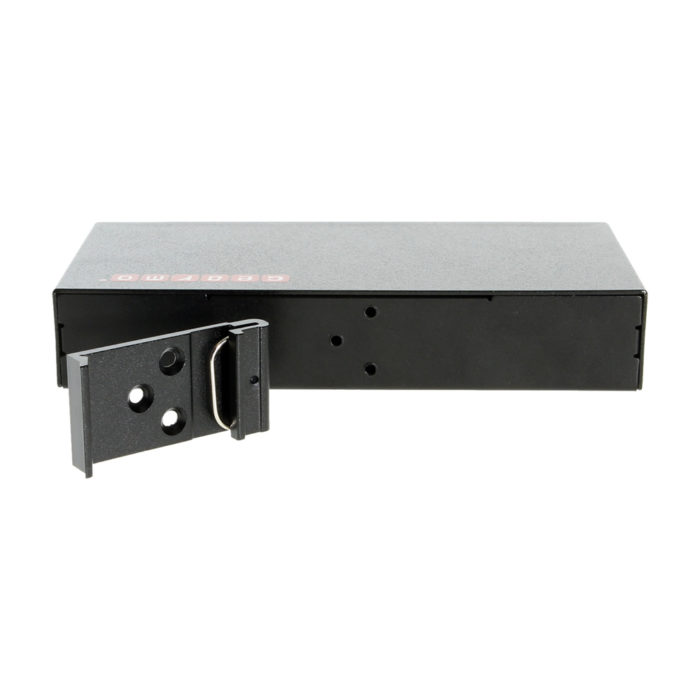

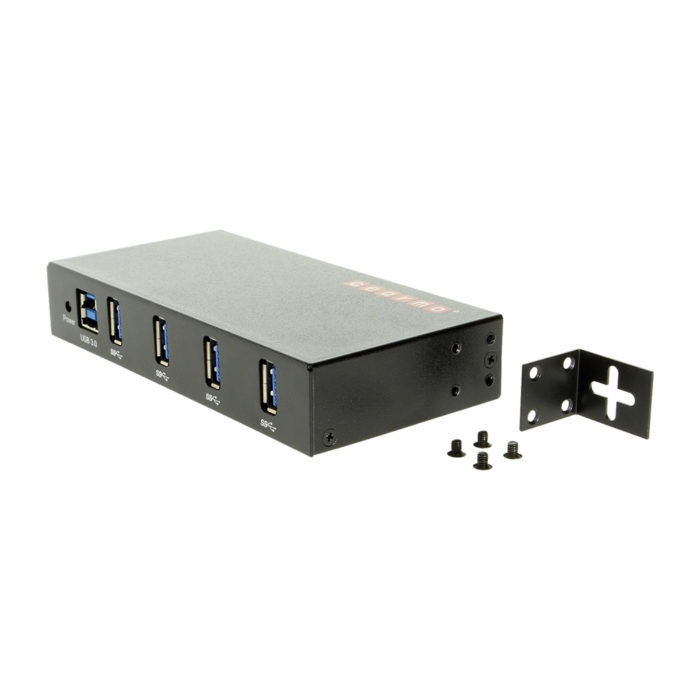

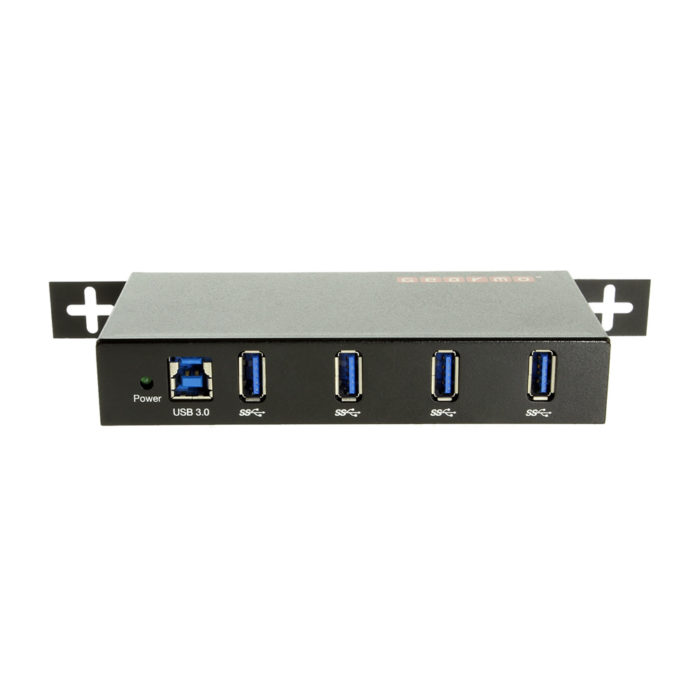

The GM-HU34-PS USB 3.0 Hub has multiple mounting options available depending on its usage. The USB 3.0 Hub can be mounted via mounting brackets that are secured by four individual screws per bracket on both ends of the Hub. This USB 3.0 Hub also includes a DIN-Rail mounting bracket that secures to the rear panel via three screws keeping the hub secured to the DIN-Rail.

Hub Features

  • Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
  • Adds 4 additional USB Super-Speed ports
  • Wall and DIN rail mount support
  • Industrial grade rugged metal enclosure design
  • Redundant 9VDC to 24VDC power input
  • 15KV ESD USB interface protection
  • Over-current detection and protection circuit design
  • Item Dimensions: 257.9 (W) x 170.2 (D) x 60.6mm (H)

Technical Specifications

  • Operating Temperature:0°C – 40°C
  • Operating Humidity: 5% – 85%
  • Storage Temperature: -20°C ~ 50°C
  • Storage Humidity: 5% – 95%
  • Operating Altitude: -1000 to 10000 FT.
  • Chipset: VIA VL811+
  • Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
  • Supported OS include Windows XP, 7, 8, Windows 10, Mac OS x and Linux
  • Compliant with Universal Serial Bus 3.0 Specification
  • Maximum data transfer rate: 5Gbps
  • Surge Protection: 600W (max)
  • Metal housing with mounting mechanism
  • Interfaces/Ports:
    • Input: 1, 9-pin, USB 3.0, Type B, Female
    • Input: 1, Terminal block (3-Wire), Power
    • Input: 1, DC power adapter jack (power adapter included)
    • Output: 4, 9-pin, USB 3.0, Type A, Female

Power Requirements

  • Input voltage: 9VDC~24VDC
  • Output current: 900mA per port (max)
  • Power consumption: 3.6W

Additional information

Weight 1.568 lbs
Dimensions 7.375 × 5.687 × 1.937 in
Color

Black

Material

Steel

UPC

045079158474

Interface

USB 3.0

Supported OS

, , , , ,

Operating Temperature

0 – 50°C (32 – 122°F)

Product Manual
