USB 3.2 Gen 1 10 Port Industrial Metal Hub w/15KV ESD Protection

$128.99

Powerful USB 3.0 10 Port Hub

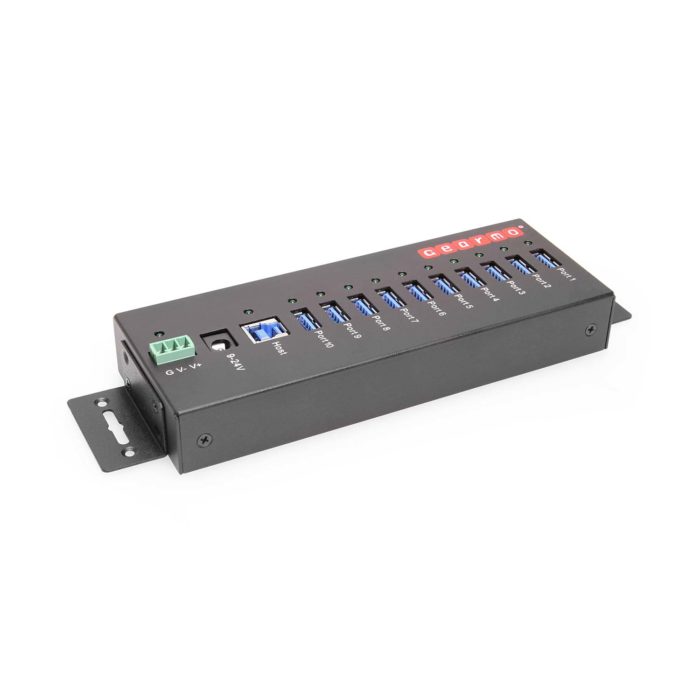

The Gearmo 10 Port USB 3.0 hub is designed to be rugged with its industrial-grade shell. All ports and connections are conveniently laid out on the top panel of the hub making it easy to connect and easy to mount. LED indicators show port connection confirmation.

  • SUPER FAST SPEEDS – This 10 port USB hub is Compliant with Universal Serial Bus 3.2 Gen 1 Specifications guaranteeing super-fast speeds data transfer speeds.
  • MOUNTING OPTIONS – With an industrial rugged metal chassis, built-in wall mount and DIN-Rail mountable brackets. This device allows for flexible and secure installation options.
  • FEATURES – This high-speed USB 3.2 Gen 1 hub allows you to connect 10 additional USB devices to your system. The industrial-grade chassis provides lasting durability for rugged use.
  • POWER SPECIFICATIONS – Redundant 9-24V DC power input, 15kV ESD USB Interface protection, Power input surge protection to 600W for each port, and Over-current detection and protection design. Supports SDP, CDP, DCP, and Apple 2.4A charging protocols.
  • OS SUPPORT – Compatible with Windows 11, Windows 10, Windows 8, Windows 7, Mac OS X, Linux systems

Product Documents

In stock

Purchase from Retailer

SKU: GM-HU310DW Categories: , ,

Description

Gearmo USB 3.0 10 Port Rugged Hub with Power Adapter

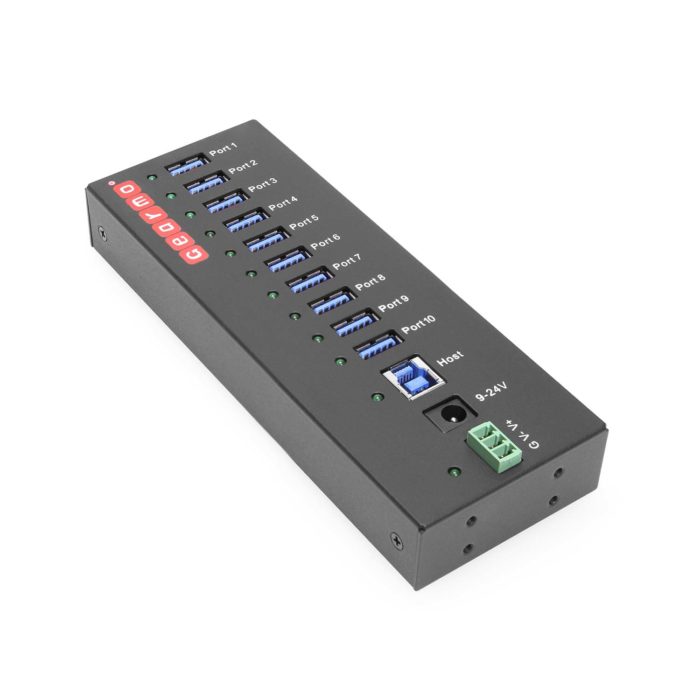

The GM-HU310DW Gearmo USB 3.2 Gen 1 10 port hub is an industrial metal hub that is a total package! All 10 data ports and the downstream port are conveniently located on the top facing panel along with the terminal and barrel power connections. The GM-HU310DW USB 3.2 Gen 1 10 port hub includes mounting option hardware for both surface and DIN-Rail mounting. It is compliant with USB 3.2 Gen 1 standards, data speeds up to 5Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.

The GM-HU310DW is part of the Gearmo Prosumer series of hubs and includes the power adapter to handle the power needed for industrial applications.

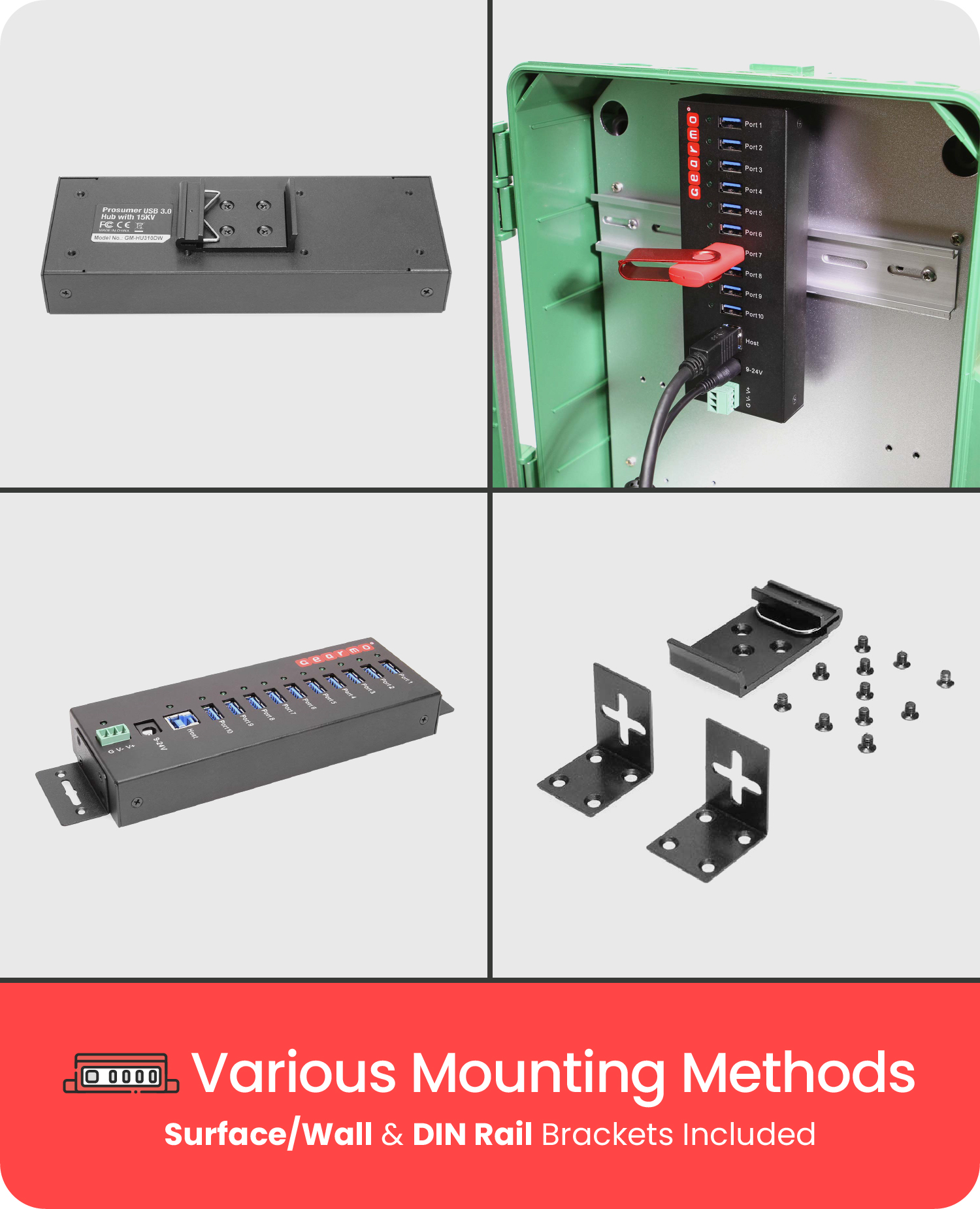

USB 3.0 10 Port Hub Mounting

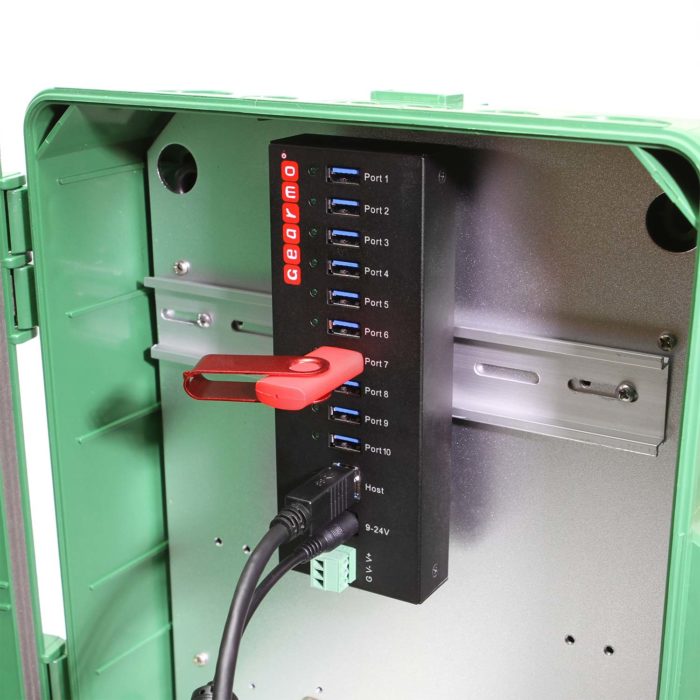

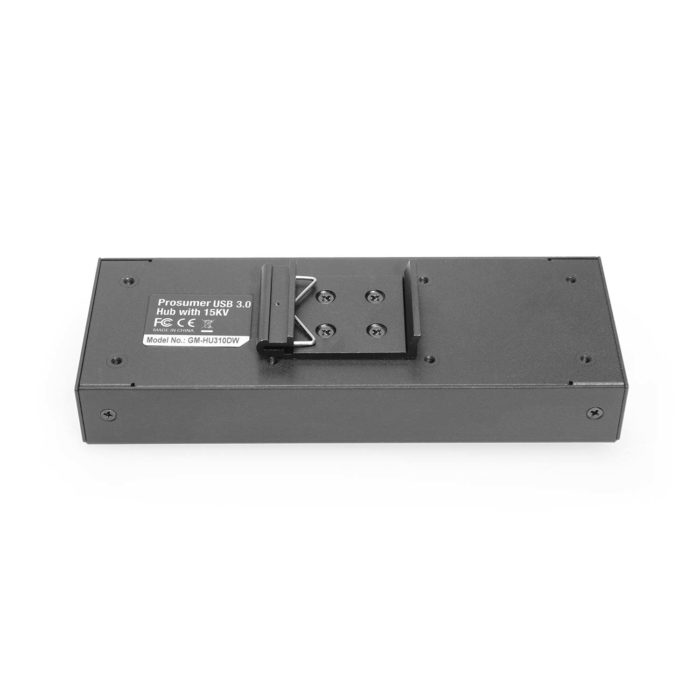

The USB 3.0 10 port Hub has multiple mounting options available depending on its usage and can be mounted via mounting brackets or Din Rail clip included. The GM-HU310DW USB 3.0 hub includes all necessary hardware to securely mount it where its applications are needed.

Hub Features

  • Compliant with Universal Serial Bus 3.2 Gen 1 Specifications
  • Industrial-grade, rugged metal housing design
  • Adds 10 USB 3.2 Gen 1 super-speed ports
  • Redundant 9-24V DC power input

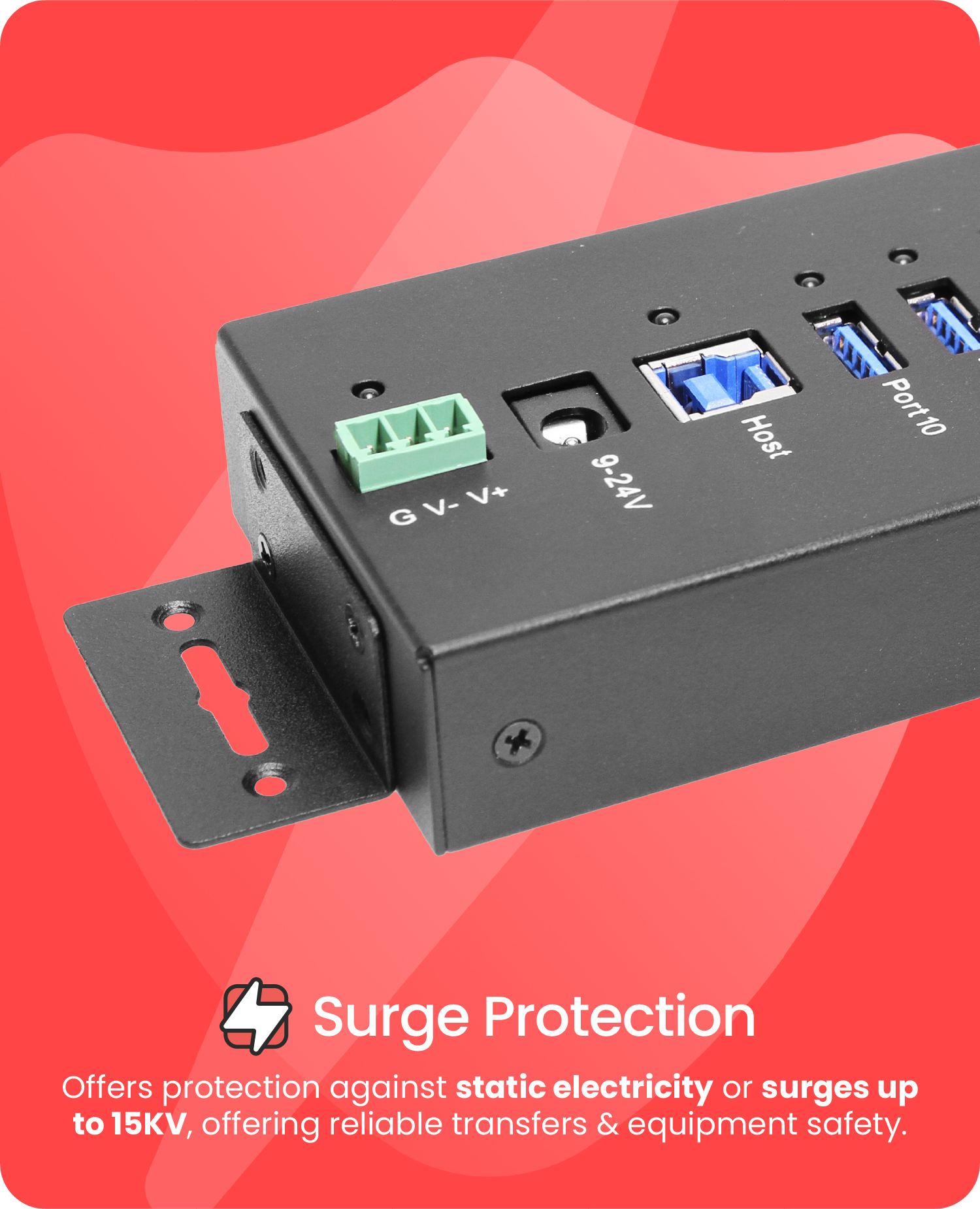

  • 15KV ESD USB Interface protection
  • Power input surge protection to 600W for each port
  • Over-current detection and protection circuit design
  • Wall and DIN Rail mount support
  • Item Dimensions: 160(L) x 60.3(W) x 23.8mm(H)

Technical Specifications

  • Chipset: VL817-Q7S chipset
  • Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
  • Compliant with Universal Serial Bus 3.0 Specification
  • Maximum data transfer rate: 5Gbps
  • Surge Protection: 600W (max)
  • Metal housing with mounting mechanism
  • Charging Protocols: SDP, CDP, DCP, Apple 2.4A
  • Input Voltage: 9~24V DC
  • Max Power: 57W
  • Max Current: 2.4A
  • Interfaces/Ports:
    • Input: 1, 9-pin, USB 3.0, Type B, Female

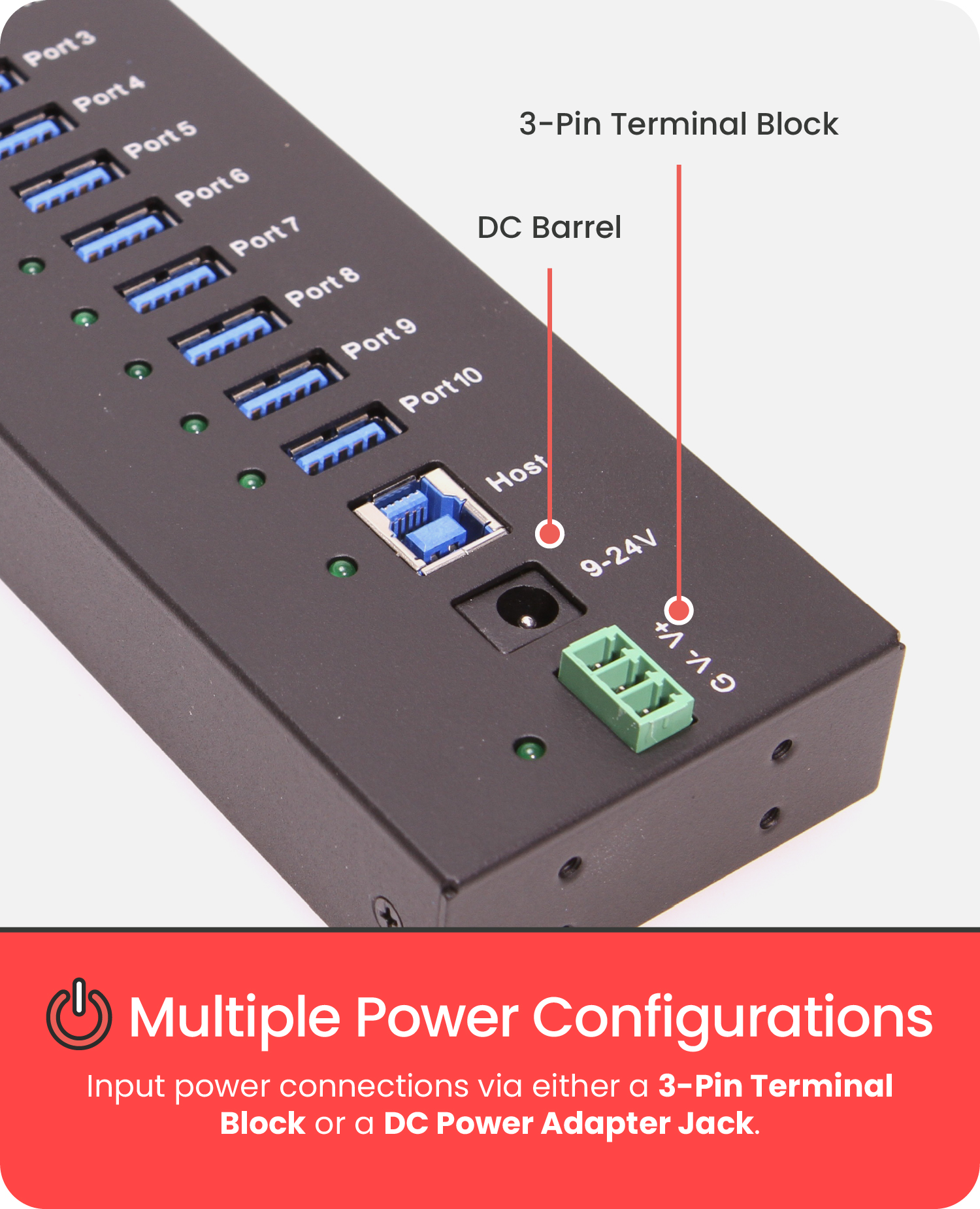

    • Input: 1, Terminal block (3-Wire), Power
    • Input: 1, DC power adapter jack (power adapter not included)
    • Output: 10, 9-pin, USB 3.0, Type A, Female

OS Support

  • Windows XP, Windows 7, Windows 8, Windows 10, Windows 11
  • Mac OS X
  • Linux

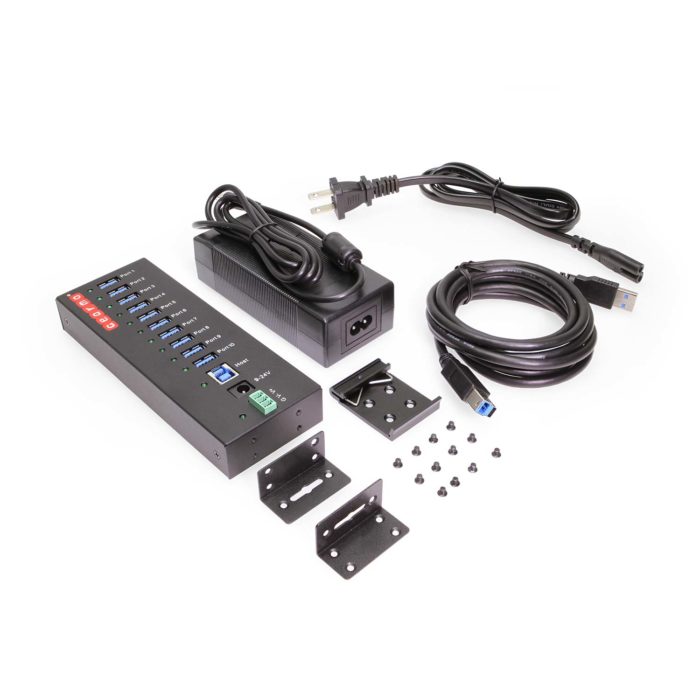

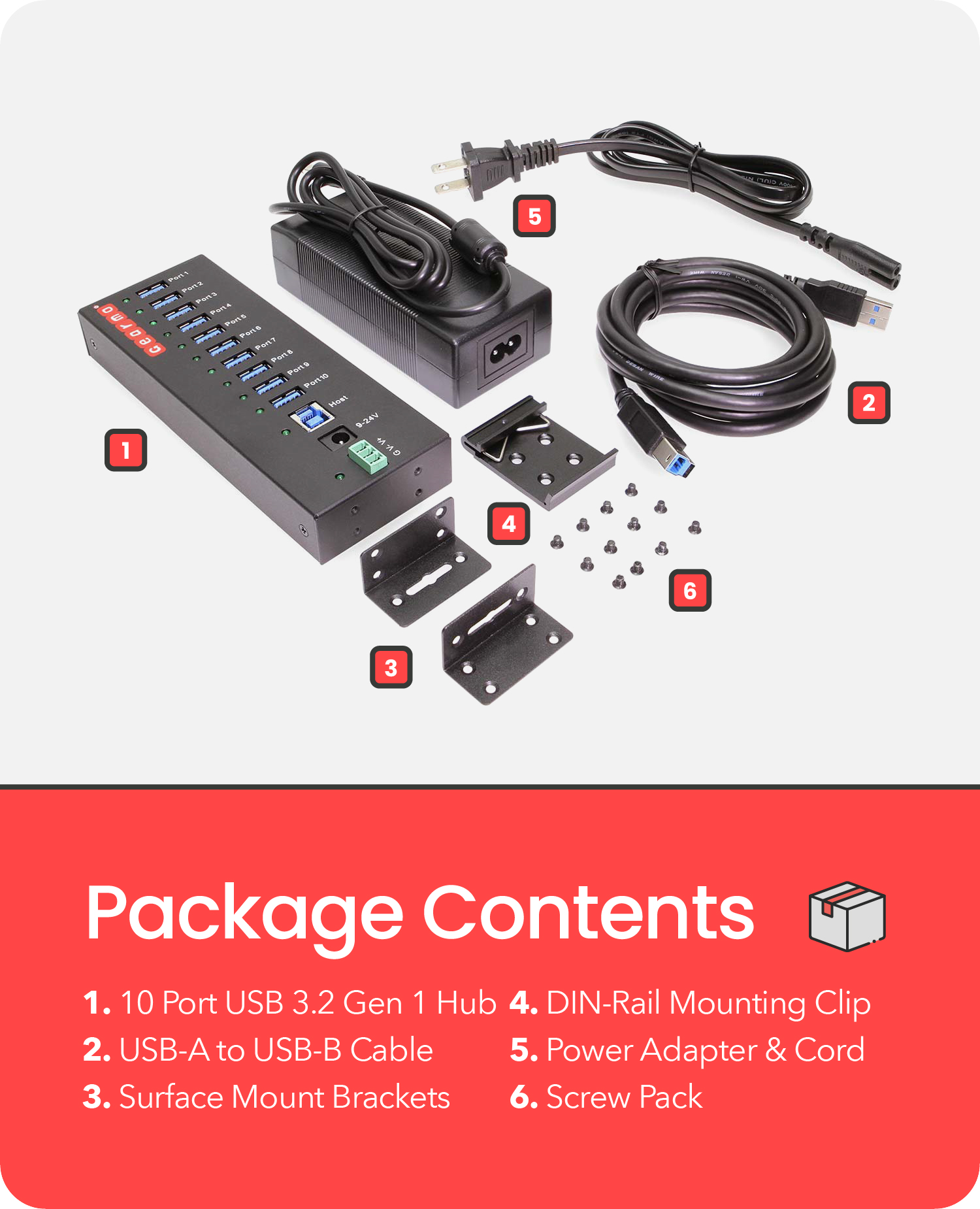

In the Box

  • Gearmo USB 3.2 Gen 1 industrial 10 Port Hub
  • Power adapter and Cord
  • DIN Rail Clip
  • Surface Mounting Brackets
  • Mounting screws
  • 3-wire Terminal power connector
  • 6ft. USB 3.2 Gen 1 A to B cable

Additional information

Weight 1.98 lbs
Dimensions 8.375 × 7.375 × 2.500 in
UPC

045079159945

Material

Steel

Item Dimensions

160(L) x 60.3(W) x 23.8mm(H)

Interface

USB 3.0

Color

Black

Operating Temperature

0 – 50°C (32 – 122°F)

Charging Protocols

Charging Downstream Port (CDP), Dedicated Charging Port (DCP), Standard Downstream Port (SDP), Apple 2.4A

Power Source

3-Pin Terminal Block, DC Barrel

Supported OS

, , , , , ,

Certifications

CE, FCC, RoHS

Country of Origin

China

Downstream Ports

10x USB Type-A

ESD Protection

15kV

Input Voltage

9~24V DC

Upstream Ports

1x USB Type-B

USB Specification

USB 3.2 Gen 1
