USB 3.0 4 Port Metal Hub w/15KV ESD Protection & Mounting Brackets


Powerful USB 3.0 4 Port Hub with Protection

The new Gearmo 4 Port USB 3.0 hub is designed to be rugged and Mountable. It provides up to 600W surge protection over each port. All ports and connections are easily accessible making it easy to connect to your data. LED indicators show port connection confirmation and includes mounting brackets for surface mounting.


  • Adds 4 USB 3.0 5Gbps Compliant Ports
  • Includes 600W Surge Protection over each USB port and 15KV ESD
  • Rugged Industrial-grade Chassis for Harsh Environments
  • Includes 3-wire terminal plug connector for wired power

Product Documents

In stock

Purchase from Retailer

Model #: GM-HU34PWL Categories: , ,

Didn't Find What You Were Looking For? Support


Part of Gearmo’s Prosumer Series of USB 3.0 Hubs

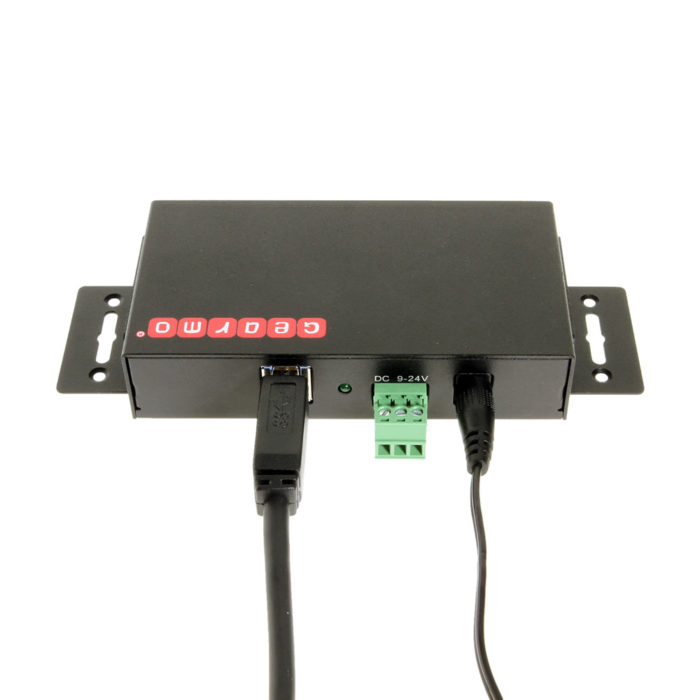

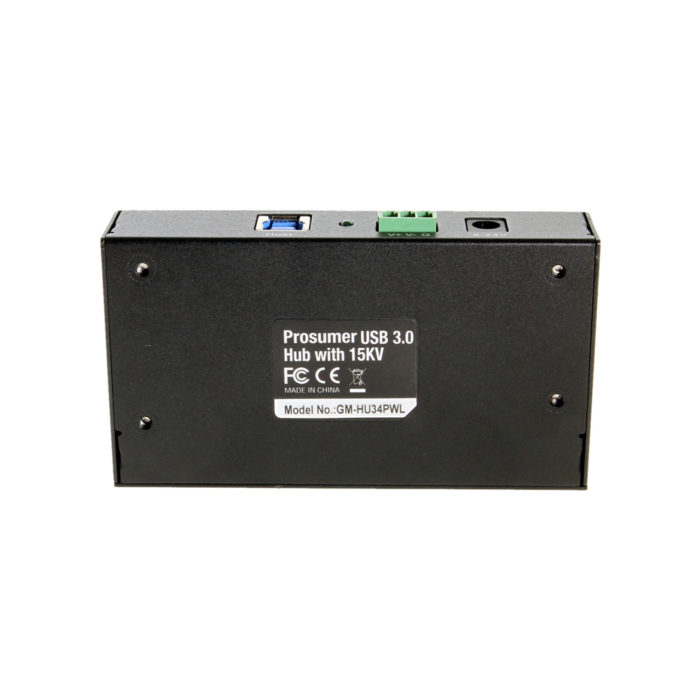

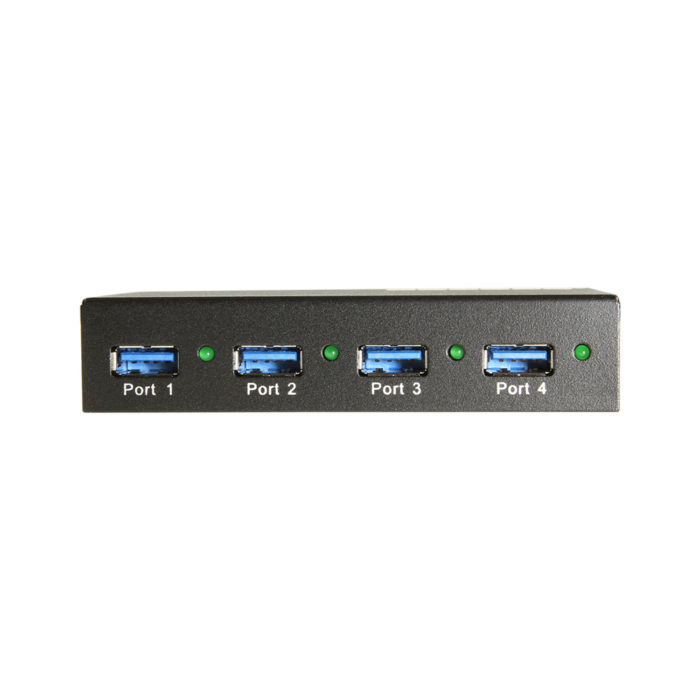

The GM-HU34PWL Gearmo USB 3.0 4 port hub is an industrial metal hub that is meant for surface mounting environments. All downstream ports are located on the front panel while the Type-B upstream port is located on the back panel along with the Terminal power connection. The GM-HU34PWL USB 3.0 hub includes mounting bracket & screws for surface mounting applications. Compliant with USB 3.0 standards, data speeds up to 5Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.

The GM-HU34PWL is part of the Gearmo Prosumer series of hubs and includes a 12V / 2A power adapter to handle the power needed for industrial applications.

Gearmo USB 3.0 4 Port Prosumer Hub Features

  • Compliant with Universal Serial Bus 3.0 Specifications
  • Industrial-grade, rugged metal housing design
  • Redundant 9-24V DC power input
  • 15KV ESD USB Interface protection
  • Power input surge protection to 600W for each port
  • Over-current detection and protection circuit design
  • Wall mounting support
  • Item Dimensions: 108(L) x 59(W) x 23.5mm(H)
  • Item Weight: 7.4 oz (.46 lbs)
  • Approvals: FCC, CE

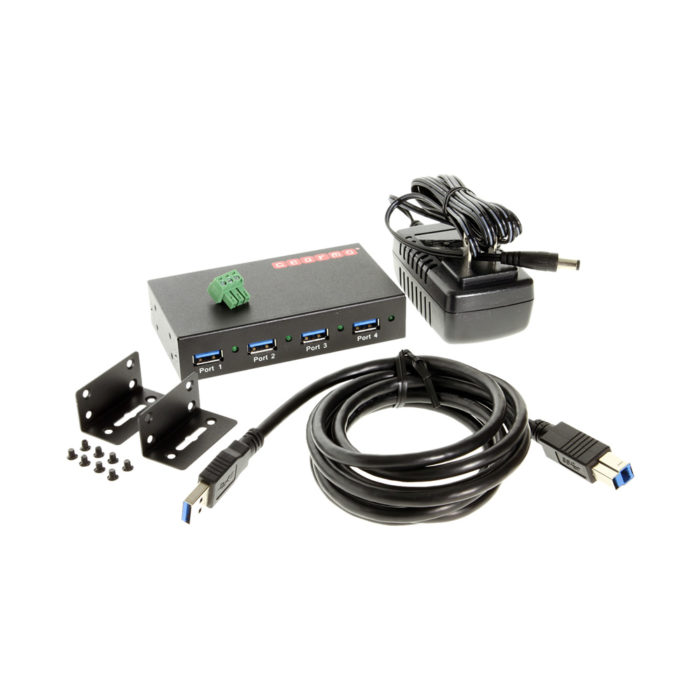

In the Box

  • Gearmo USB 3.0 industrial 4 Port Hub
  • 12V / 2A power adapter

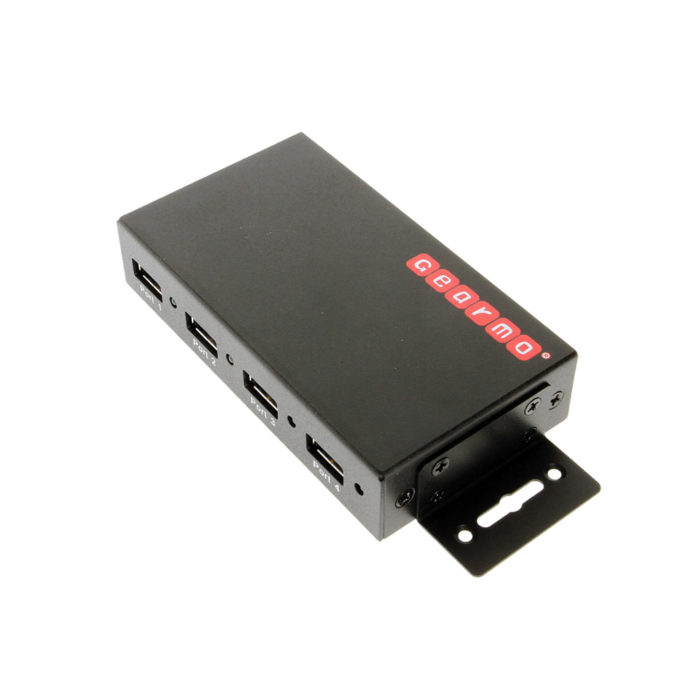

  • Surface Mounting Brackets
  • Mounting screws
  • 3-wire Terminal power connector
  • 6ft. USB 3.0 A to B cable

Additional information

Weight 1.24 lbs
Dimensions 7.437 × 6.750 × 2.500 in




Item Dimensions

108(L) x 59(W) x 23.5mm(H)


USB 3.0



Operating Temperature

0 – 50°C (32 – 122°F)
