10-Port USB 3.2 Gen 2 Type-C Industrial Surface & DIN-Rail Mount Hub w/ ESD Surge Protection
$146.29
Extensive Connections: Expand your host system’s peripheral capabilities with 10 USB Type-C ports with screw-locking capabilities.
Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.
Flexible Power: Power your way with a wide input voltage range of 9 ~24V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.
Upstream: USB Type-C
Downstream: 10x USB Type-C
Power Input: 3-Pin Terminal Block, DC Barrel
Mounting Styles: Surface, Wall, and DIN-Rail
Support
Need pre or post purchase support? Reach out HERE.
Warranty
Gearmo offers a 1 Year Warranty from the date of purchase. Read more in our Terms & Conditions.

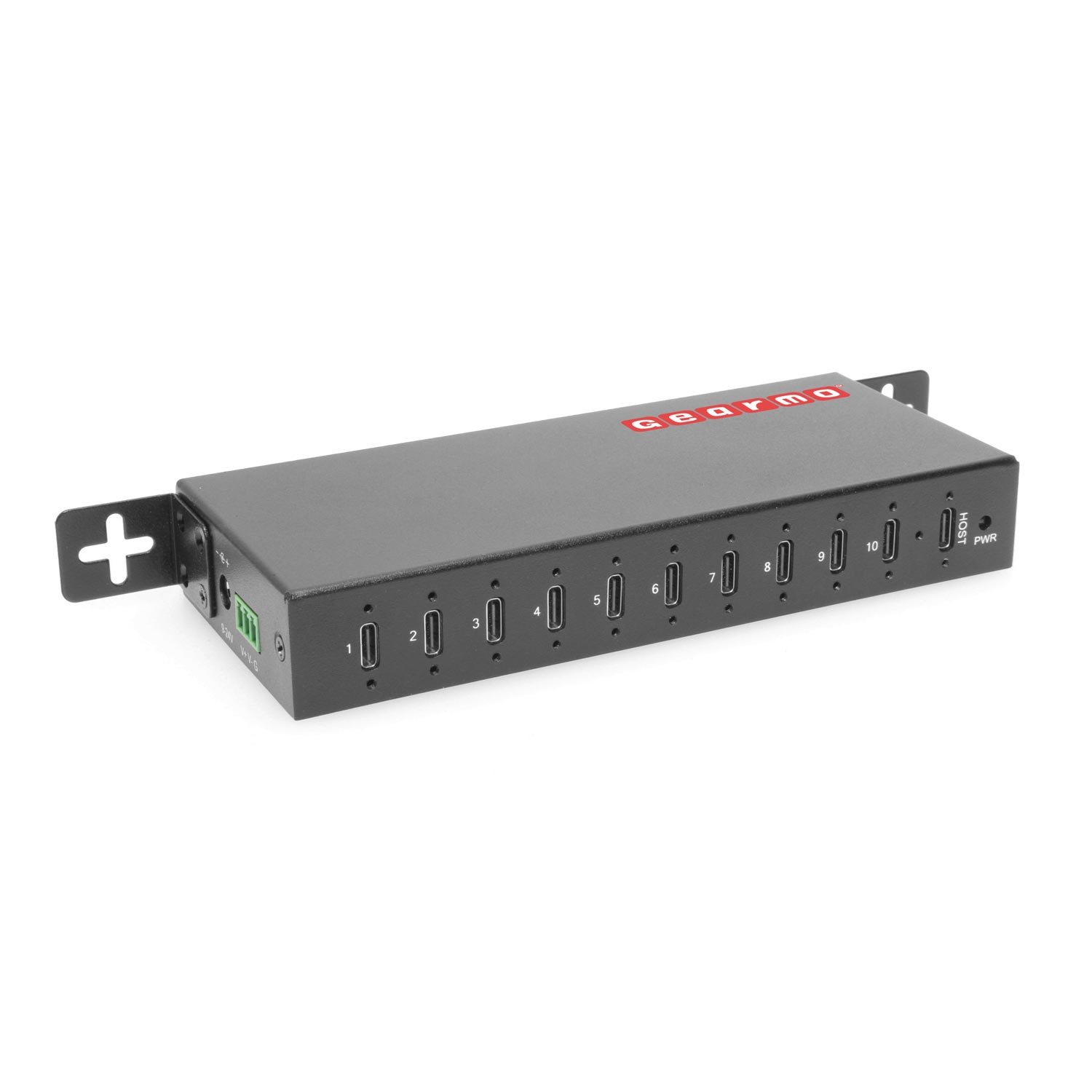

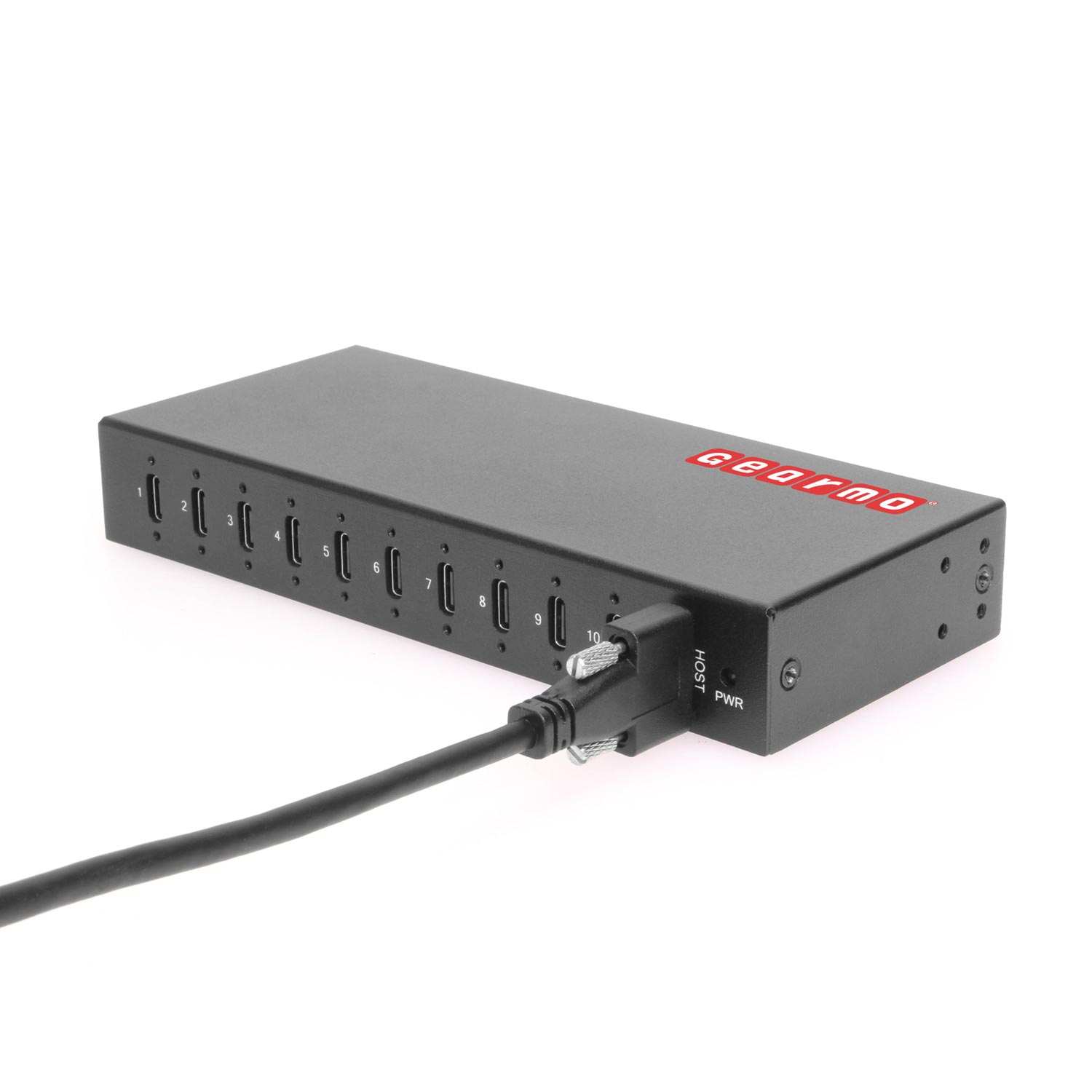

The GM-HU310C-DW Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 10 downstream USB Type-C ports. All ports, both downstream and upstream are conveniently located on the front facing panel along with the Terminal and barrel power connections. The GM-HU310C-DW USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.
Features:
- Adds 10 3.2 Gen 2 compliant USB Type-C ports
- Output: 10x USB-C with each 2.4A, total 57W max
- Rugged metal chassis with surface & DIN Rail mount support
- 9~24V DC power input with an included DC Barrel power supply
- LED indicators for each port to show connection confirmation
- Screw-locking ports
- Upstream USB Type-C port
- 15kV ESD protection for all USB ports
OS Support:
- Windows Vista, 7, 8, 10, Windows 11
- Mac OS 10.X
Package Contents:
- Industrial 10-Port USB 3.2 Gen 2 Type-C Industrial Hub
- User Manual
- Power Adapter with DC Barrel Connector
- USB Type-C to Type-C Screw-Locking Cable
- DIN-Rail & Wall Mounting Kit
- 3-Pin Terminal Block
- Screw Package
Additional information
| Weight | 1.74 lbs |
|---|---|
| Dimensions | 8.25 × 7.25 × 2.50 in |
| UPC | 045079164734 |
| Color | Black |
| ESD Protection | 15kV |
| Input Voltage | 9~24V DC |
| LED Indicators | Port Status, Power |
| Upstream Ports | 1x USB Type-C |
| Downstream Ports | 10x USB Type-C |
| USB Specification | USB 3.2 Gen 2 |
| Material | Steel |
| Power Source | 3-Pin Terminal Block |
| Supported OS | |
| Item Dimensions | 6.25 × 2.75 × 1.00 in. |
| Item Weight | 0.75 lbs. |
| Certifications | RoHS |
| Country of Origin | China |
