USB 3.0 7 Port Din Rail Mountable Hub Metal Chassis Power Adapter

Gearmo USB 3.0 7 Port Rugged Hub with Power Adapter

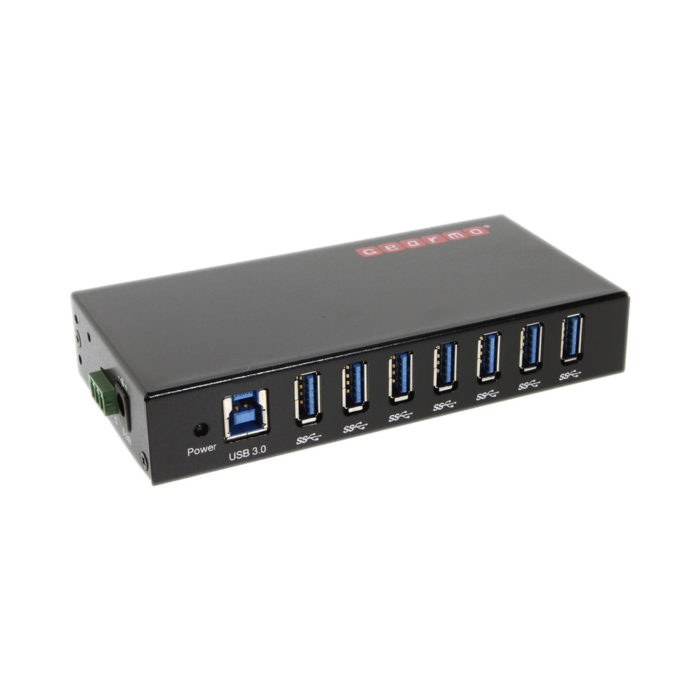

The (GM-HU37-PS) Super-Speed 7-Port USB 3.0 Hub is designed as a Super-Speed, rugged, industrial style hub with power adapter. Its mounting brackets and DIN-Rail mount hardware are included. GearMo’s USB 3.0 7 Port Super-Speed metal hub supports 7 USB 3.0 upstream port connections and 1 USB 2.0 Type “A” to “B” Downstream from the host computer. The GM-HU37-PS supports UASP function (with Windows 8 native USB 3.0 Host driver only)

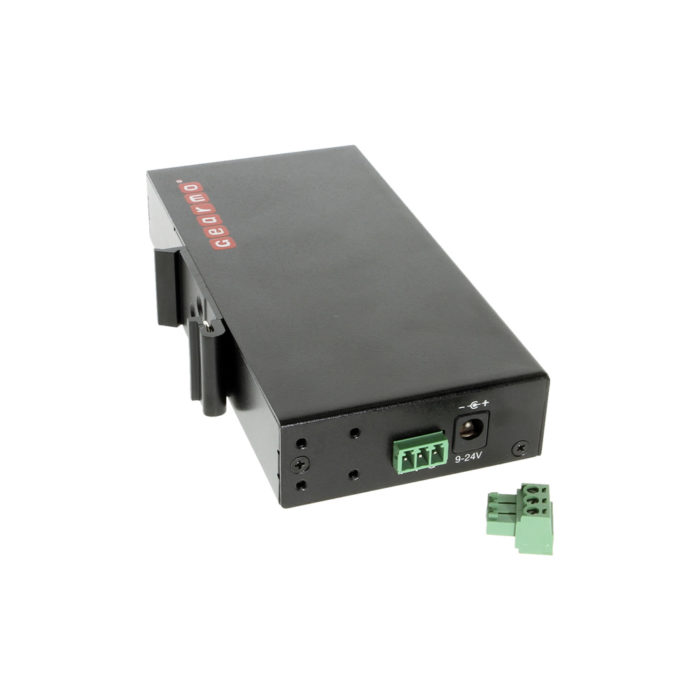

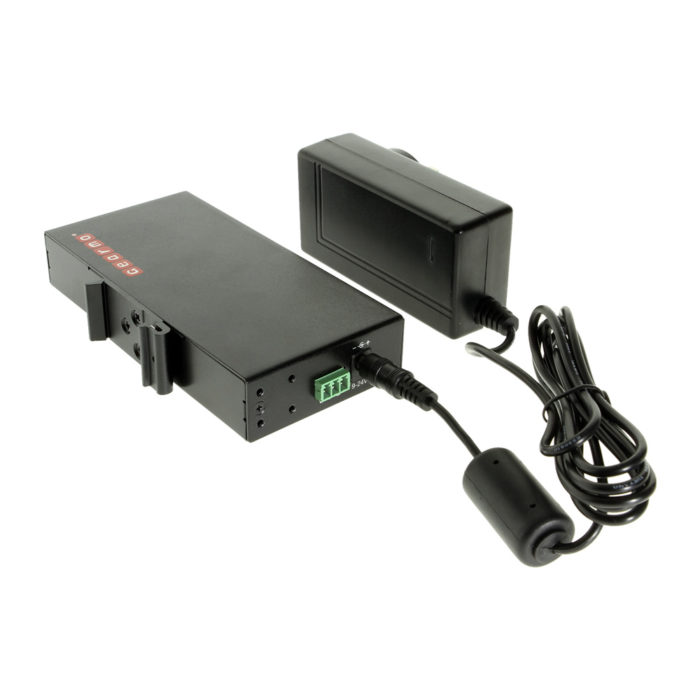

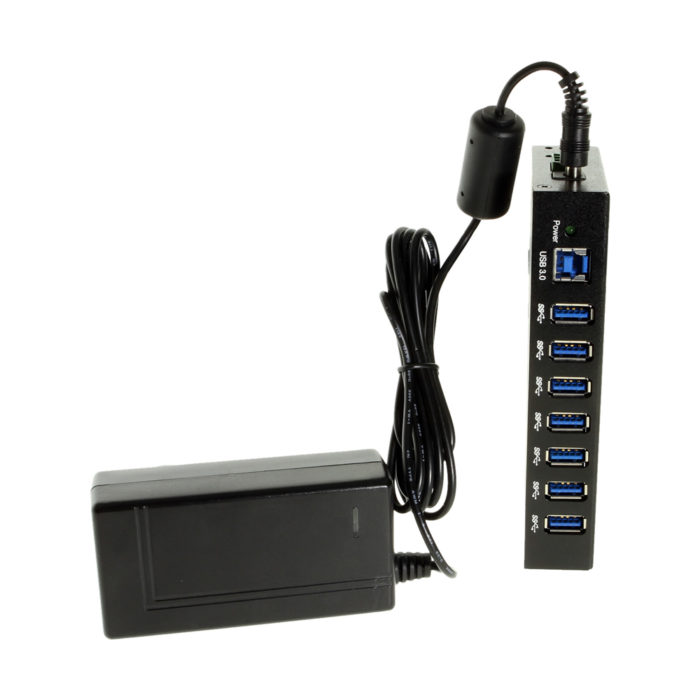

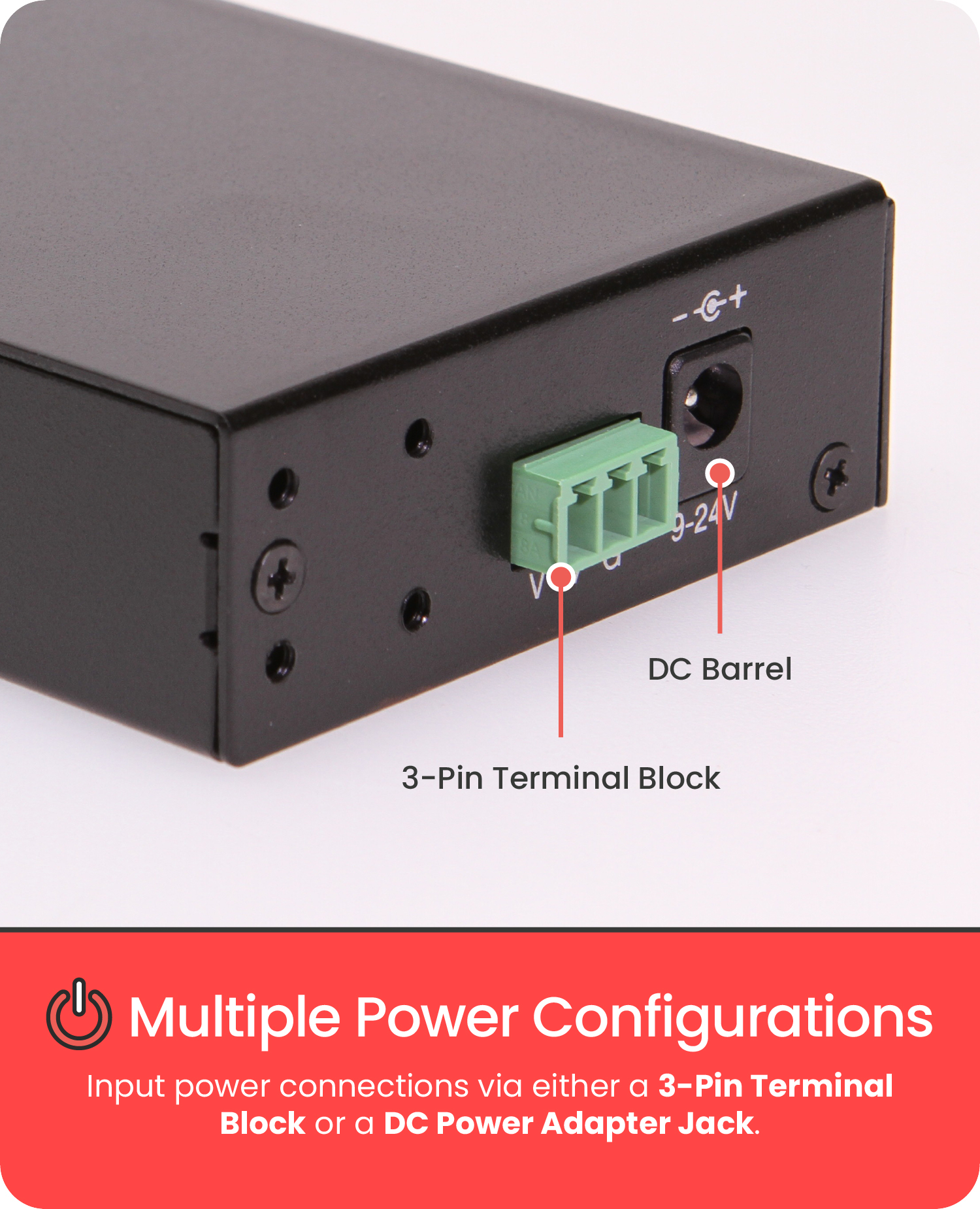

The USB 3.0 7-Port hub includes an optional 9-24V power jack receptacle for power consuming devices. It uses a separate 3-wire power connector for use with DIN-Rail mounted operations. The GearMo 7 port USB 3.0 industrial Hub includes independent over-current detection and, circuit protection, and Power input surge protection of 600W each port.

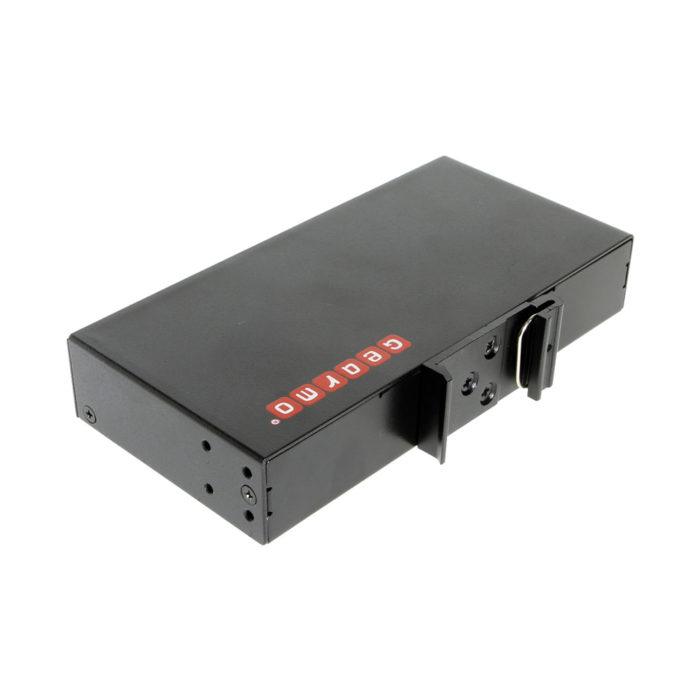

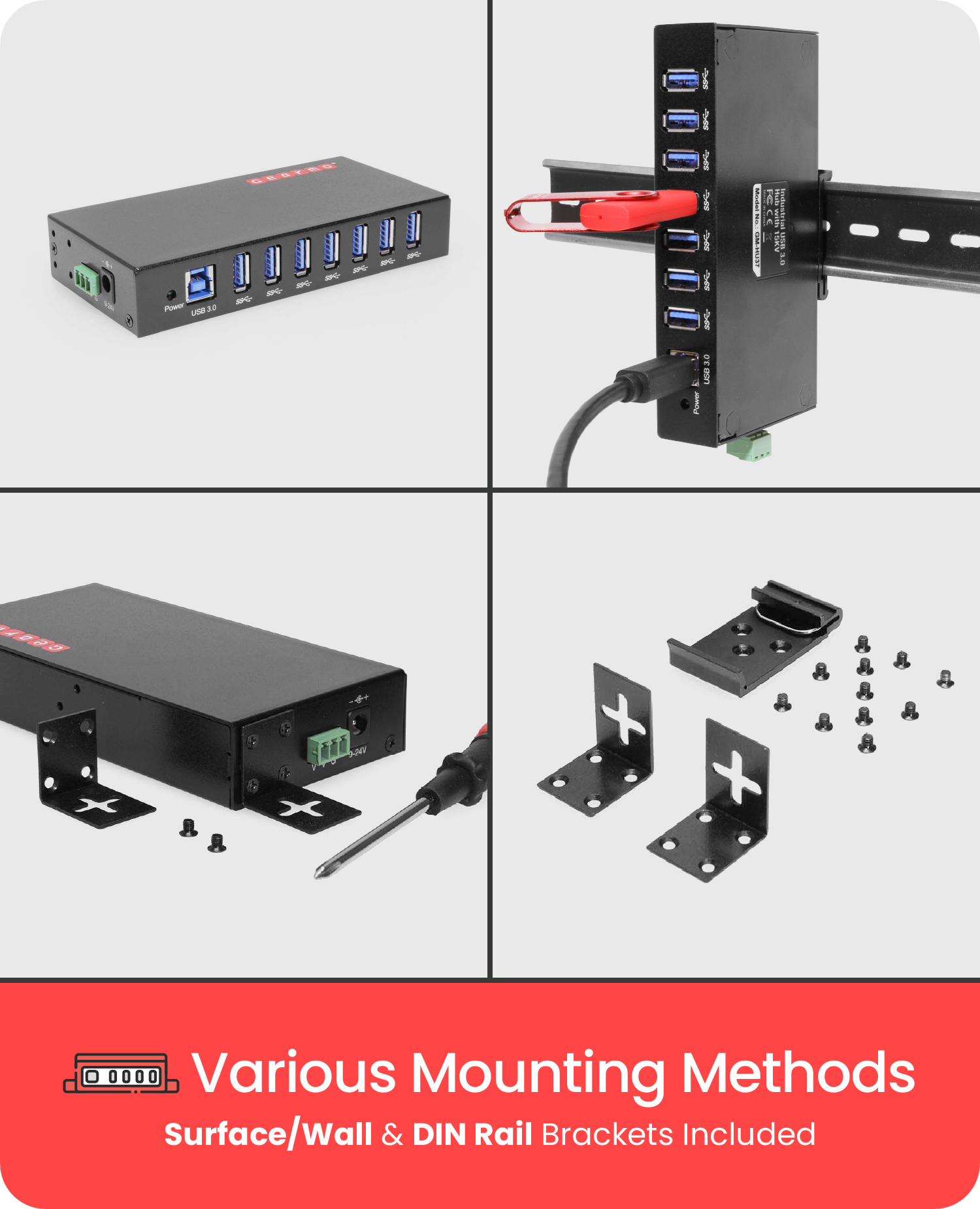

USB 3.0 7 Port Hub Mounting

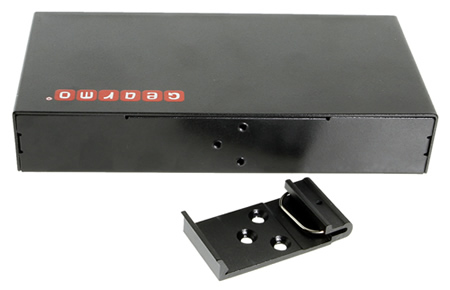

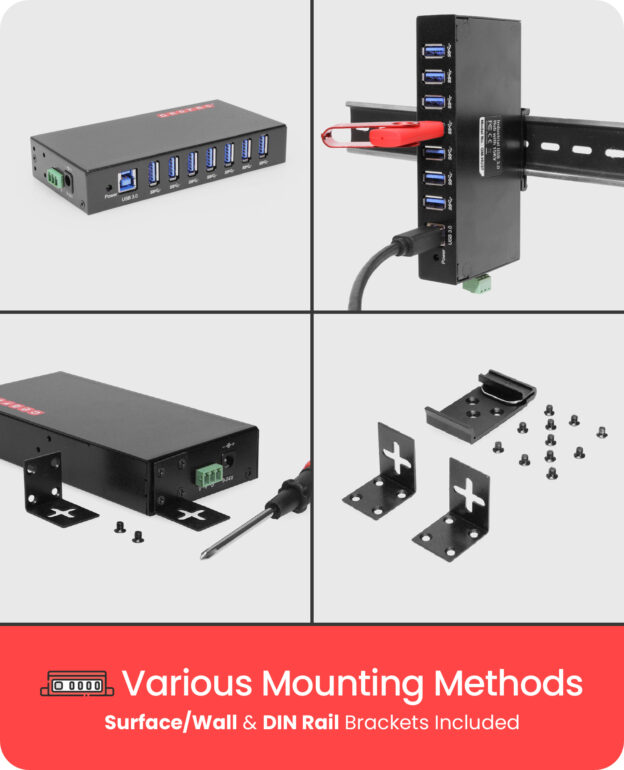

The USB 3.0 7 port Hub has multiple mounting options available depending on its usage and can be mounted via mounting brackets or Din Rail clip included. The GM-HU37-PS USB 3.0 hub includes all necessary hardware to securely mount it where its applications are needed.

Hub Features

• Compliant with Universal Serial Bus 3.2 Gen 1 Specifications
• Industrial-grade, rugged metal housing design
• Adds 7 USB 3.2 Gen 1 super-speed ports
• Redundant 9-24V DC power input

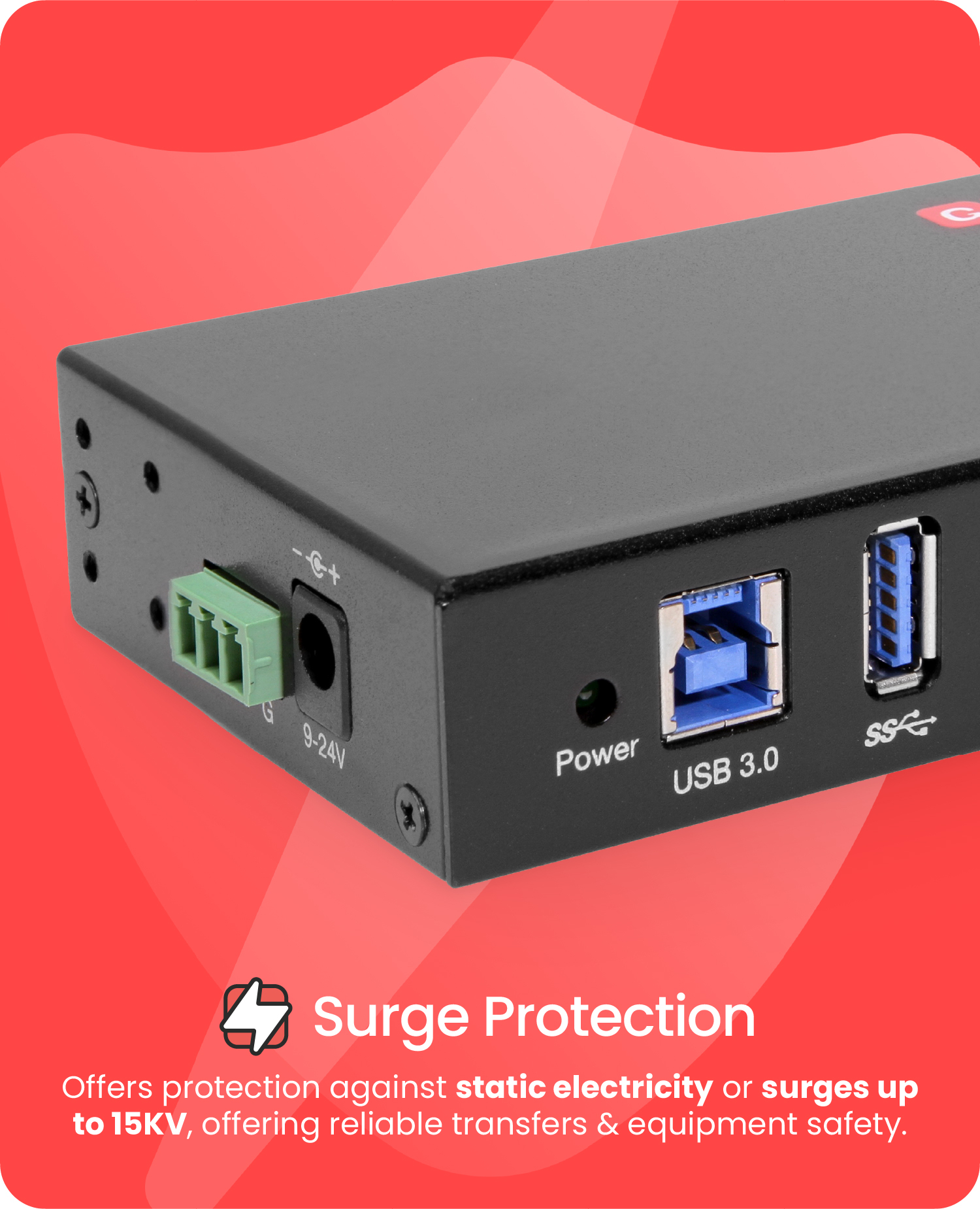

• 15KV ESD USB Interface protection
• Power input surge protection to 600W for each port
• Over-current detection and protection circuit design
• Wall and DIN Rail mount support
• Item Dimensions: 139 (W) x 68.97 (D) x 24.95mm (H)

Technical Specifications

• Chipset: VL817-Q7S chipset
• Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
• Compliant with Universal Serial Bus 3.0 Specification
• Maximum data transfer rate: 5Gbps
• Surge Protection: 600W (max)
• Metal housing with mounting mechanism
• Charging Protocols: SDP, CDP, DCP, Apple 2.4A
• Input Voltage: 9~24V DC
• Max Power: 42W
• Max Current: 2.4A
• Interfaces/Ports:
  • Input: 1, 9-pin, USB 3.0, Type B, Female
  • Input: 1, Terminal block (3-Wire), Power
  • Input: 1, DC power adapter jack (power adapter not included)
  • Output: 7, 9-pin, USB 3.0, Type A, Female

Operating system support

• Windows XP, Windows 7, Windows 8, Windows 10, Windows 11
• Mac OS X
• Linux

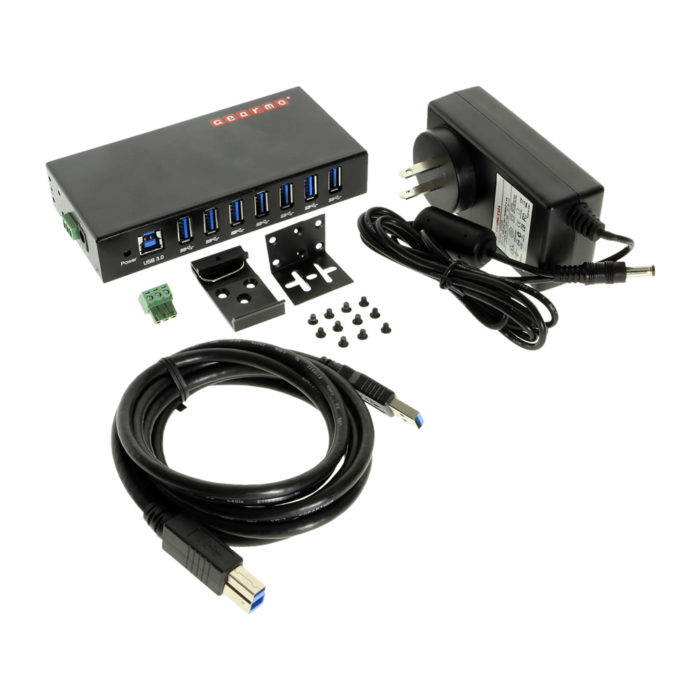

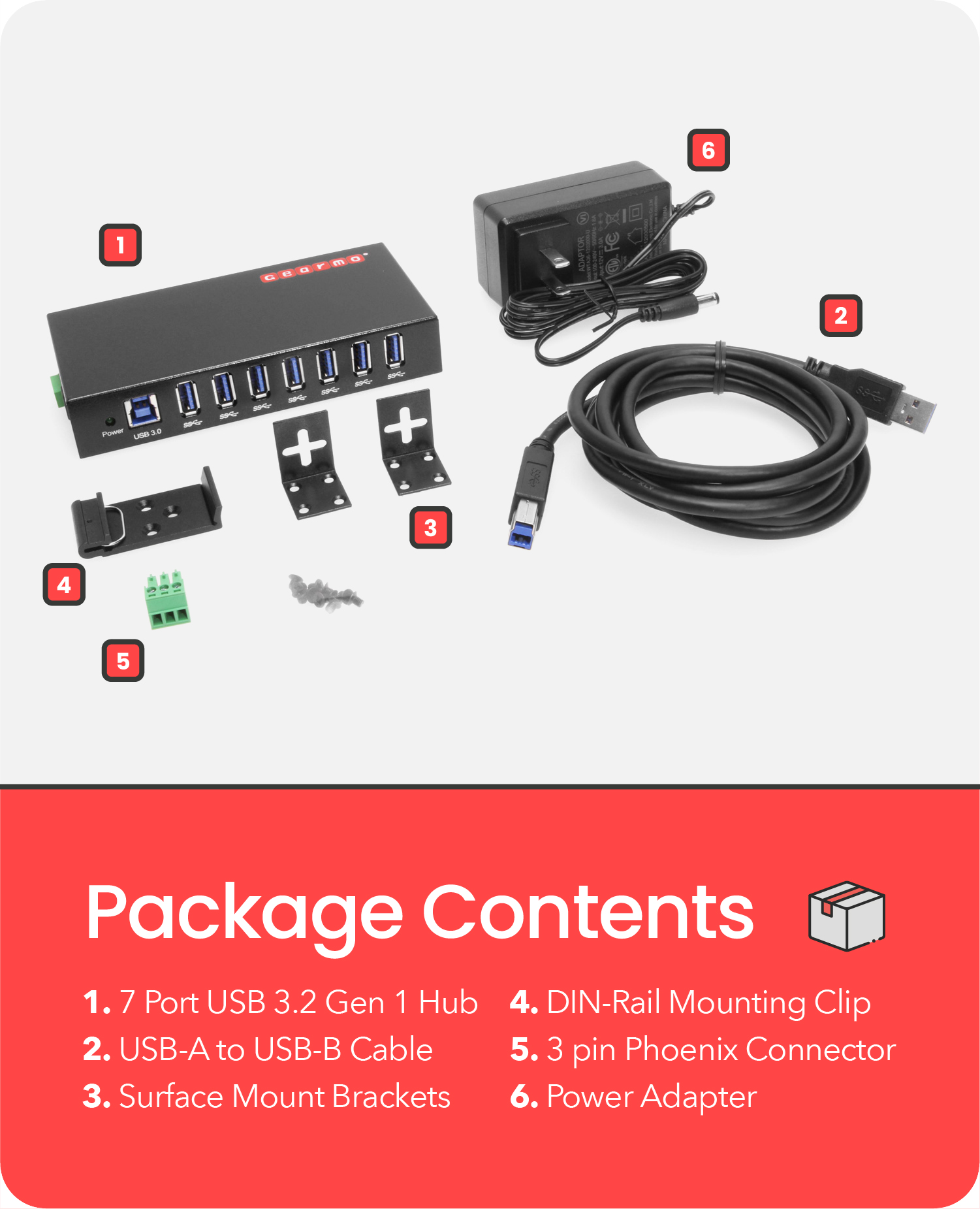

In the Box

• Gearmo USB 3.2 Gen 1 industrial 7 Port Hub
• Power adapter and Cord
• DIN Rail Clip
• Surface Mounting Brackets
• Mounting screws
• 3-wire Terminal power connector
• 6ft. USB 3.2 Gen 1 A to B cable
