4-Port USB 3.2 Gen 1 Slim Industrial Metal Hub w/15KV ESD Protection

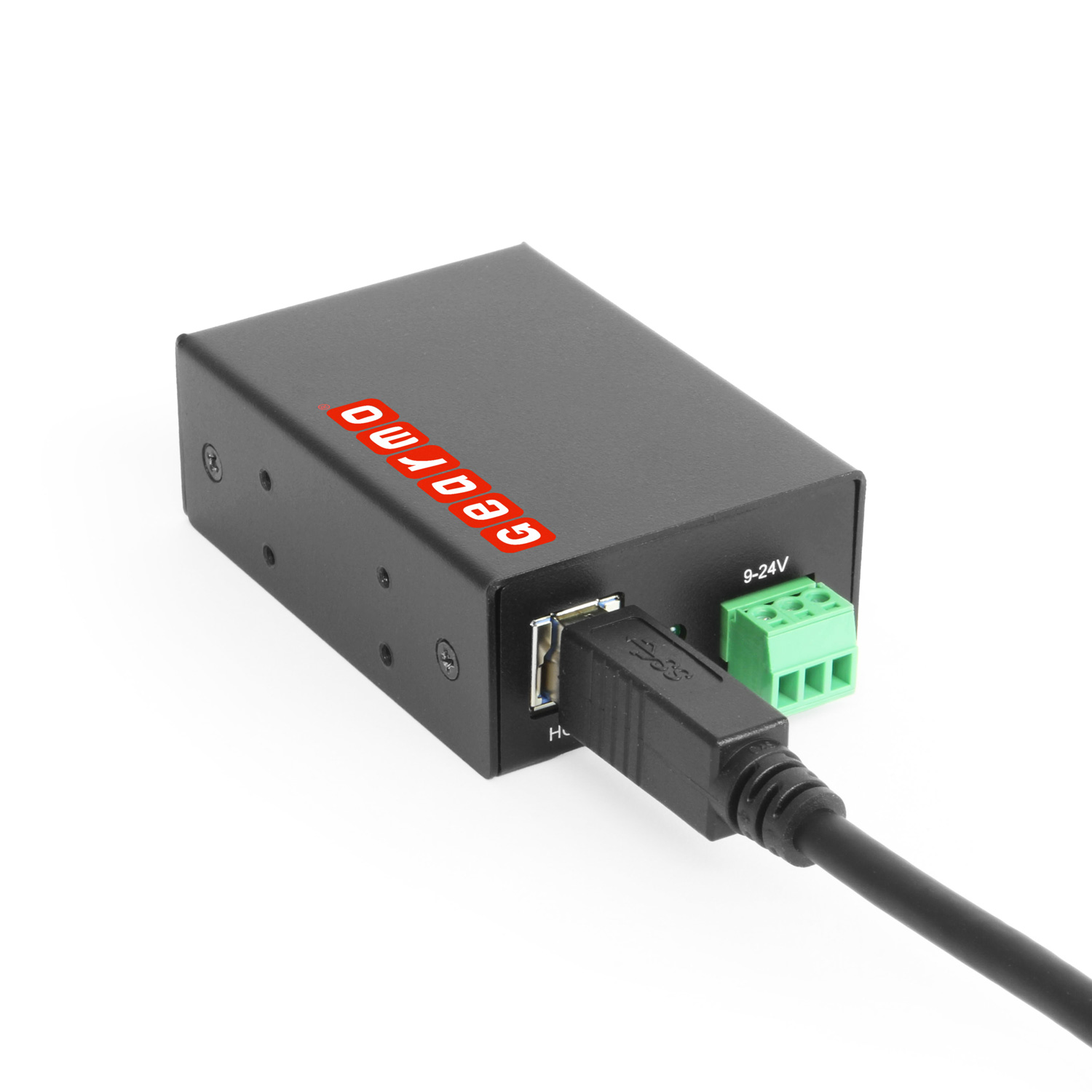

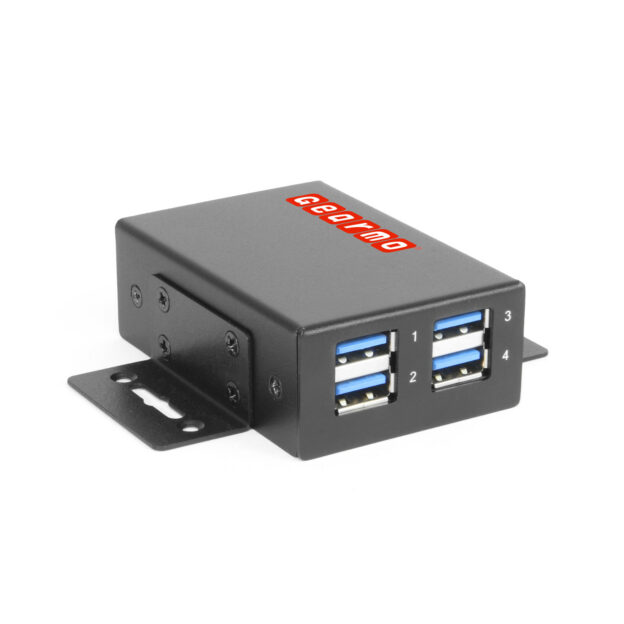

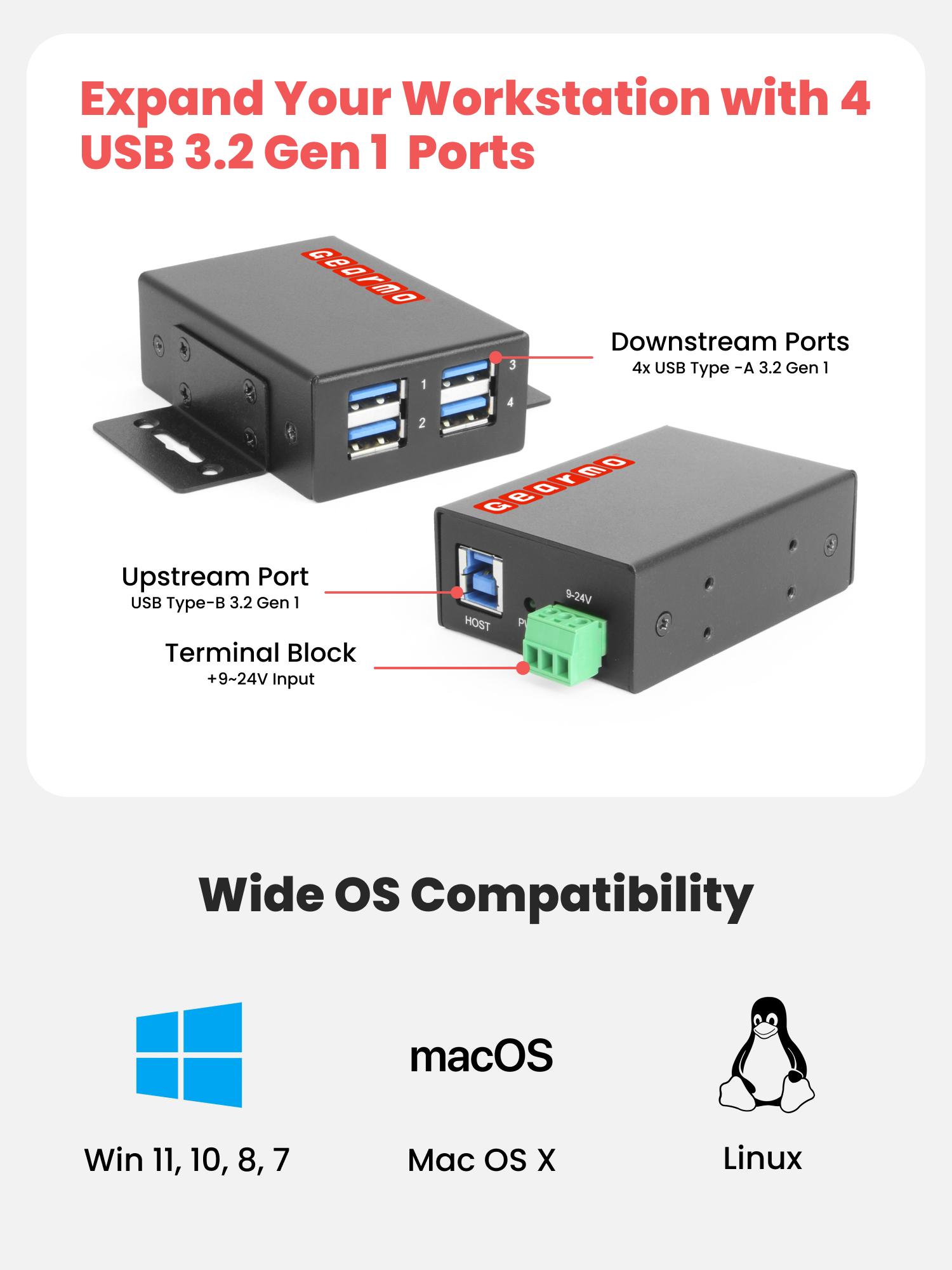

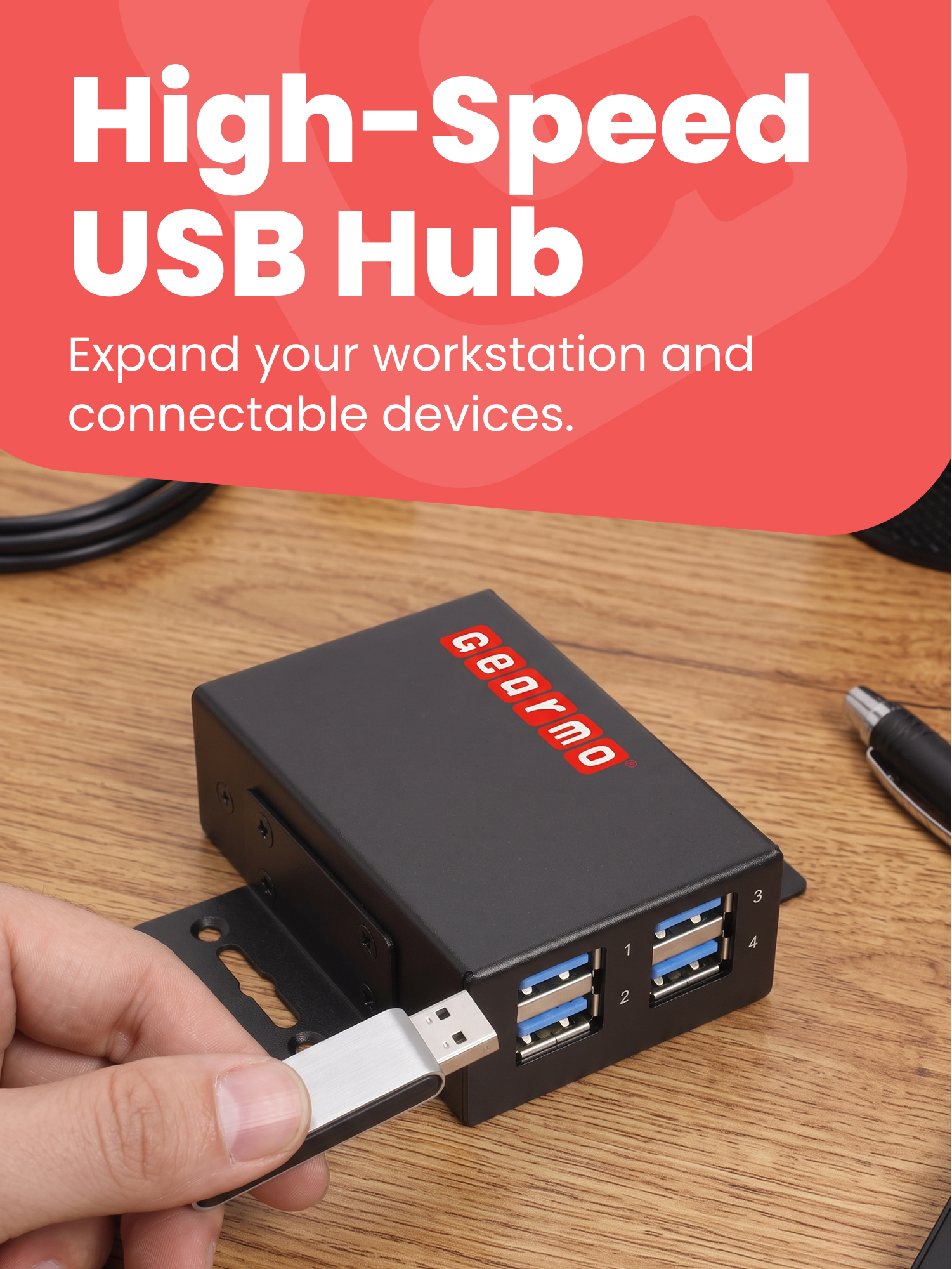

The GM-BA4XUH-M Gearmo USB 3.2 Gen 1 hub is an industrial metal hub with 4 downstream USB Type-A ports. All downstream ports are conveniently located on the front facing panel for ease-of-access. The GM-BA4XUH-M USB 3.2 Gen 1 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.0 (USB 3.2 Gen 1) standards, data speeds up to 5Gbps can be achieved and is backward compatible with USB 2.0 and 1.1. Its compact 1" tall footprint makes it easy to tuck into tight spaces, making installation a breeze in just about any setup. Power with an external source via the included 3-Pin terminal block.

Gearmo USB 3.2 Gen 1 Slim Hub Features

• Compliant with Universal Serial Bus 3.2 Gen 1 Specifications
• Industrial-grade, rugged metal housing design
• Redundant 9-24V DC power input
• Output current: 2.4A per port (Max), total 40W max
• 15KV ESD USB Interface protection
• Power input surge protection to 600W for each port
• Over-current detection and protection circuit design

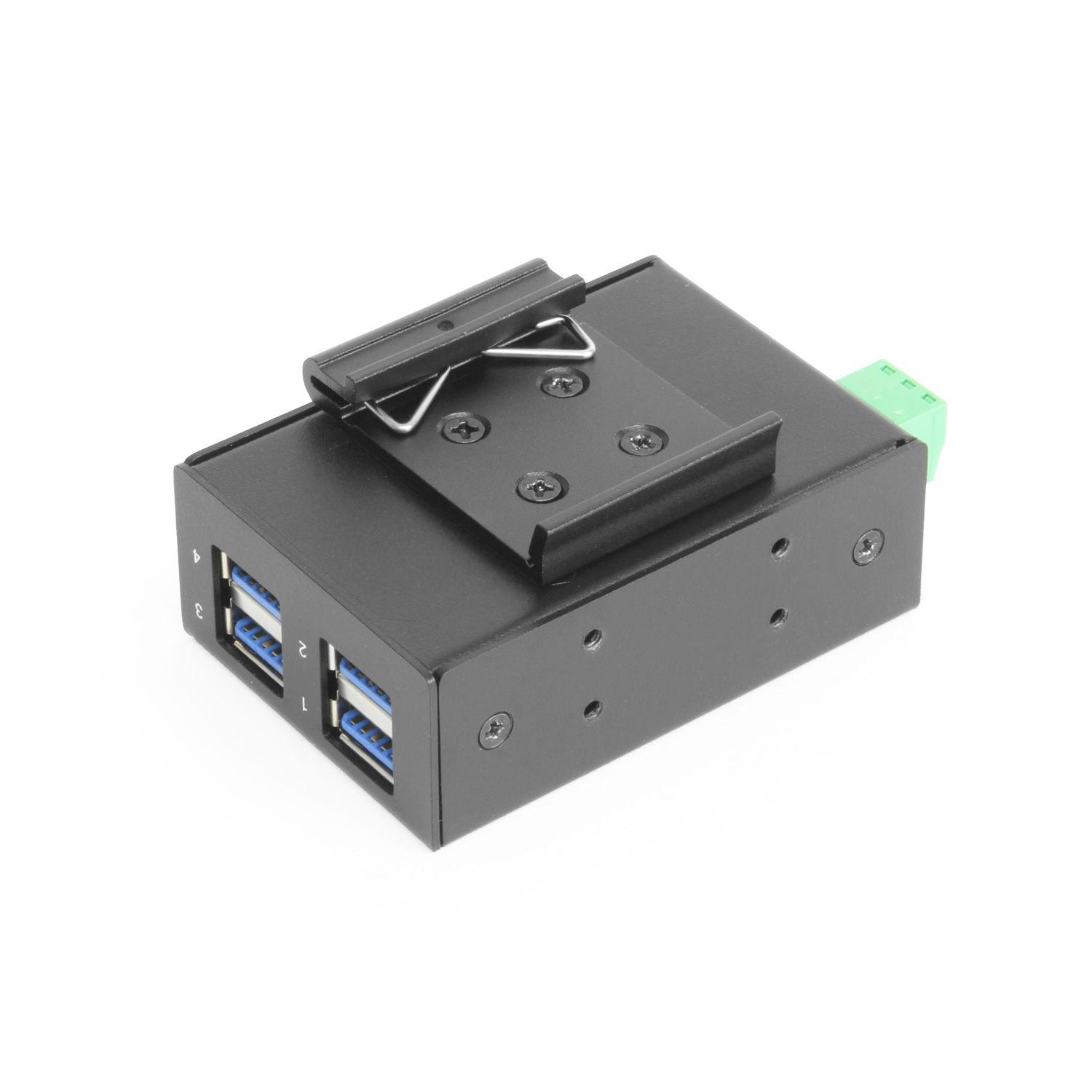

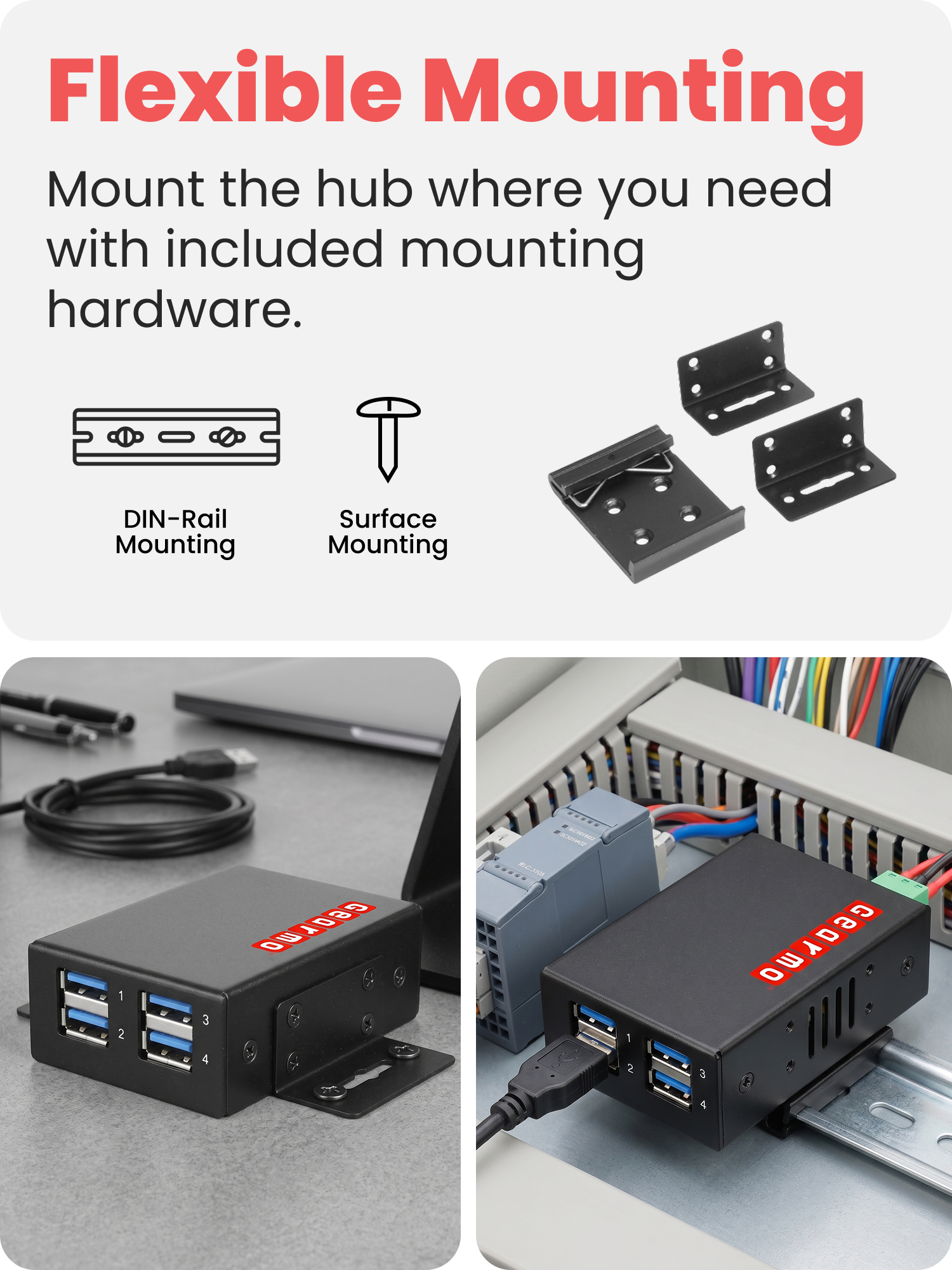

• Wall and DIN Rail mount support
• Chipset: VL817

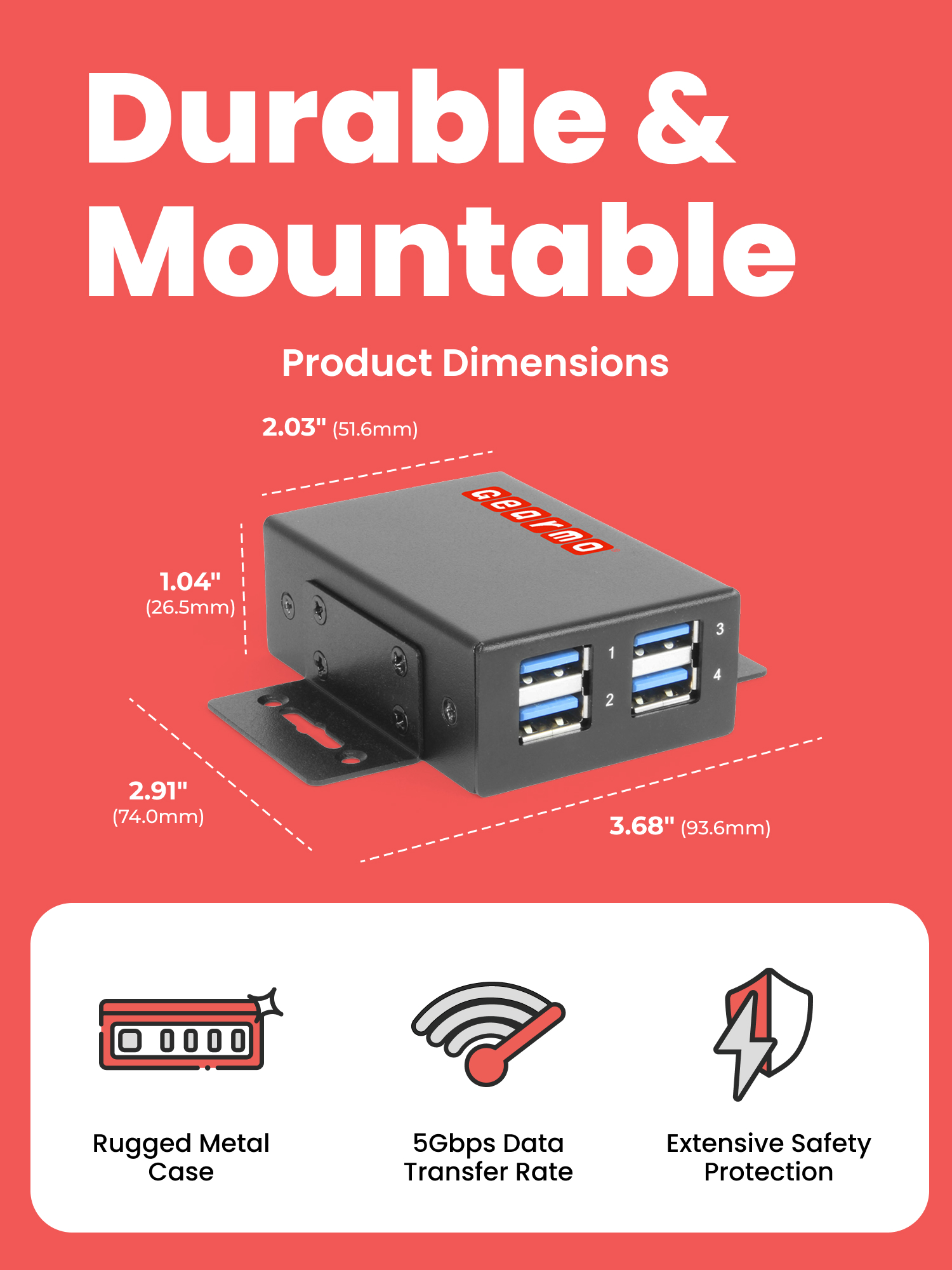

• Item Dimensions: 2.88 × 2.00 × 1.00 in.
• Approvals: RoHS, REACH

Operating system support

• Windows XP, Windows 7, Windows 8, Windows 10, Windows 11
• Mac OS X
• Linux

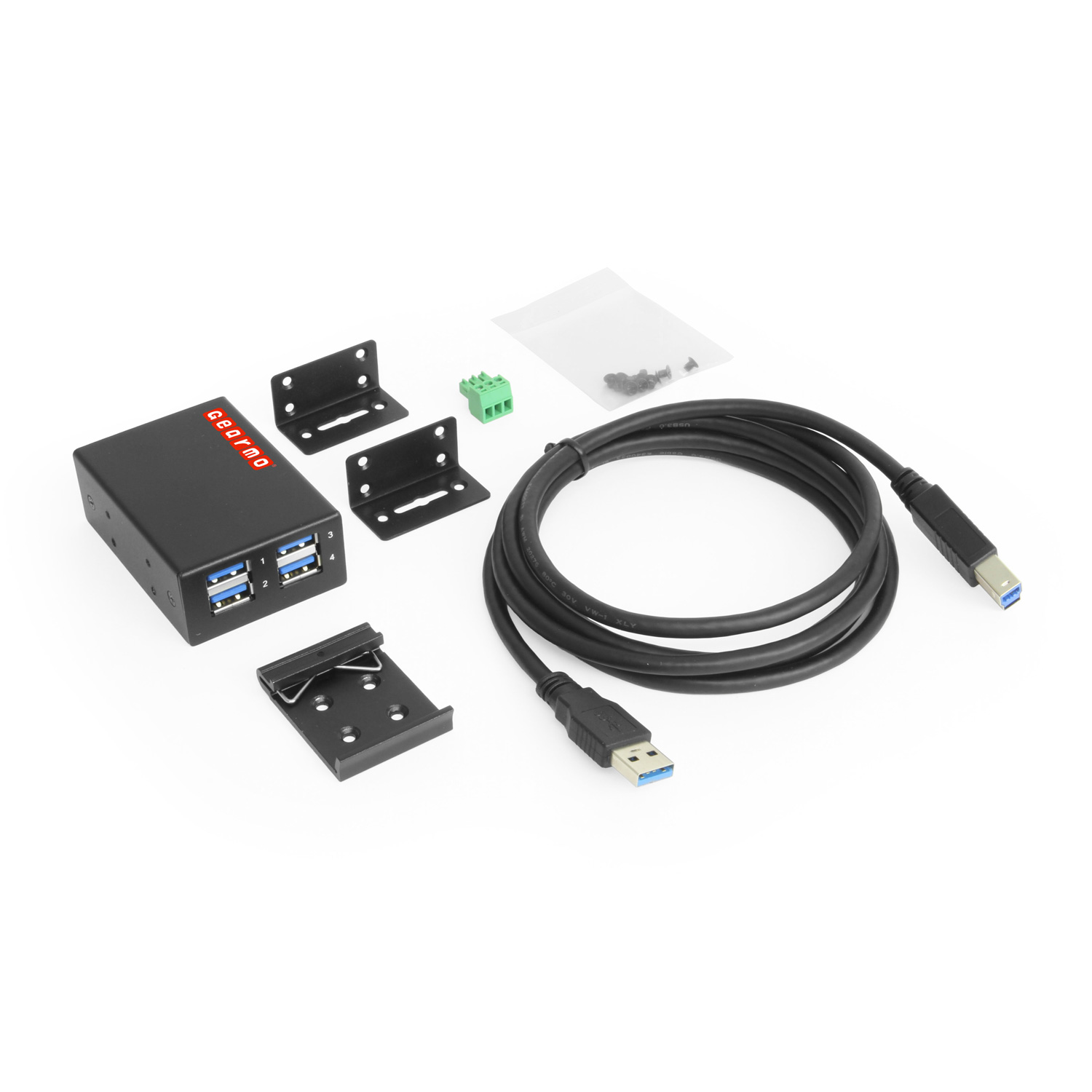

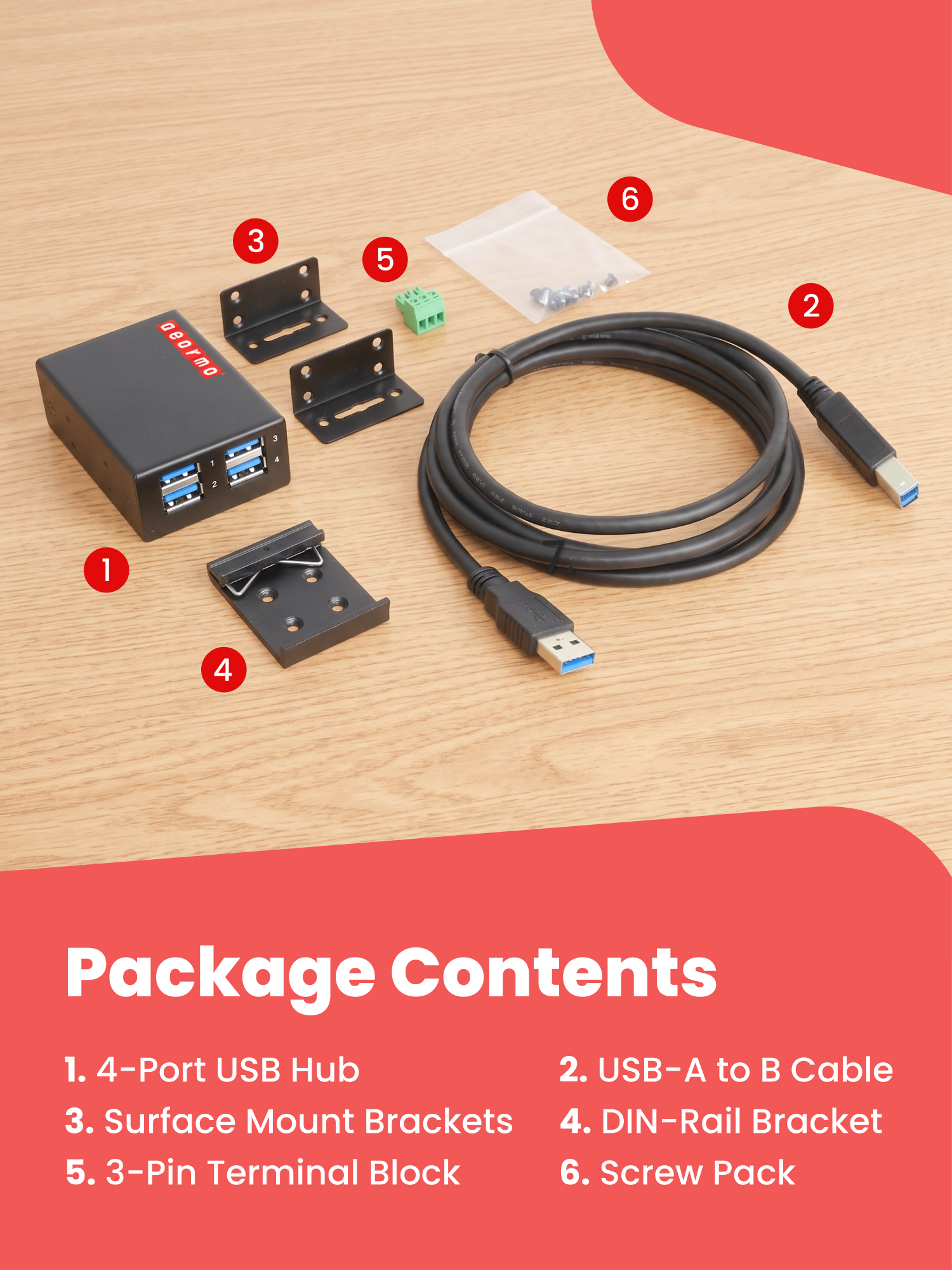

In the Box

• Gearmo USB 3.2 Gen 1 industrial 4 Port Hub
• DIN Rail Clip
• Surface Mounting Brackets
• Mounting screws

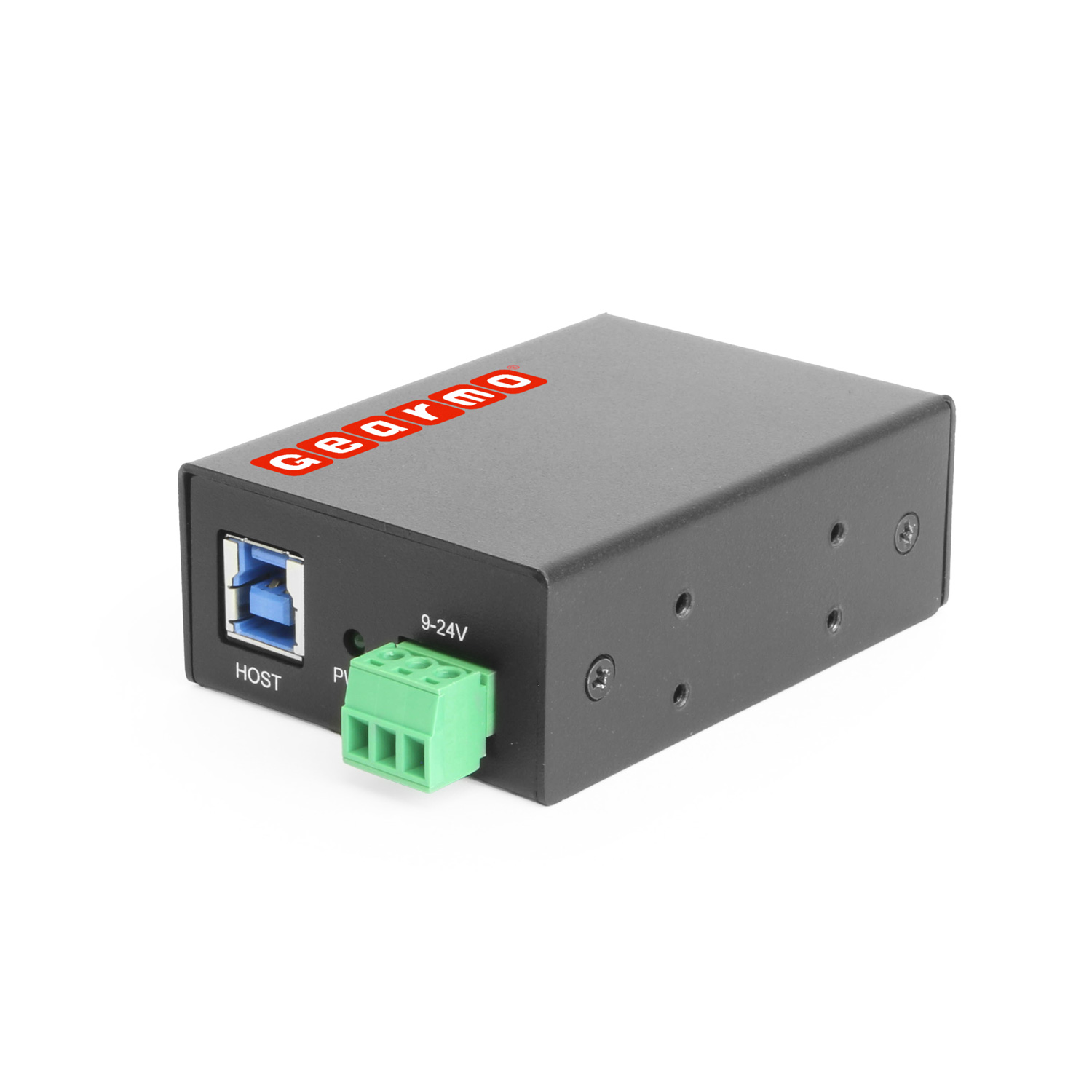

• 3-pin Terminal power connector
• 6ft. USB 3.2 Gen 1 A to B cable
