7-Port USB 3.2 Gen 2 2 Type-C 5 Type-A Industrial Surface & DIN-Rail Mount Hub w/ ESD Surge Protection


Extensive Connections: Expand your host system’s peripheral capabilities with 2 USB Type-C ports and 5 additional USB Type-A ports.

Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.

Flexible Power: Power your way with a wide input voltage range of 9 ~30V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.

Upstream: USB Type-C

Downstream: 2x USB Type-C, 5 USB Type-A

Power Input: 3-Pin Terminal Block, DC Barrel

Mounting Styles: Surface, Wall, and DIN-Rail


Product Documents

In stock

Model #: GM-HU37CA-DW Categories: , ,

Didn't Find What You Were Looking For? Support

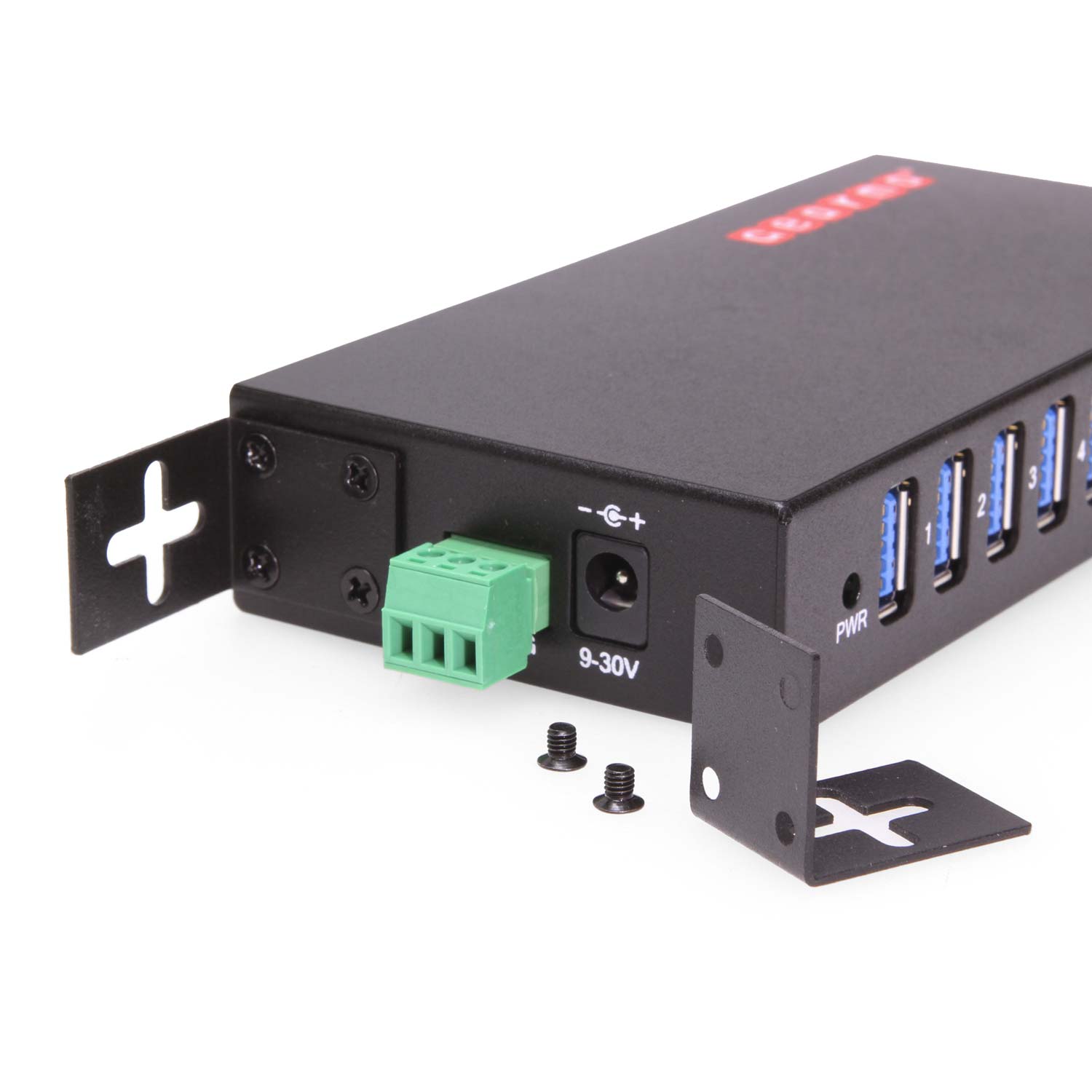

The GM-HU37CA-DW Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 2 downstream USB Type-C ports and 5 downstream USB Type-A port. All ports, both downstream and upstream are conveniently located on the front facing panel along with the Terminal and barrel power connections. The GM-HU37CA-DW USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 1 and Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.


  • Adds 2 3.2 Gen 2 compliant USB Type-C ports & 5 3.2 Gen 1 USB Type-A port
  • Output: 2x USB-C with each 2.4A, 4x USB-A with each 1A, 1x USB-A with 2.4A, total 56W max
  • Rugged metal chassis with surface & DIN Rail mount support
  • 9~30V DC power input with an included DC Barrel power supply
  • LED indicators for each port to show connection confirmation
  • Screw-locking ports
  • Upstream USB Type-C port
  • 15kV ESD protection for all USB ports

Package Contents:

  • Industrial 7-Port USB 3.2 Gen 2 Type-C & A Industrial Hub
  • User Manual
  • Power Adapter with DC Barrel Connector
  • USB Type-C to Type-C Screw-Locking Cable
  • DIN-Rail & Wall Mounting Kit
  • 3-Pin Terminal Block
  • Screw Package

Additional information

Weight 1.25 lbs
Dimensions 7.38 × 6.75 × 2.50 in




ESD Protection


Input Voltage

9~30V DC

LED Indicators

Port Status, Power

Upstream Ports

1x USB Type-C

Downstream Ports

2x USB Type-C, 5x USB Type-A

USB Specification

USB 3.2 Gen 1, USB 3.2 Gen 2



Power Source

3-Pin Terminal Block

Supported OS

, , , , ,
