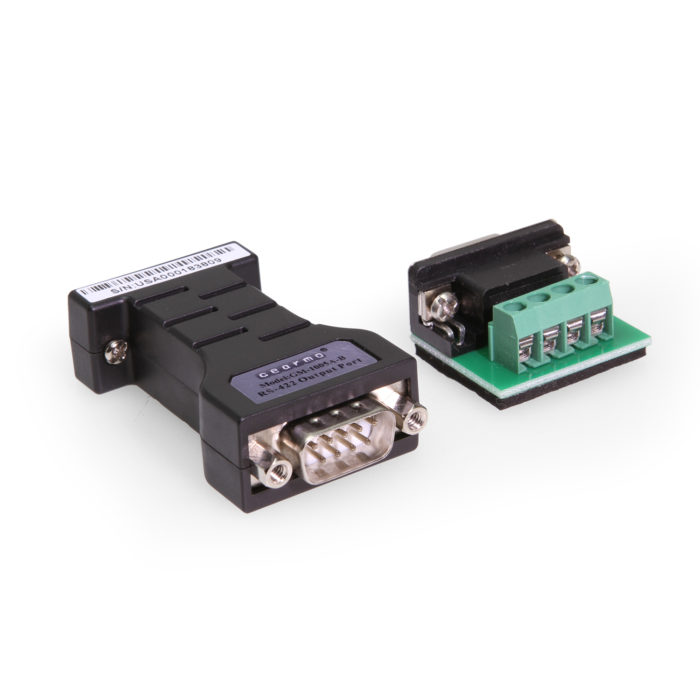

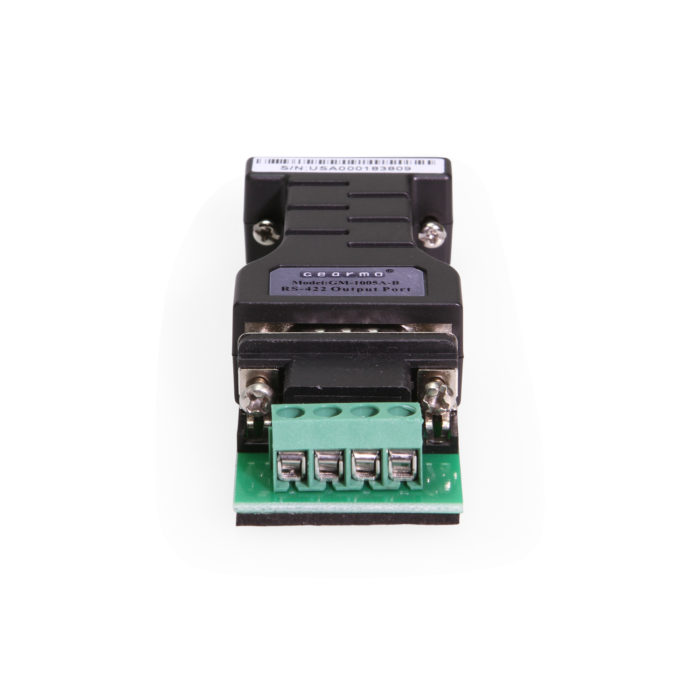

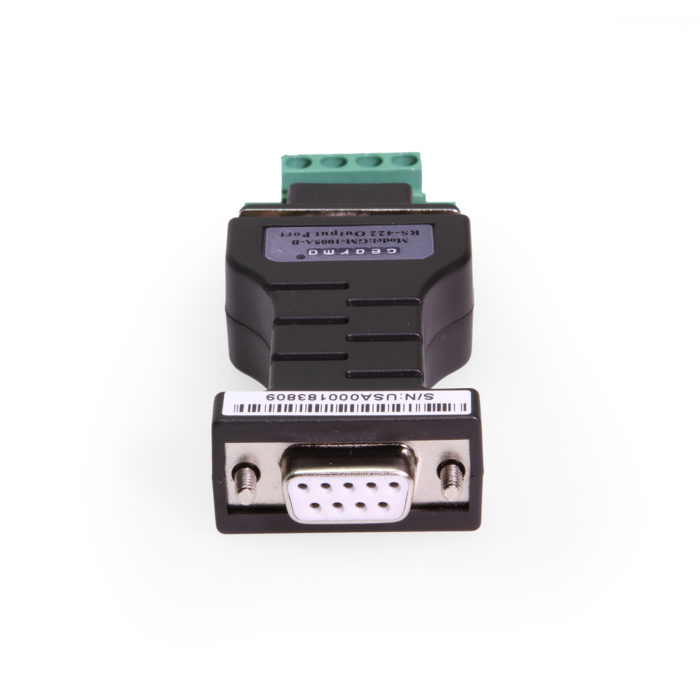

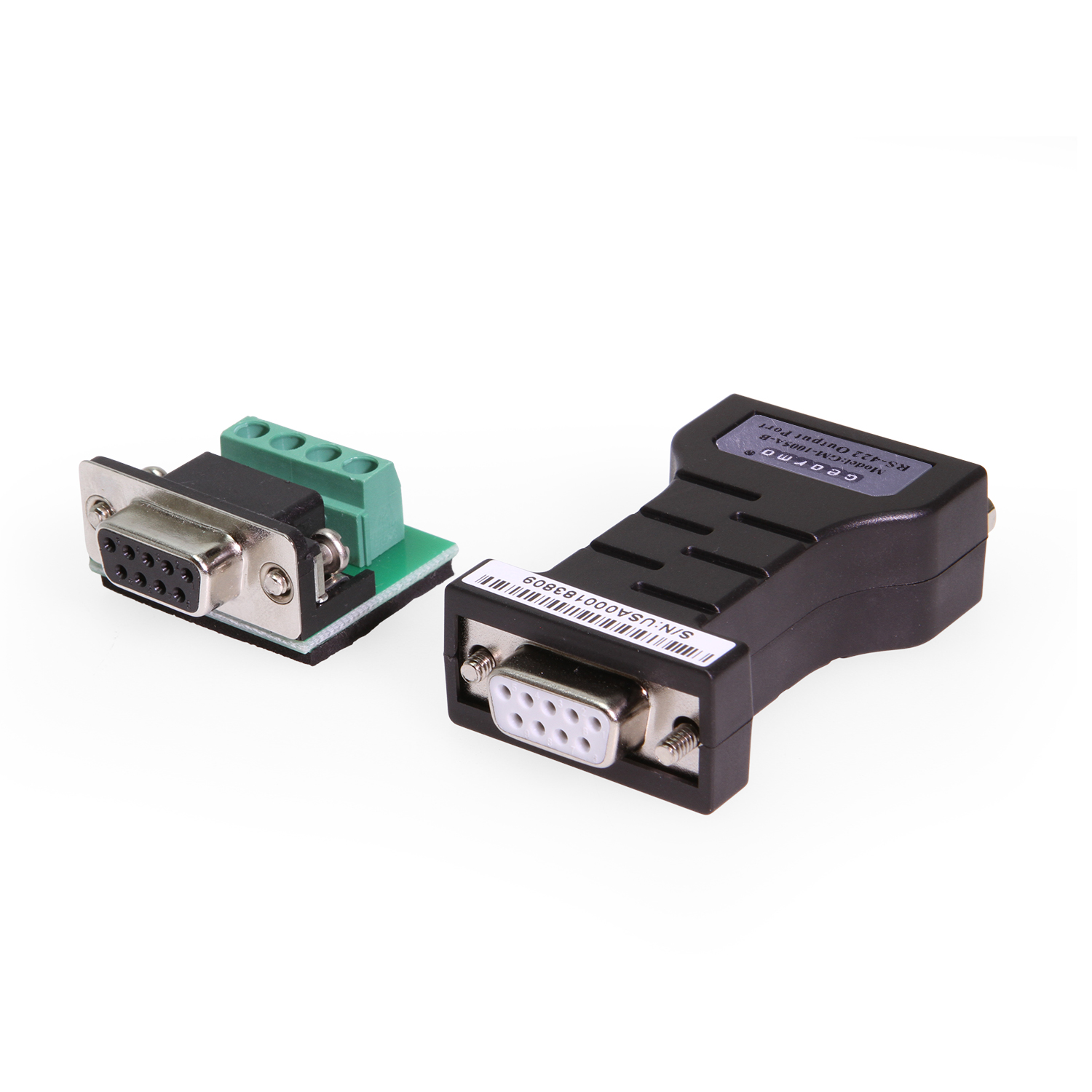

Industrial RS-232 to RS-422 Converter with Terminal Block

$24.99

The GM-1005A-B converts RS-232 signals into balanced differential RS-422 signals. The transmission distance of RS-232 communication can be extended to 1.2km.

  • Transmission media: twisted-pair or shielded cable
  • Baud rate: 300bps-115.2kbps
Model #: GM-1005A-B Categories: ,

Description

For communication between PC with different standard serial port and external equipment or intelligent instruments, standard serial conversion is necessary. The GM-1005A-B converter is compatible with RS-232C, RS-422 standards. It converts RS-232 signals into balanced differential RS-422 signals. The transmission distance of RS-232 communication can be extended to 1.2km. It adopts unique “RS-232” charge pump technology to drive the system, and gains power without initializing RS-232 serial port. This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); this guarantees that there is no need to modify the programming under RS-232 full duplex mode, it will run smoothly under RS-322 mode, ensure to suitable for current software and hardware. The transmission rate is 300-115.2kbps. It can be used between hosts, host and SCM, which building a point to point, point to multi-point long-distance communication networking. It is widely applied in industrial automation control system, all-in-one card, access control system, parking system, ATM system, bus charging system, canteen ticketing system, attendance system, and toll station system, etc.



Features:

  • Standards: RS-232C, RS-422 EIA/TIA
  • RS-232 DB9 female connector, RS-485 DB9 male connector, with terminal block
  • Operating mode: asynchronous full-duplex, differential transmission
  • Transmission media: twisted-pair or shielded cable
  • Baud rate: 300bps-115.2kbps
  • Operating temperature: -40℃ to 85℃
  • Relative humidity: 5% to 95%
  • Transmission distance: 1,200m (RS-422); 5m (RS-232)

Additional information

Weight 0.07275 lbs
Dimensions 7.6585 × 5.7620 in
Color

Black

Material

Plastic

Item Dimensions

2.48 × 1.30 × 0.67 in.

UPC

045079162587
