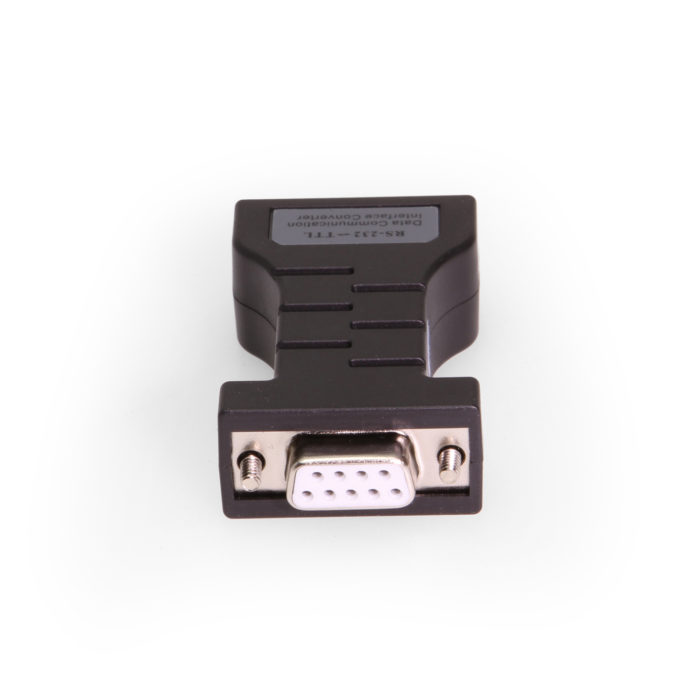

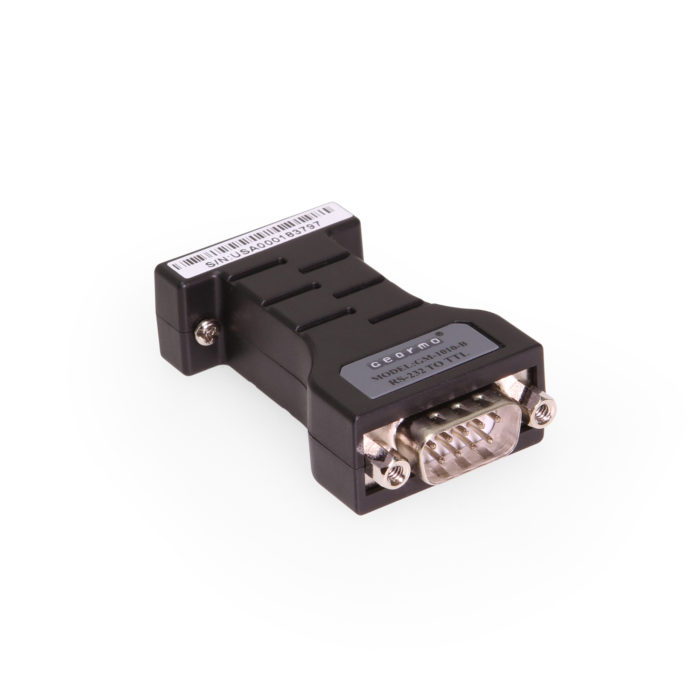

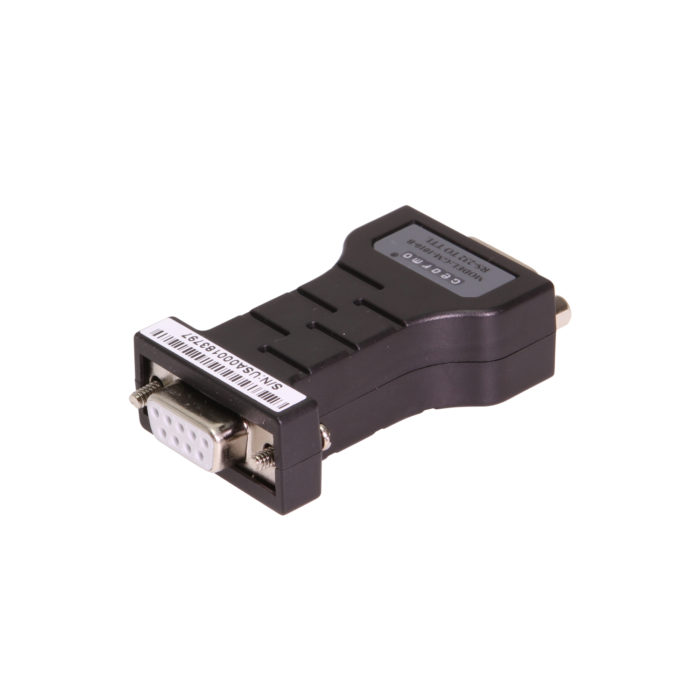

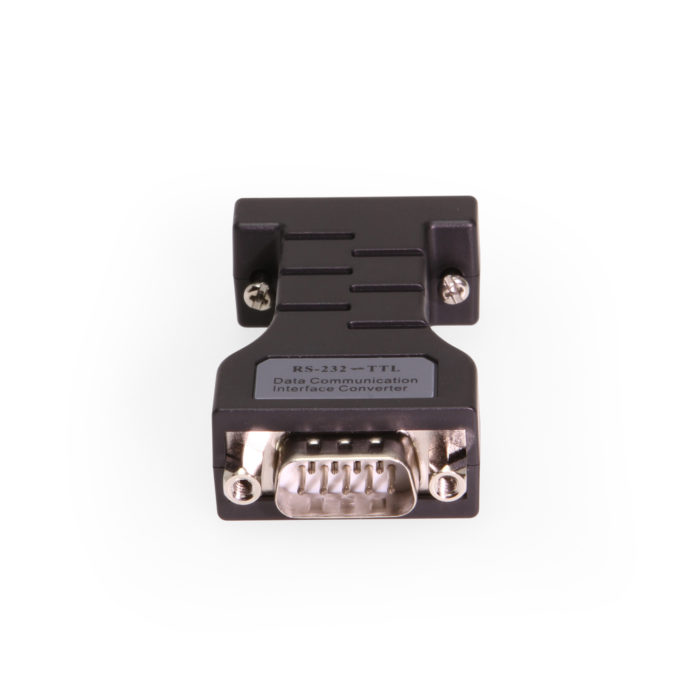

RS-232 to TTL Converter 5V output

$22.99

The GM-1010-B interface converter converts data (TXD,RXD) of RS-232C to TTL/COMS; the TTL electrical level is 0-5V, without an external power supply.

  • Works with all communication software, plug & play
  • Baudrate: 300bps-115.2Kbps

In stock

Model #: GM-1010-B Categories: ,

Description

The GM-1010-B interface converter converts data (TXD,RXD) of RS-232C to TTL/COMS; the TTL electrical level is 0-5V, without an external power supply. It adopts unique “RS-232 charge pump” technology to drive the system, and gains power without initializing RS-232 serial port, with internal zero delay auto transceiver and unique I/O circuit data flow direction automatic control, there is no need any handshake signals(such as RTS, DTR, etc), and this guarantees that there is no need to modify the programming under RS-232 full-duplex mode, it will runs smoothly and compatible with current software and hardware under TTL mode. The baud rate is 300-115.2Kbps.



Features:

  • Mini size, DB9 connector
  • Standards: RS-232 TIA/EIA, TTL & electrical level data interface
  • Power: port-powered over RS-232/485/422, no need external connected & serial port initialization, real TXD/RXD/GND communication
  • Baudrate: 300bps-115.2Kbps
  • Works with all communication software, plug & play
  • Supports all operating system
  • Model with handshaking signal can be customized
  • Operating temperature: -40℃ to 85℃
  • Relative humidity: 5% to 95%

Additional information

Weight 0.06875 lbs
Dimensions 7.6585 × 5.7620 in
UPC

045079162648

Color

Black

Item Dimensions

2.441 × 1.339 × 0.709 in.

Material

Plastic
