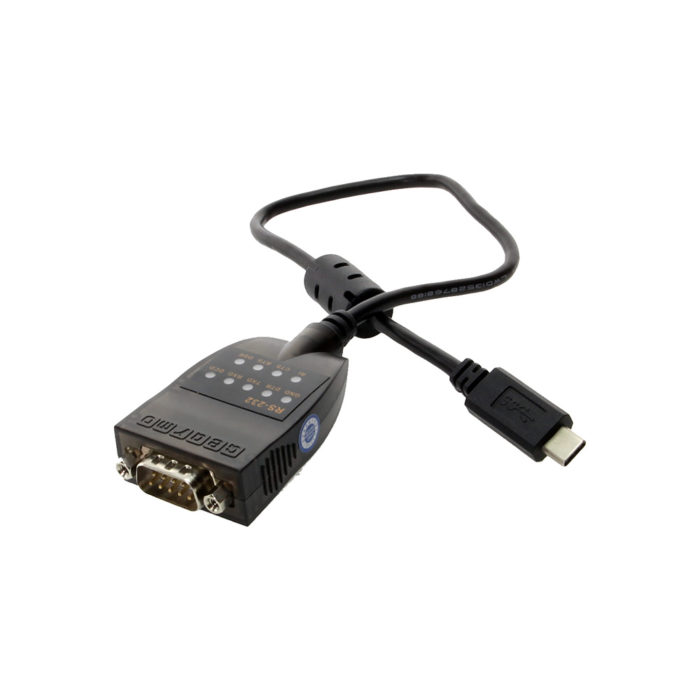

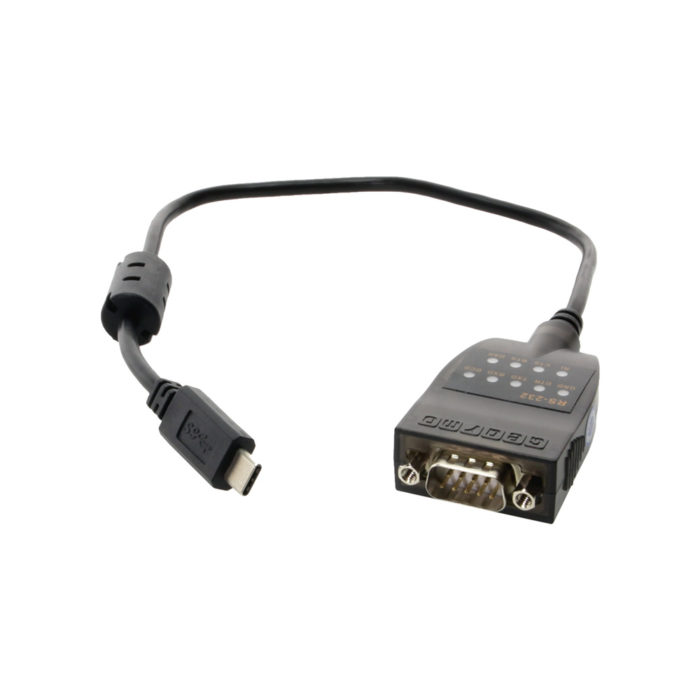

USB-C 2.0 to Serial RS-232 16 Inch Adapter w/ LED Indicators

(1 customer review)

$37.95

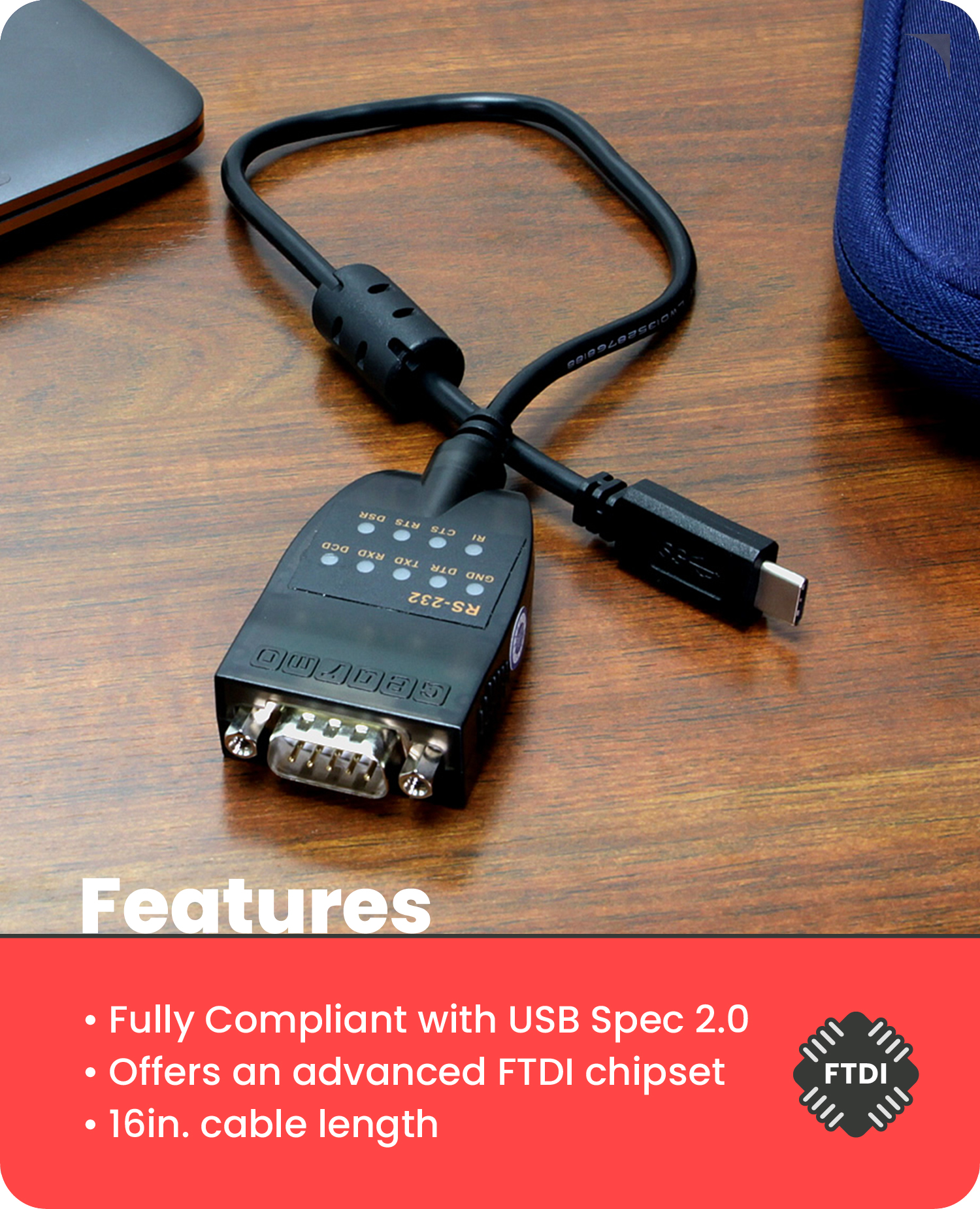

This NEW 16 inch USB C to Serial RS232 adapter uses the new type-C USB connector technology for easy, reversible connections. The same great tool of choice when supporting serial peripherals in newer computers without serial support with a C port host. Supported by Windows 11, this is an ideal solution for serial device support.



  • Ferrite ring for noise reduction
  • USB Type-C reversible connector
  • Full compliance with USB 2.0/1.1
  • Supports Windows 7, 8, 10, and 11, Linux, OSX

Product Documents

In stock

Purchase from Retailer

Model #: GM-FTDI2-LED16-C Categories: , , , , , , Tags: ,

Didn't Find What You Were Looking For? Support

Description


This 16 inch USB C serial device is a USB C to RS-232 serial adapter compliant with USB 2.0 specifications, used to easily add a serial port to your computer, even if they are unequipped with COM port ability. Works with Windows 11 and lower!

The GM-FTDI2-LED16-C supports peripherals requiring a serial RS-232 connection through a USB C type host port of your Laptop or Desktop computer. The 16 inch USB C to serial adapter allows you to add a single serial port and monitor the status of your connections by using LED activity flashes.

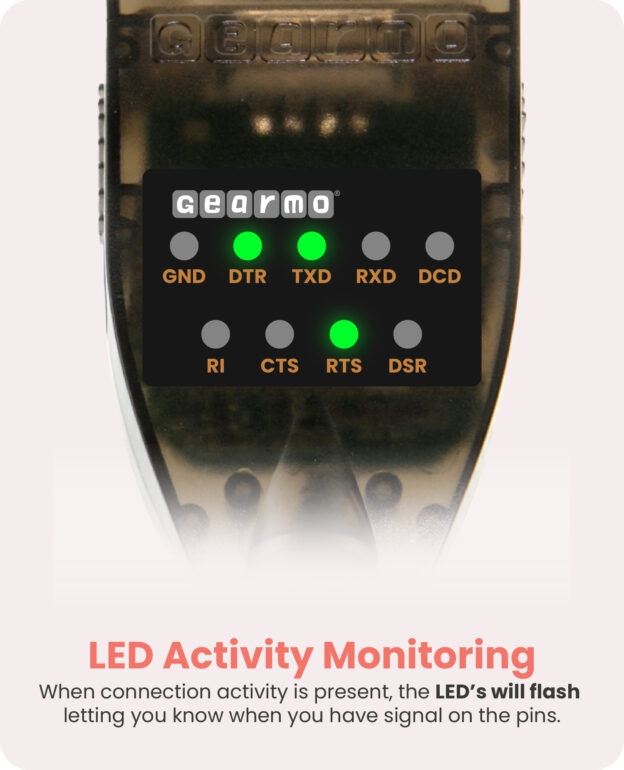

LED indicators on USB FTDI Serial Adapter When connection activity is present, the LED’s will flash letting you know you have signal on the pins. The GM-FTDI2-LED-C offers an advanced an FTDI Chipset supported by Windows 11. The device is powered individually by the USB 2.0 Type-C port and is easy to install with Plug & Play, it easily tests RS-232 Host to Device link with backward compatibility with USB Spec 1.1.

Device Support:

  • Supports reversible USB type-C connection only, can not be connected to any other USB port.
  • PDA RS-232 Port support 56K Modem support Serial Mouse support+ Serial PC camera support.
  • Fully compliant with USB Spec 2.0 Compliant USB Spec1.1.
  • RS-232 – DB9 / M Data rate : Over 1000kbps.
  • ESD Protection for RS-232 I/O’ +-15KV RS-232 for DTE Mode

We’ve written a blog post on Serial Driver Support including information on Windows Operating System life cycle.


Additional Features & Specifications:
LED Color:

  • 1~4, 6~9 PIN Signal 0 : Green / Signal 1 : RED GND – RED – POWER PS. DB9-F PIN / 1,2,6,8,9 NO Input LED no light
  • DCD , RXD, TXD, DTR , GND,DSR ,RTS ,CTS , RI
  • Easy test RS-232 Host to Device link
  • Supports USB C port connection

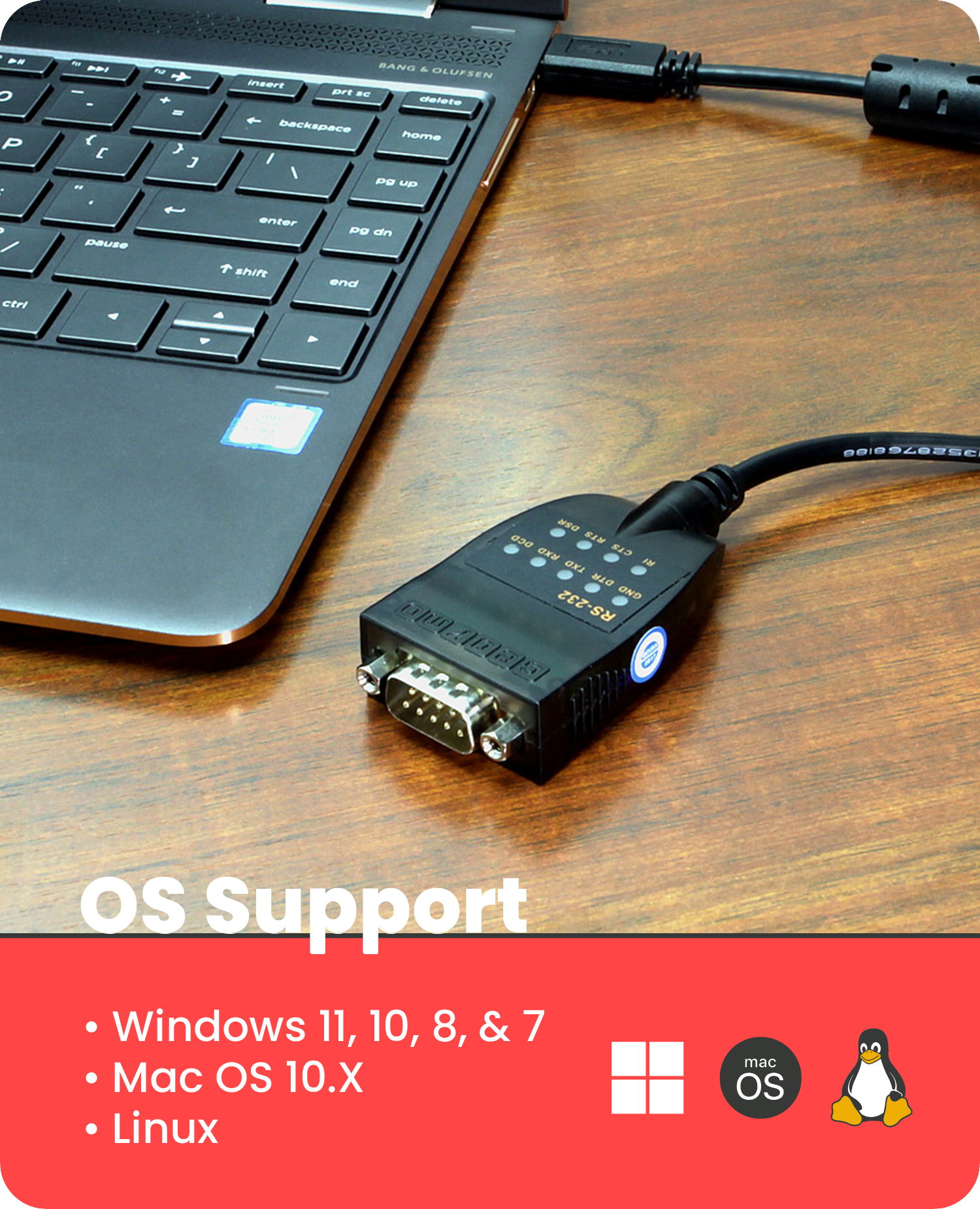

OS Support:

  • Windows 7, 8, 10, and Windows 11
  • Linux, Mac OS 10.X

DB-9 Pin Assignment
Pin Data Type Input/Output LED Color
1 IN Data Carrier Detect (DCD) Green
2 IN Receive Data Receive (RXD) None
3 OUT Transmit Data (TXD) Green
4 OUT Data Terminal Ready (DTR) Green
5 GND Ground Wire Red
6 IN Data Set Ready (DSR) None
7 OUT Request Send (RTS) Green
8 IN Clear Send (CTS) None
9 IN Ringing Indicator (RI) None

Package Contents:

  • 16 inch USB C to RS232 Serial Adapter with LED’s
  • Latest FTDI Driver (available for download)
  • GM-FTDI2-LED16-C Product Manual (available for download)

Additional information

Weight 0.187 lbs
Dimensions 8.250 × 6.000 × 0.750 in
Color

Black

Material

Plastic

Supported OS

, , , , ,

Cable Length

UPC

045079159051

Interface

USB C to RS232

Warranty

1 year from date of purchase.

Tech Note

The USB C connector can only be used in a USB Type-C port, it is not compatible with standard USB ports.

Download page contains a special note with regard to driver install.

Drivers & Manuals

1 review for USB-C 2.0 to Serial RS-232 16 Inch Adapter w/ LED Indicators

  1. Aeroadjuster

    It Works!
    Needed this device to set up my WinLink station, computer to TNC. Works great.
