4-Port USB 3.2 Gen 1 Industrial Metal Hub w/15KV ESD Protection

The GM-HU34DW-BRKT Gearmo USB 3.2 Gen 1 hub is an industrial metal hub with 4 downstream USB Type-A ports! All ports, both downstream and upstream are conveniently located on the front facing panel along with the Terminal and barrel power connections. The GM-HU34DW-BRKT USB 3.2 Gen 1 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 1 standards, data speeds up to 5Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.

Gearmo USB 3.2 Gen 1 Prosumer Hub Features

• Compliant with Universal Serial Bus 3.2 Gen 1 Specifications
• Industrial-grade, rugged metal housing design
• Redundant 9-24V DC power input
• 15KV ESD USB Interface protection
• Power input surge protection to 600W for each port
• Over-current detection and protection circuit design
• Wall and DIN Rail mount support
• Item Dimensions: 116(L) x 53(W) x 26mm(H)
• Item Weight: 7.4 oz (.46 lbs)
• Approvals: CE, FCC, REACH, RoHS

Operating system support

• Windows XP, Windows 7, Windows 8, Windows 10, Windows 11
• Mac OS X
• Linux

In the Box

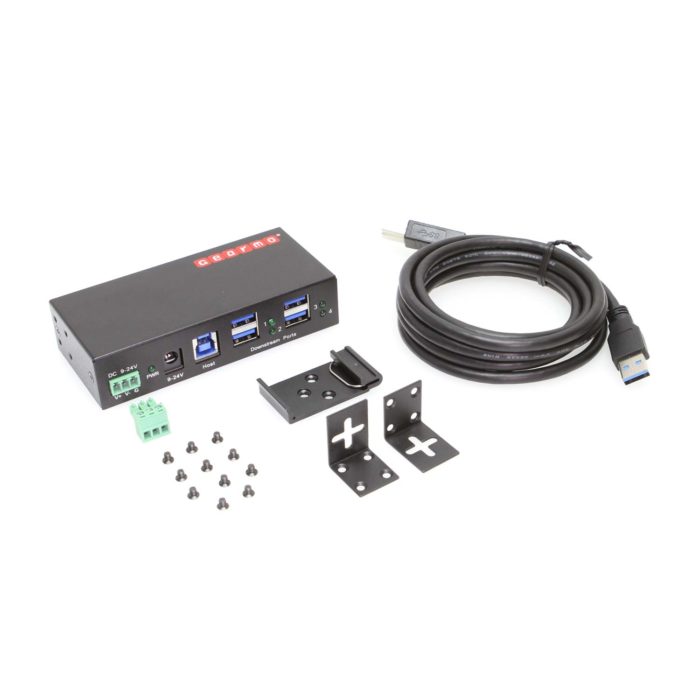

• Gearmo USB 3.2 Gen 1 industrial 4 Port Hub
• DIN Rail Clip
• Surface Mounting Brackets
• Mounting screws
• 3-pin Terminal power connector
• 6ft. USB 3.2 Gen 1 A to B cable

NOTE: This product DOES NOT include a power supply. The version with a power supply is Model No. GM-HU34DW

Safety & Compliance Certifications

The GM-HU34DW-BRKT has been rigorously tested to meet the highest international safety standards. Our comprehensive testing ensures you can rely on the device in even the most demanding automotive, industrial, and commercial applications.

Standard	Status	Remarks
*	✓ Compliant	EN 55032:2015+A1:2020, EN 55035:2017+A11:2020
*	✓ Compliant	FCC 47 CFR Part 15 Subpart B
	✓ Compliant	EC/1907/2006 – 250 SVHC List 06/25/2025
	✓ Compliant	Conforms to RoHS Legislation 2011/65/EU + (EU) 2015/863

*Passing a test report does not constitute certification, listing, or product registration. Test Report Available – Certification Required for End Product
