USB to TTL 232R FTDI 3.3V Serial Converter Cable 6Pin Header



Model #: U232R3V3-TTL Category:

Didn't Find What You Were Looking For? Support

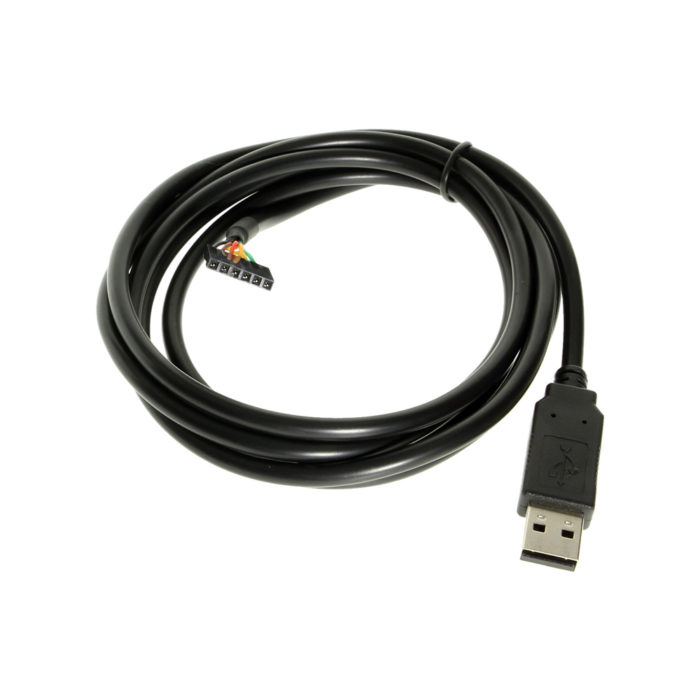

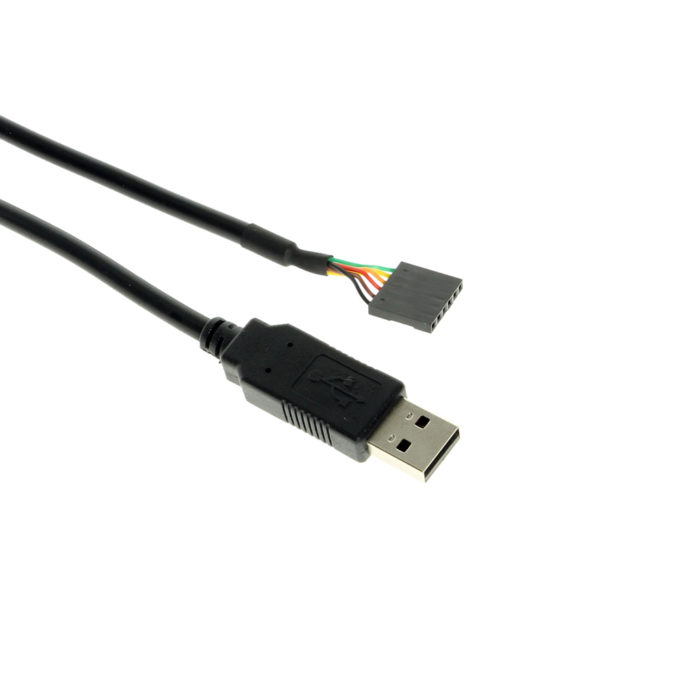

USB to TTL converter cable with 6-Pin Header

USB to TTL converter cable with a 6-pin header connector incorporates FTDI’s FT232RQ chip handling all signaling and protocols.

The cables interface provides a simple and fast way to connector to devices with TTL level serial interfaces.

The converter cable’s electronics are molded into the USB end of the cable providing baud rate speeds from 300 baud to 3M baud and 3.3 volts power.

3.3V USB to TTL Features

  • Incorporates FTDI FT232RQ chip set
  • 6ft. long cable length
  • USB 2.0 compliant enabling 300 baud up to 3M baud
  • 6-pin header connector providing 3.3 volts of power

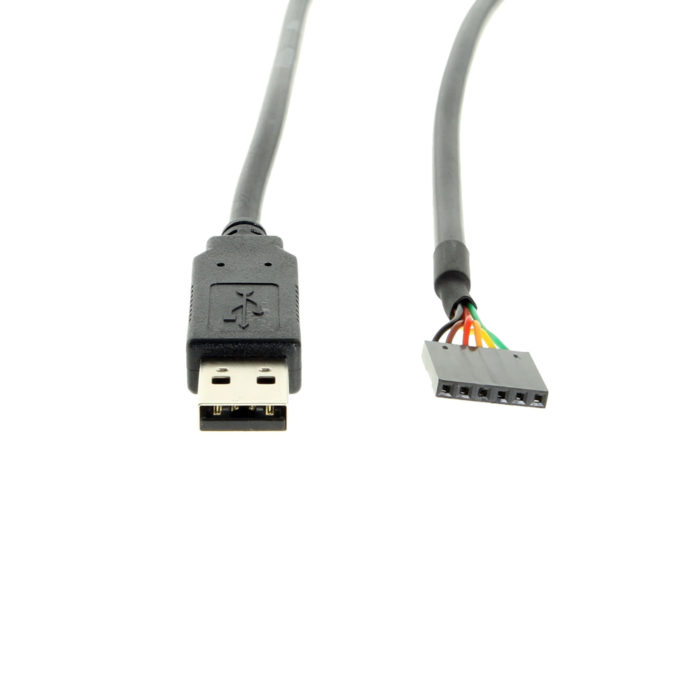

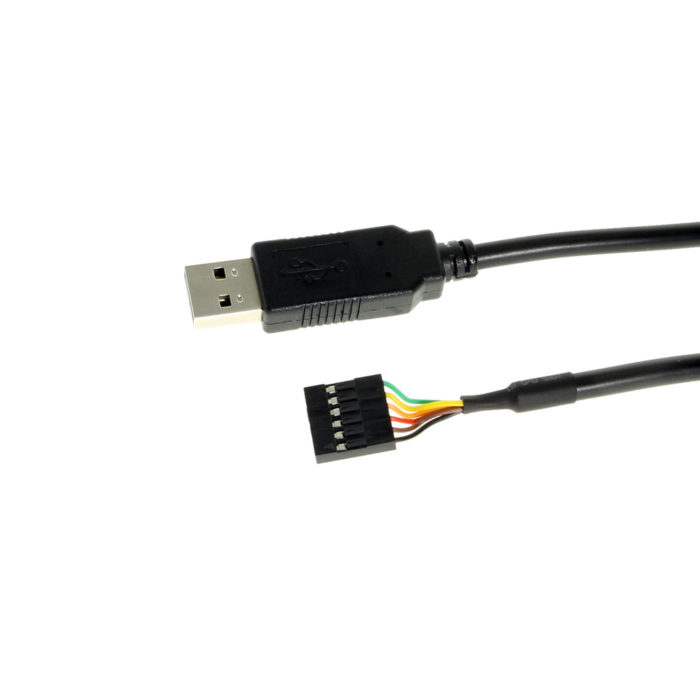

  • Provides standard TTL pin out: GND (Blk/1), CTS (Brown/2), VCC(red/3), TXD (orange/4), RXD (yellow/5),RTS (Green/6)

Additional information

Weight 0.162 lbs
Dimensions 7.000 × 4.750 × .750 in
Cable Length
