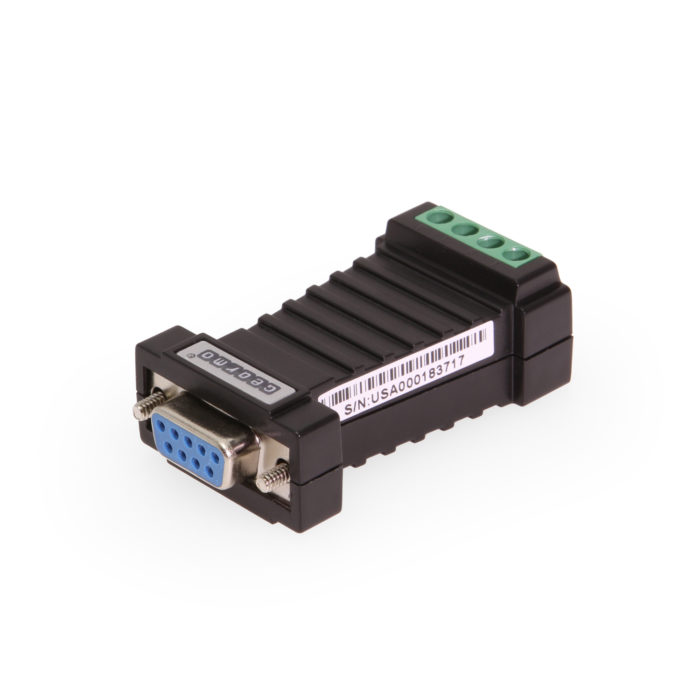

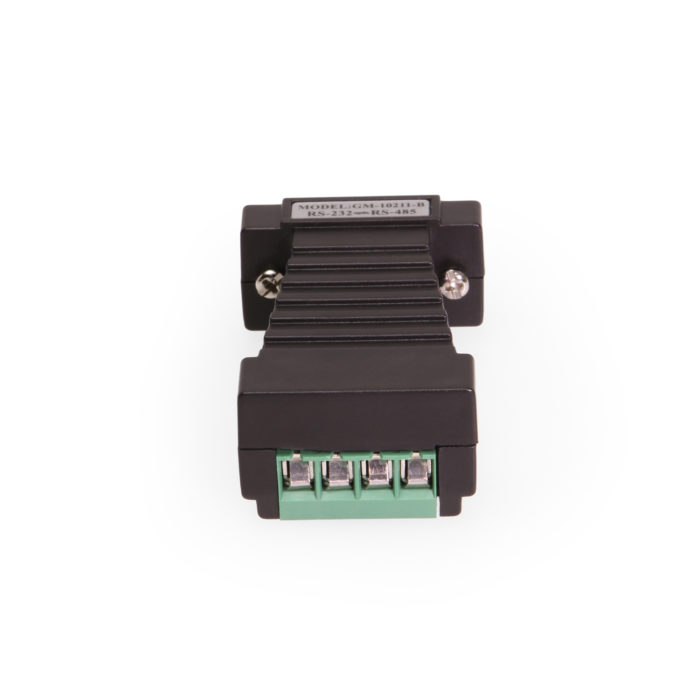

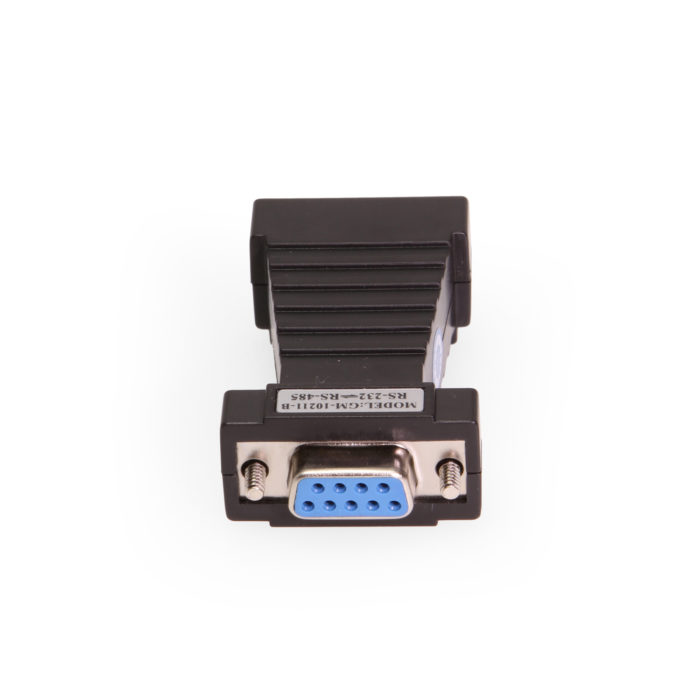

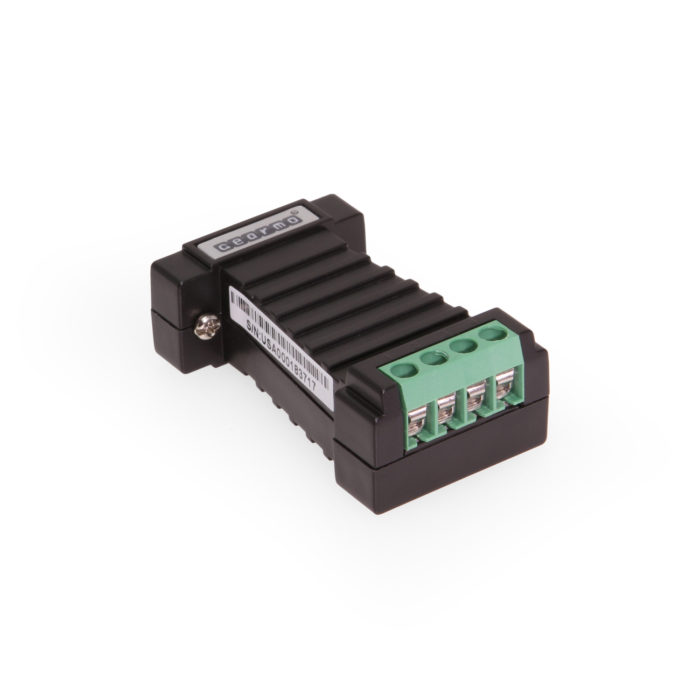

Mini RS-232 to RS-485 Converter

$12.99

The converter is compatible with RS-232C and RS-485 standards. It converts RS-232 signals into balanced differential RS-485 signals.

  • Standards: RS-232C,RS-485 EIA/TIA
  • Built in terminal block
  • Baud rate: 300BPS-115.2KBPS
  • Transmission distance: 1,200m(RS-485), 5m(RS-232)

In stock

Model #: GM-10211-B Categories: ,

Description

GM-10211-B converter is compatible with RS-232C and RS-485 standards. It converts RS-232 signals into balanced differential RS-485 signals. The transmission distance of an RS-232 communication can be extended to 1.2km. It adopts unique “RS-232” signals to drive the system and gains power without initializing the RS-232 serial port. Built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); this guarantees that there is no need to modify the programming under RS-232 half-duplex mode, it will run smoothly under current software and hardware. The transmission rate is 300-115.2kbps. It can be used between hosts, host and SCM, which building a point to point, point to multipoint long-distance communication networking. It is widely applied in an industrial automation control system, all-in-one card, access control systems, parking systems, ATM systems, bus charging systems, canteen ticketing systems, attendance systems, and toll station systems, etc.



Features:

  • Standards: RS-232C,RS-485 EIA/TIA
  • Connector: RS-232 DB9 female, RS-485 terminal block
  • Operating mode: asynchronous half-duplex, differential transmission
  • Transmission media: twisted-pair or shielded wire
  • Baud rate: 300BPS-115.2KBPS
  • Transmission distance: 1,200m(RS-485), 5m(RS-232)
  • Working temperature: -25℃ to 70℃
  • Relative humidity: 5% to 95%

Additional information

Weight 0.0625 lbs
Dimensions 7.6585 × 5.7620 in
UPC

045079162594

Color

Black

Material

Plastic

Item Dimensions

2.283 × 1.299 × 0.768 in.
