RS-232 Optical Isolated Line Booster 2,500Vrms

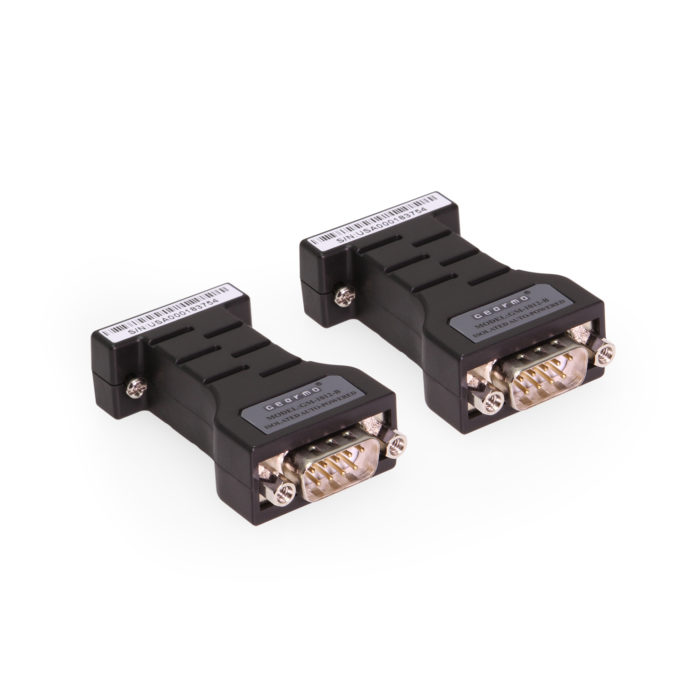

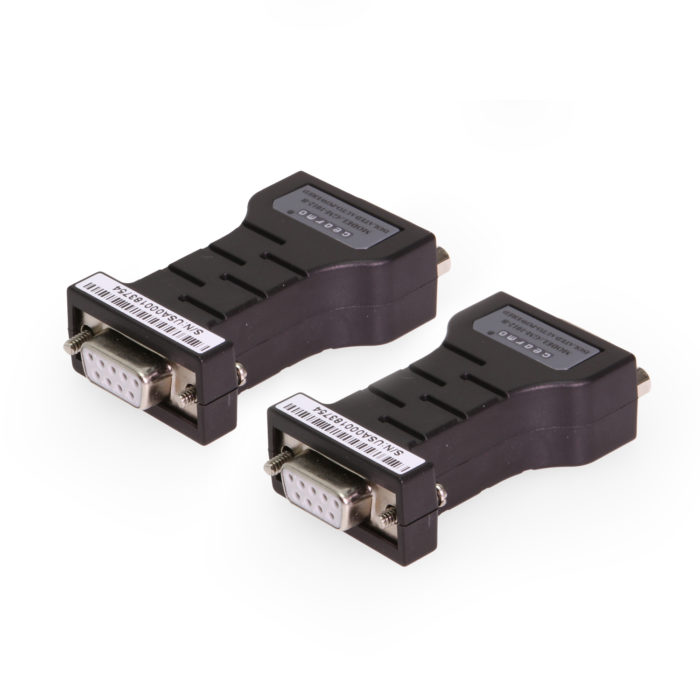

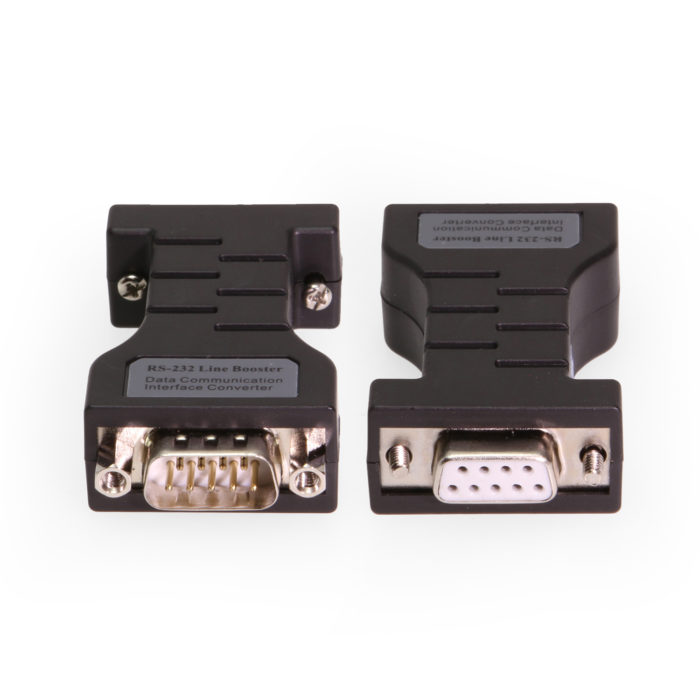

The GM-1012-B RS-232 extender with optoelectronic isolation allows extending the communication distance between 2 sets of asynchronous RS-232 communication devices to 12km. The optoelectronic isolation technology fully isolated the loop circuit between electric part and ground wire; this protects the communication devices from interference of power and ground loop circuit, surge. It changes the single port transmission into dual wire balance transmission, which increases the communication distance. The GM-1012-B is in mini size, there are no special requirement on the wire, and no need for external power; it is convenient to use. The GM-1012-B is widely used in point to point RS-232 communication, the connection between multi users terminal and host, RS-232 long distance control system, SPC exchange billing terminal, satellite receiver.

Features:

• Enables RS-232 transmission distance to 12km
• Balance current transmission, strong antijamming
• Adopts optical isolation, avoid GND circuit surge
• Isolated voltage: 2,500Vrms impulse or 500VDC
• Supports RS-232 asynchronous communication standard
• Plug & play, easy to use
• No need external power
• Use special communication cable or normal cable
• Baudrate: 57.6kbps
• Full-duplex or half-duplex, small size

OS Independent
Works with any operating system including:

• Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11
• Mac OS X
• Linux
